16
FORT
CORNER POSTS
FORT
CORNER POSTS
Flush

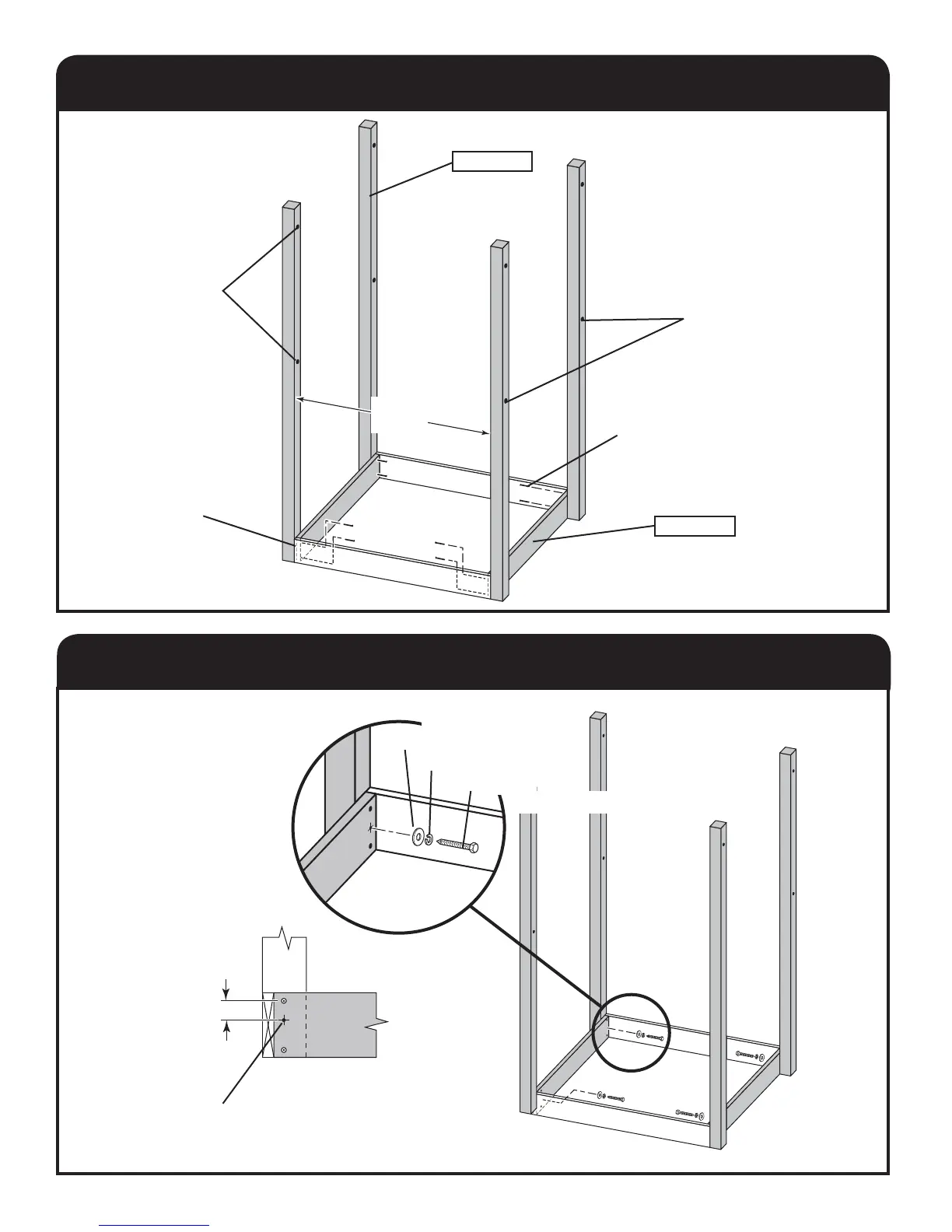

Mark and Pre-Drill 1/4” hole x 2” DEEP,
one inch (1”) below upper screw.
Do not drill through corner post.
x4
2321-MS
3 x 3 x 84”
Flat Washer
Lock Washer
3-1/2” Lag Bolt
x4
3” Screws x8
45-1/8"
Inside
1216-MS
5/4 x 6 x 43-1/8”
1”
Note hole location.
Note hole location.
DO NOT OVER-TIGHTEN LAG BOLTS
