YASKAWA CDBR-2015B User Manual

2 INSTALLATION
25
2.3 REPLACEMENT OF CONVENTIONAL BRAKING
UNITS WITH NEW UNITS
To replace conventional braking units (models CDBR-2015, -2022, -4030, -4045)
with new units (CDBR-2015B, -2015C, -2022B, -2022C, -4030B, -4045B), an
exclusive-use attachment is required. Contact your YASKAWA representative.

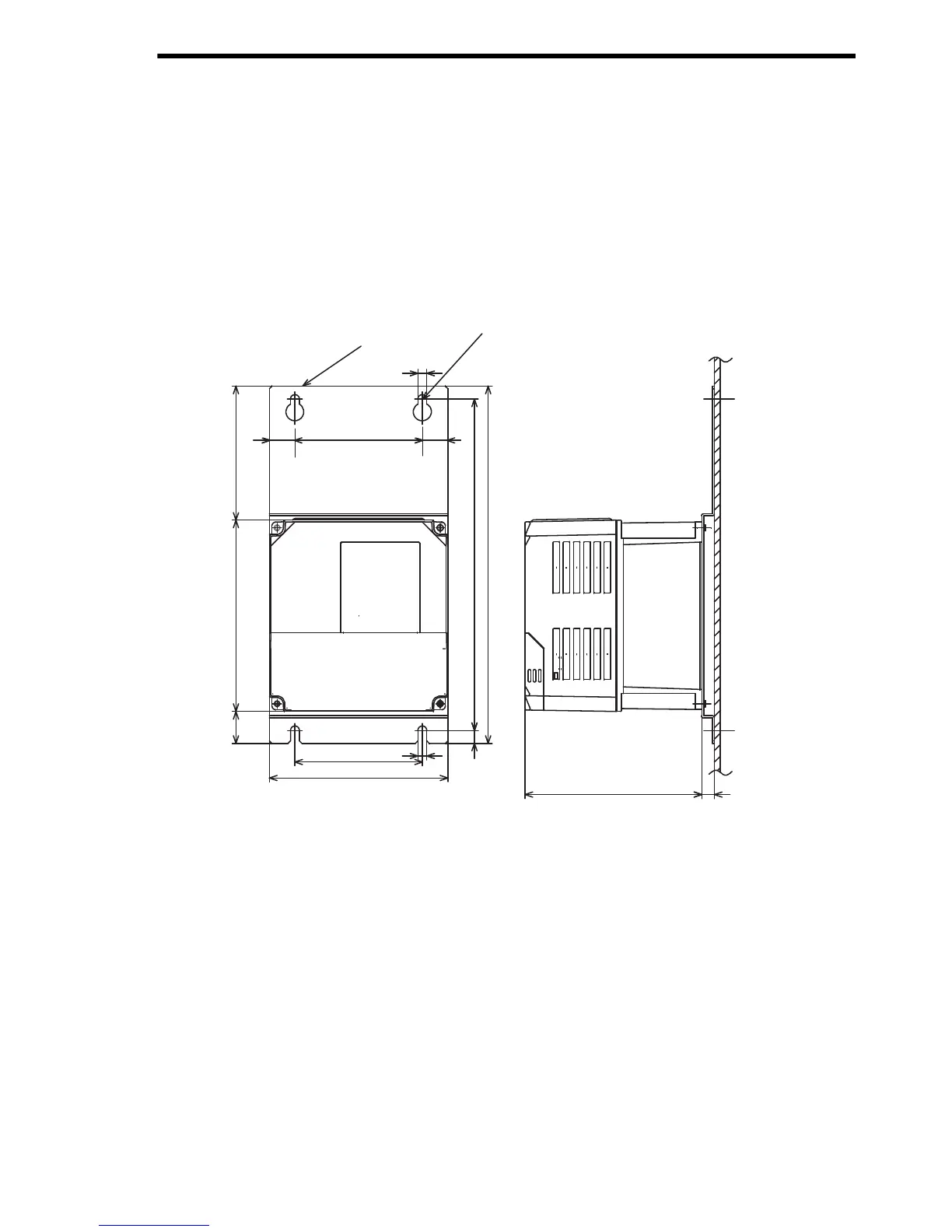

Fig. 9 Mounting Dimensions of Attachment in inches (mm)
0.39
(10)
0.28(7)
3.94 (100)
11.02 (280)
5.51 (140)
10.24 (260)
ATTACHMENT
5.45 (138.5)
0.39 (10)
0.98 (25)
5.91 (150)
4.13 (105)
4−M6 MTG HOLE
Code No.: DACT32732−AD
3.94 (100)
0.79
(20)
0.28(7)
0.79
(20)
