Yealink MVC840 Deployment Guide

| Deployment and Connection | 45
• VCM34 supports 360-degree audio pickup at a radius of up to 20ft/6m and you can cascade up to 4
VCM34 units.

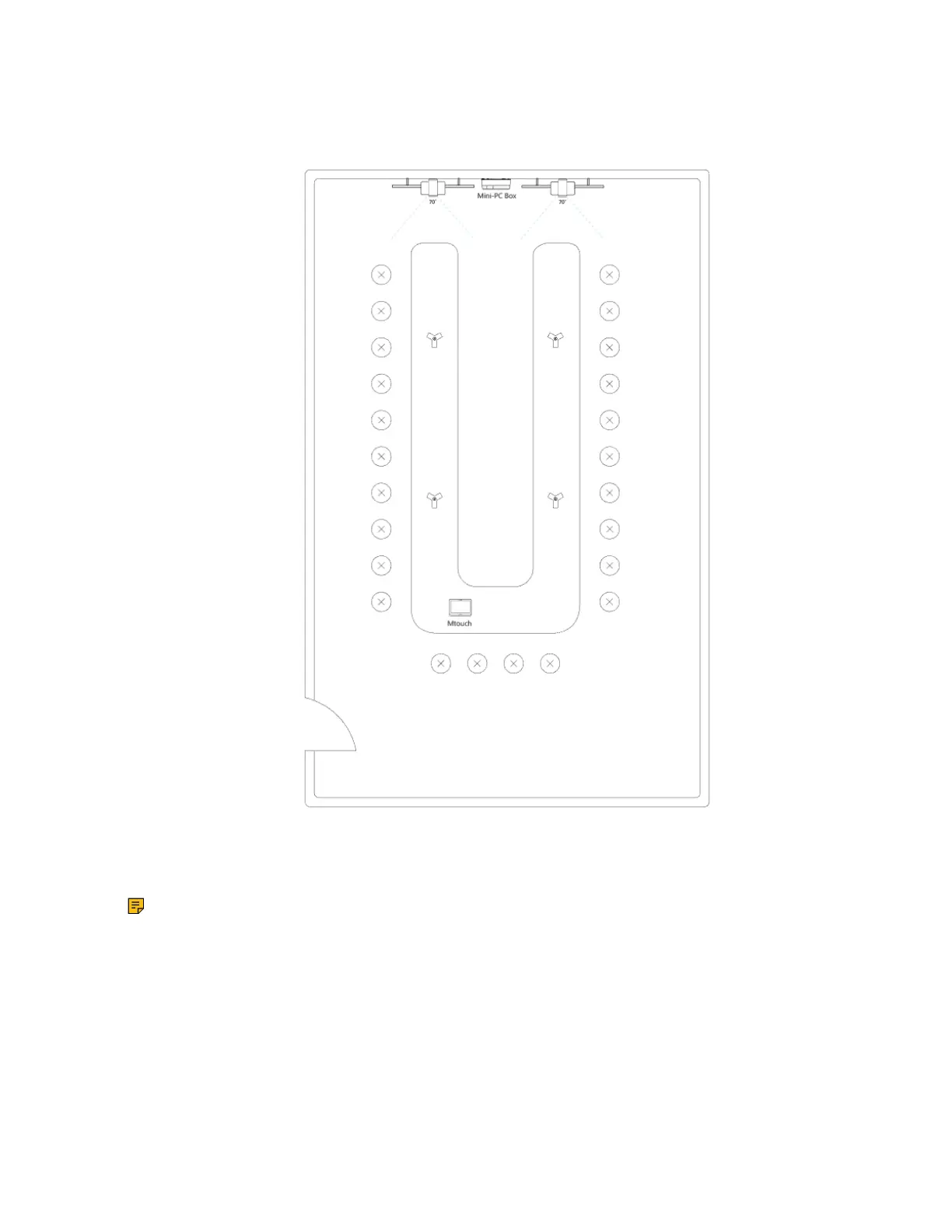

For extra-large meeting room (18-30 people)
• The distance between the two VCM34s on both sides is 10ft/3m.
• VCM34 supports 360-degree audio pickup at a radius of up to 20ft/6m and you can cascade up to 4
VCM34 units.
Note: The MTouch needs to be placed in a position facing the door.
Camera Installation
You can mount UVC84 on a flat surface, on the top of the TV, on the wall or onto a TV stand.
You can mount the UVC80/UVC50 on the top of the TV, on the wall, on the ceiling, or onto a TV Stand or a
Tripod.
You can mount UVC40 on a flat surface or on the wall.
You can mount the UVC30 on the top of the TV, on the wall, or onto a TV Stand or a Tripod.
The installation methods are as follows:

Yealink MVC840 Specifications

General

Bluetooth	Yes
Pan range	0 - 200 °
Product type	Group video conferencing system
Product color	Black, Grey
Tilt angle range	0 - 130 °
Number of cameras	1
Number of persons	- person(s)
Number of microphone arrays	3
Megapixel	- MP
Camera type	Single camera
Sensor type	-
Image sensor size	- \
Diagonal field of view	80 °
Vertical field of view	130 °
Horizontal field of view	200 °
Optical zoom (normal mode)	12 x
USB connector type	USB Type-B
HDMI output ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
Maximum frame rate	30 fps
Display diagonal	8 \
Touchscreen type	Capacitive
Display resolution	1280 x 800 pixels
Internal memory	8000 MB
Storage media type	SSD
Total storage capacity	128 GB
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Processor family	Intel® Core™ i5
Computer system type	Mini PC
Operating system installed	Windows 10 IoT
Harmonized System (HS) code	85176990
