Yealink SIP-T40P User Manual

Advanced Phone Features
157
The Cancel, CallPull, NewCall and BargeIn soft keys appear on the LCD screen of phone
B.
2. Press the CallPull soft key.
The active call has been retrieved from the phone A successfully.
If there is a held call between phone A and phone C, do the following:
1. Long press the desired line key on phone B.

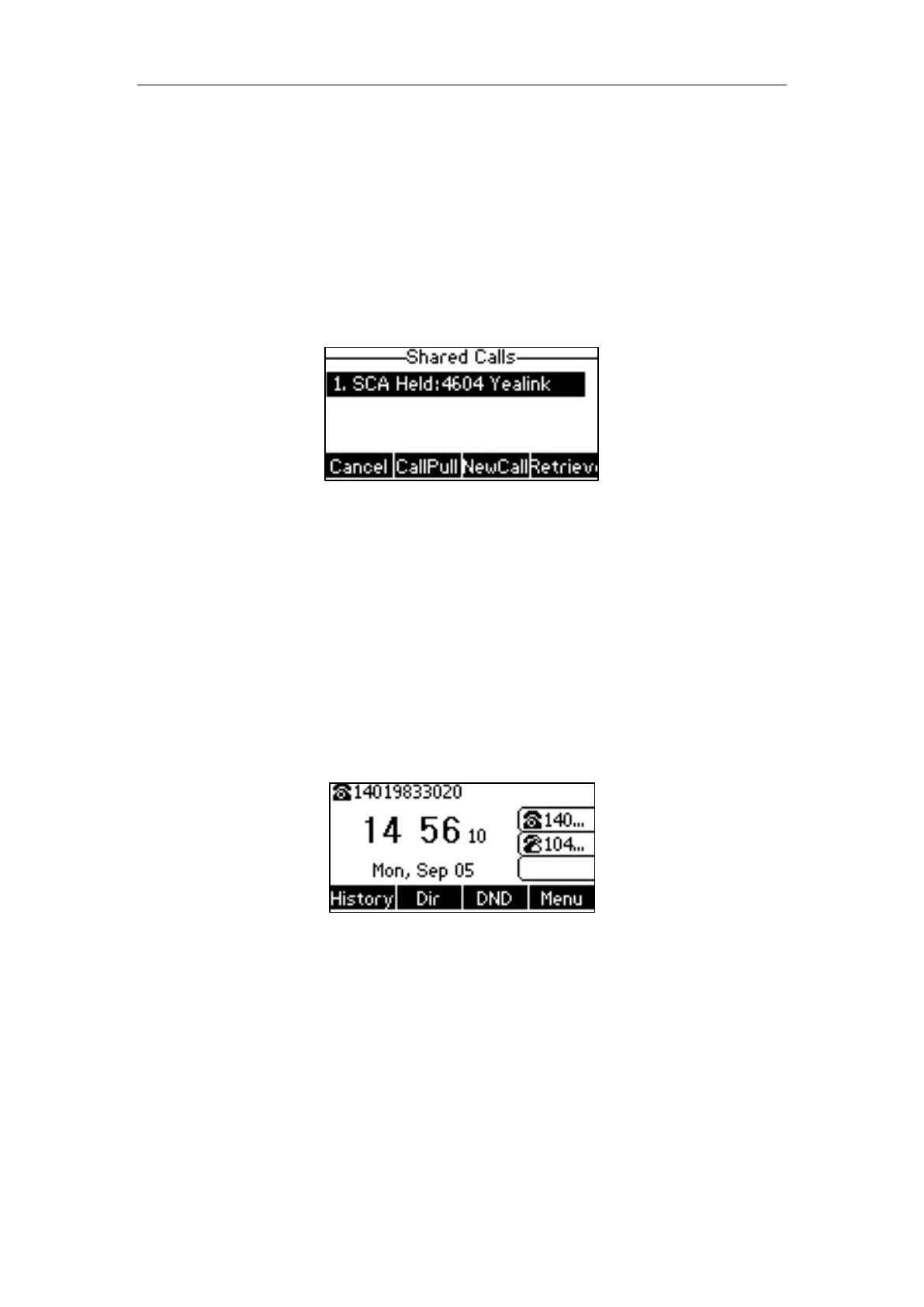

The Cancel, CallPull, NewCall and Retrieve soft keys appear on the LCD screen of phone
B.
2. Press the CallPull soft key.
The held call has been retrieved from the phone A successfully.
Bridged Line Appearance (BLA)
BLA allows users to share a SIP line on two or more IP phones. Users can monitor the specific
extension (BLA number) for status changes on each IP phone. To use this feature, a BLA group
should be pre-configured on the server and one of them is specified as a BLA number. BLA
depends on support from a SIP server.
In the following figure, the first line is private and the second line is shared:
Any IP phone can be used to originate or receive calls on the bridged line. An incoming call to
the BLA number can be presented to multiple phones in the group simultaneously. The
incoming call can be answered on any IP phone of the group but not all.

Yealink SIP-T40P Specifications

General

Wi-Fi	No
Quality of Service (QoS) support	Yes
Operating temperature (T-T)	-10 - 50 °C
Operating relative humidity (H-H)	10 - 95 %
AC adapter input voltage	100 - 240 V
AC adapter output current	0.6 A
Power consumption (typical)	3.23 W
Battery voltage	5 V
RJ-11 ports quantity	1
Ethernet LAN (RJ-45) ports	2
Display diagonal	2.3 \
Display resolution	132 x 64 pixels
Lines quantity	- lines
Phonebook capacity	1000 entries
Number of VoIP accounts	3
Mounting	Desk/Wall
Handset type	Wired handset
Product type	IP Phone
Product color	Black
Voice codecs	G.711, G.722, G.726, G.729A, G.729B
Number of handles included	1 pc(s)

Weight and Dimensions

Depth	189 mm
Width	212 mm
Height	175 mm
Package depth	256 mm
Package width	620 mm
Package height	233 mm
Package weight	6400 g
