Yealink SIP-T48S User Manual

Advanced Phone Features
209

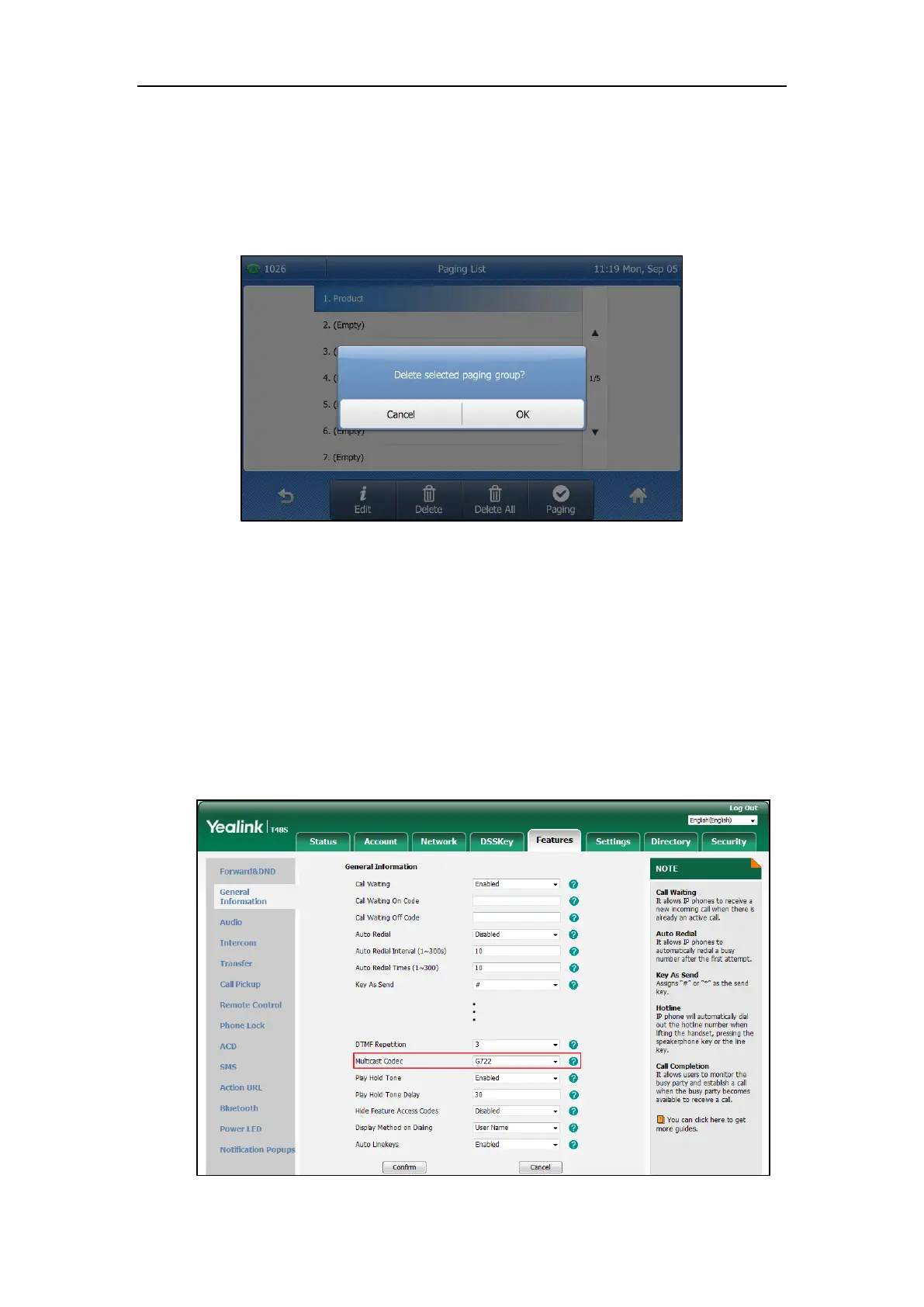

To delete a paging group via phone user interface:
1. Tap the paging list key when the phone is idle.
2. Tap a desired paging group.
3. Tap the Delete soft key.
4. Tap OK to accept the change or Cancel to cancel.
If you want to delete all paging groups, you can tap the Delete All soft key.
You can also configure the phone to use a default codec for sending multicast RTP stream via
web user interface.
To configure a default codec for multicast paging via web user interface:
1. Click on Features->General Information.
2. Select the desired codec from the pull-down list of Multicast Codec.
The default codec is G722.

Yealink SIP-T48S Specifications

General

Mounting	Desk/Wall
Handset type	Wired handset
Product type	IP Phone
Product color	Black
Keypad illumination	Yes
Display diagonal	7 \
Display resolution	800 x 480 pixels
AC adapter input voltage	100 - 240 V
AC adapter output current	2 A
AC adapter output voltage	5 V
USB 2.0 ports quantity	1
Ethernet LAN (RJ-45) ports	2
Front camera	No
Voice codecs	CNG, G.711Mu, G.711a, G.722, G.723.1, G.726, G.729ab, VAD, iLBC
Lines quantity	16 lines
Phonebook capacity	1000 entries
Number of VoIP accounts	16
Dual-Tone Multi-Frequency (DTMF) modes	In-band, Out-of band, SIP info
Keypad number of keys	42
Security algorithms	AES
Networking standards	IEEE 802.3af
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
Supported network protocols	SIP v1, SIP v2, LLDP/CDP/DHCP, OpenVPN, IEEE802.1X, IPv6, HTTPS
Operating temperature (T-T)	-10 - 50 °C
Operating relative humidity (H-H)	10 - 95 %
Cables included	LAN (RJ-45)
Number of handles included	1 pc(s)
Harmonized System (HS) code	85171800

Weight and Dimensions

Depth	225 mm
Width	266 mm
Height	185 mm
Package depth	263 mm
Package width	324 mm
Package height	128 mm
