Basic Operation
Panel Keys and Display

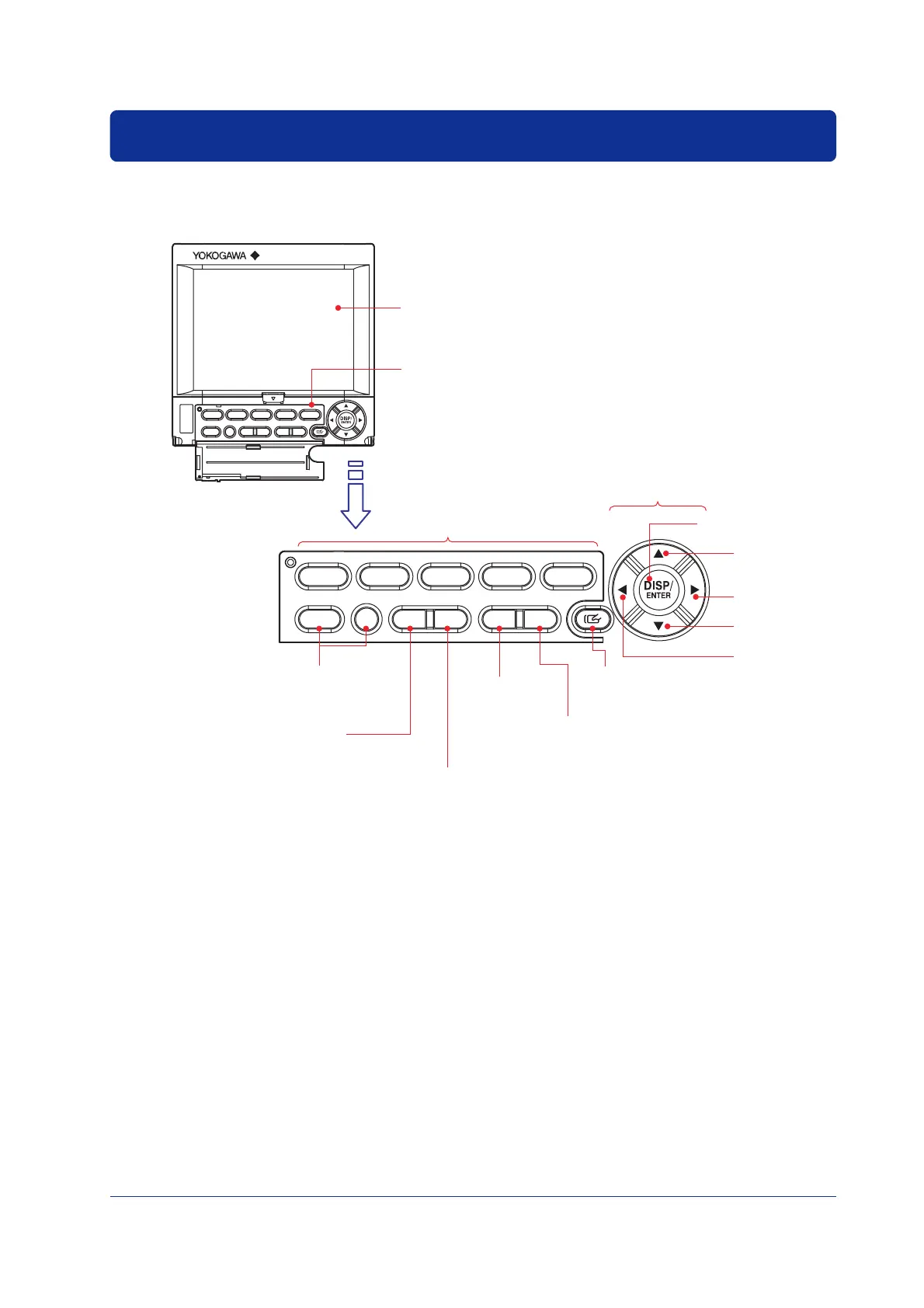

Keys
START USER FUNC ESC MENU STOP
START USER FUNC ESC MENU STOP
LCD
Key panel
Soft keys
Selects the menu that is displayed
at the bottom of the screen
START/STOP key
Memory start/stop
ESC key
Cancels an
operation
USER key
Executes the assigned
operation
Favorite key
Displays the operation screen (up to eight
screens) that are registered to the key
MENU key
Switches between the operation
mode and setting mode
FUNC key
• Displays the soft key menu in operation mode
• Hold down this key at least 3 s in the setting mode to switch from the
setting mode to the basic setting mode
DISP/ENTER key and four arrow
keys (up, down, left, and right)
Switches the operation screen.
Selects and enters setup items.
DISP/ENTER key
Up arrow key
Right arrow key
Down arrow key
Left arrow key
