1. Explosion Protection Instrumentation
1-8
TI 32S01J30-01E
Zone1 Zone2 Non-Hazardous AreaZone0
F010306E.ai
Intrinsic
safety
device
Intrinsic
safety
device
Intrinsic
safety
device
Ex "ec"
Type “n”
device
Safety
Barrier
Safety
Barrier
Safety
Barrier
*1
*1
*1
*1
*1
*1
*1
S2BN1D Base plate
*1
Flameproof
device
*1: Explosion-proof wiring that is dened in IEC/EN 60079-14 or the rules/standards of each country or region.

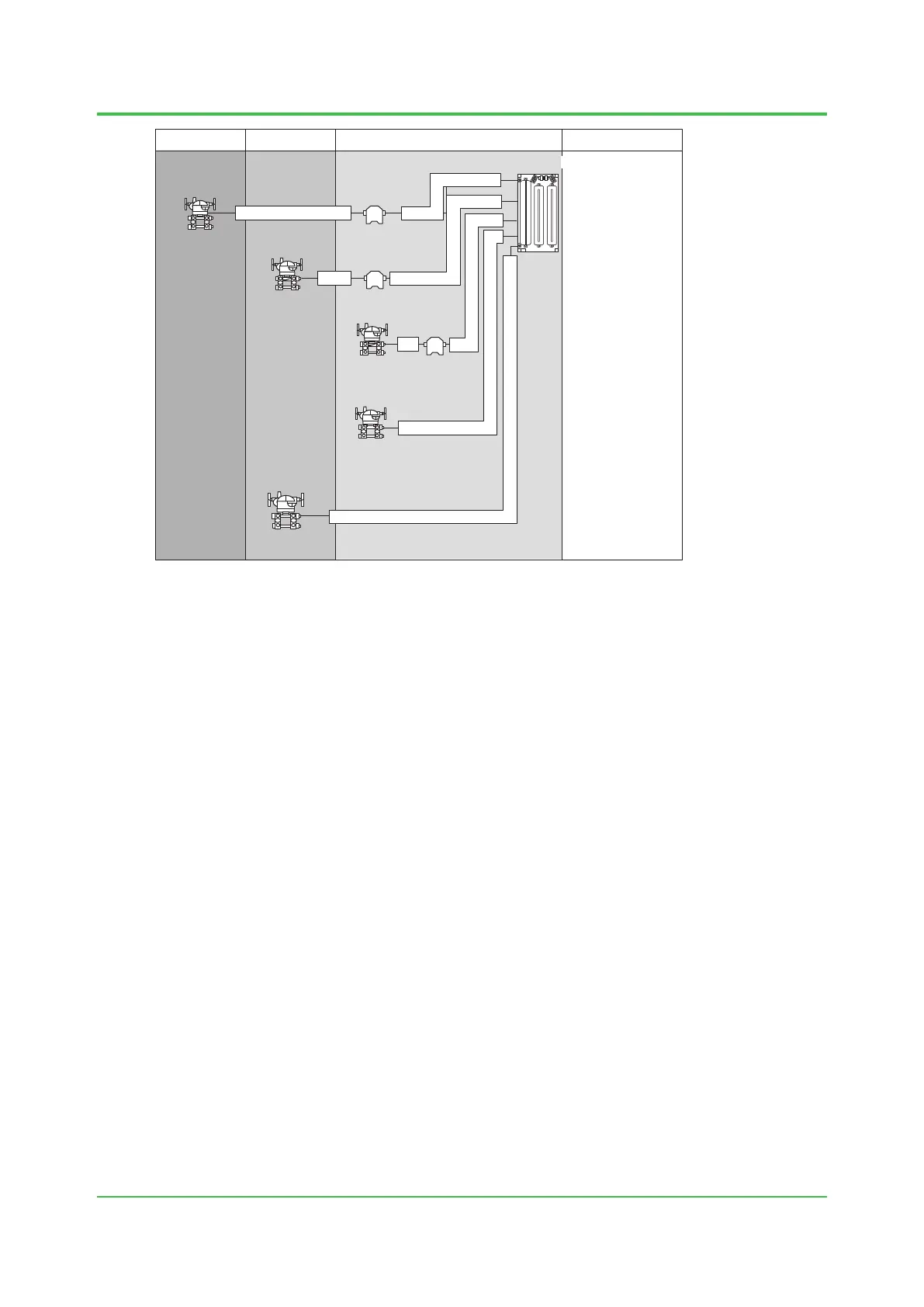

Figure Connection of S2BN1D for ATEX, IECEx, and UKEX (2)
Dec 3, 2021-00
