York Champion Series User Manual

Unitary Products Group 21
036-21311-003-A-0104
25
22
47
1
4

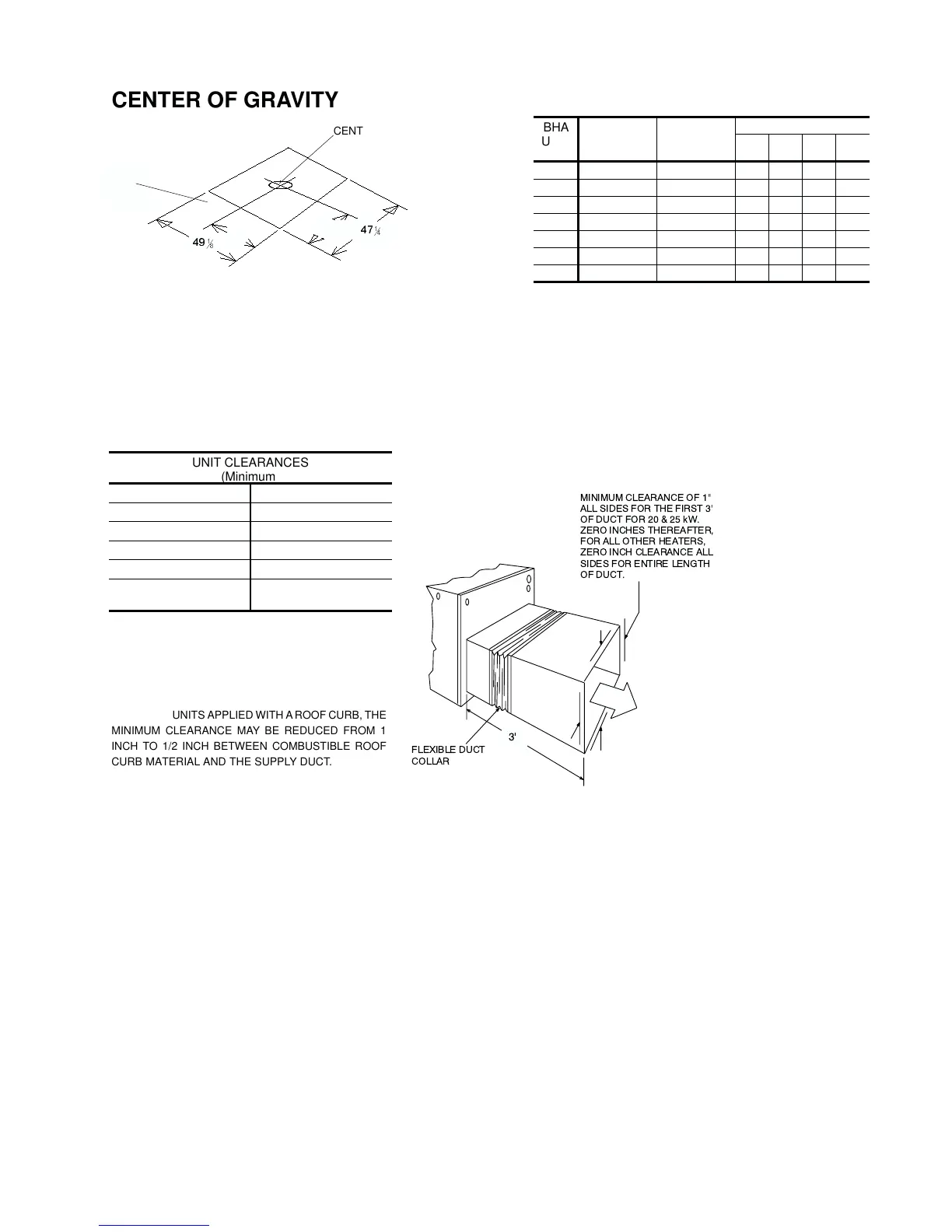

CENTER OF GRAVITY
FRONT
OF
UNIT
49
1
8
A
B
C
D
BHA
UNIT
SIZE
SHIPPING
WEIGHT
OPERATING
WEIGHT
CORNER WEIGHTS
ABCD
018 350 345 103 92 73 82
024 350 345 95 92 80 83
030 360 355 98 94 82 85
036 367 362 100 96 84 87
042 394 389 107 103 90 93
048 445 440 121 117 102 105
060 490 485 133 129 112 116
CLEARANCES
3'
MINIMUM CLEARANCE OF 1"
ALL SIDES FOR THE FIRST 3'
OF DUCT FOR 20 & 25 kW.
ZERO INCHES THEREAFTER,
FOR ALL OTHER HEATERS,
ZERO INCH CLEARANCE ALL
SIDES FOR ENTIR E LENGTH
OF DUCT.
FLEXIBLE DUCT
COLLAR
NOTE: FOR UNITS APPLIED WITH A ROOF CURB, THE
MINIMUM CLEARANCE MAY BE REDUCED FROM 1
INCH TO 1/2 INCH BETWEEN COMBUSTIBLE ROOF
CURB MATERIAL AND THE SUPPLY DUCT.
CENTER OF GRAVITY
UNIT CLEARANCES
(Minimum)
Front 12"
Back 0"
Left Side (Filter Access) 24"
Right Side 24"
Below Unit
1
0"
Above Unit
2
36" (For Condenser
Air Discharge)
1
Units may be installed on combustible floors made from wood or class A,
B or C roof covering material.
2
Units must be installed outdoors. Overhanging structures or shrubs
should not obstruct outdoor air discharge outlet.

York Champion Series Specifications

General

Series	Champion Series
Refrigerant	R-410A
Warranty	10-Year Limited Parts Warranty
Type	Heat Pump
SEER Rating	Up to 19
HSPF Rating	Up to 10
Compressor Type	Scroll
