York DC SERIES User Manual

5120410-XIM-B-0216
Johnson Controls Unitary Products 9

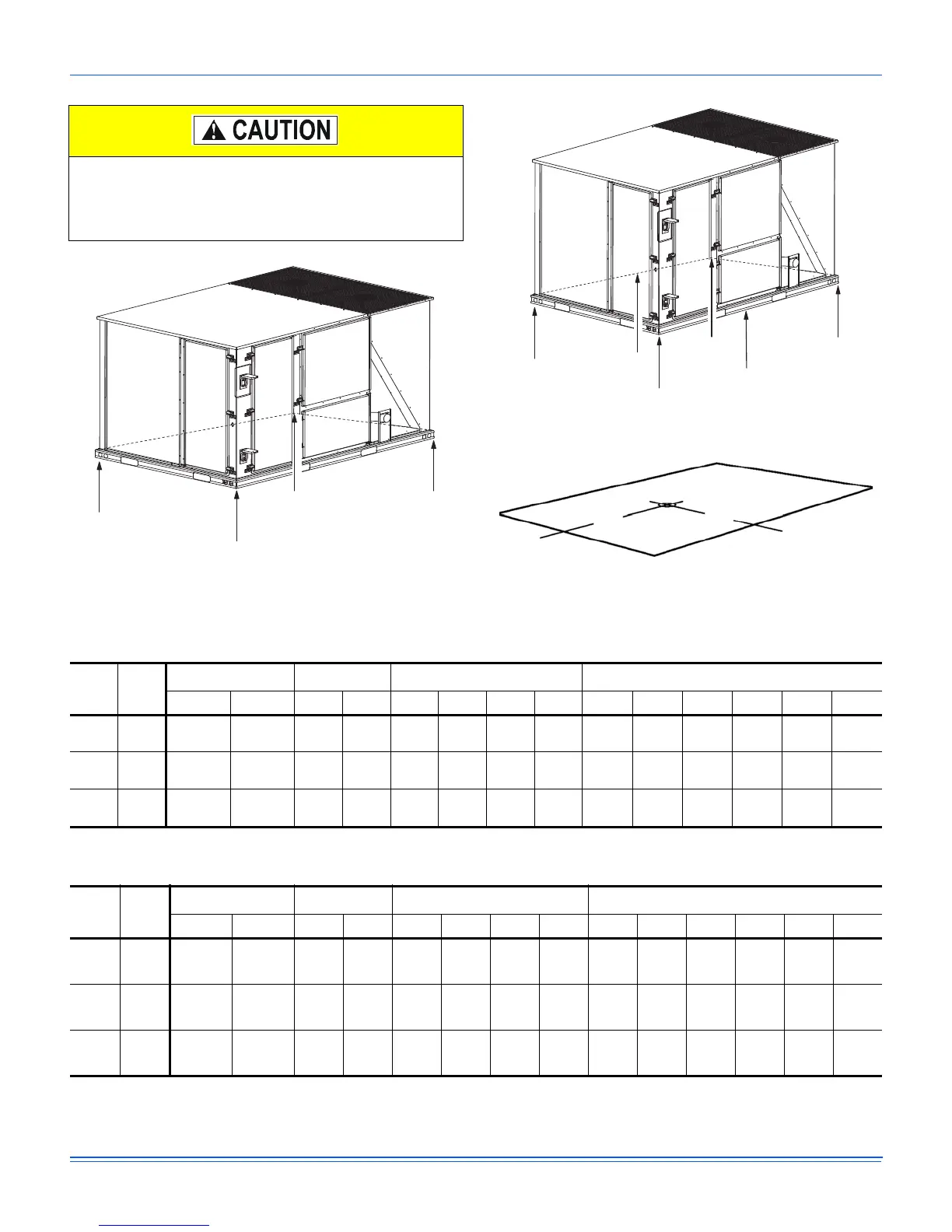

Figure 5: Unit 4 Point Load Weight
Figure 6: Unit 6 Point Load Weight
Figure 7: Center of Gravity
All panels must be secured in place when the unit is
lifted.
The condenser coils should be protected from rigging
cable damage with plywood or other suitable material.
D
A
CB
LEFT
FRONT
D
A
C
B
E
F
LEFT
FRONT
X
Y
LEFT
FRONT
Table 2: Weights and Dimensions Imperial
Size
(Tons)
Model
Weight (lbs.)
Center of
Gravity (in.)
4 Point Load Location (lbs.) 6 Point Load Location (lbs.)
ShippingOperatingXYABCDABCDEF
090
(7.5)
DC 865 860 38 23 192 143 224 301 135 110 91 142 172 211
120
(10)
DC 1143 1138 47.5 25.5 245 209 305 357 168 151 136 198 219 244
150
(12.5)
DC 1202 1197 47.5 25.5 262 224 327 386 180 161 145 212 235 262
Table 3: Weights and Dimensions Metric
Size
(KW)
Model
Weight (kg.)
Center of
Gravity (mm)
4 Point Load Location (kg.) 6 Point Load Location (kg.)
ShippingOperatingXYABCDABCDEF
090
(26)
DC 392.4 390.1 965.2 584.2 87.1 64.9 101.6 136.5 62.1 49.9 41.3 64.4 78.0 95.7
120
(35)
DC 518.6 516.3 1206.5 647.7 111.0 94.0 138.0 162.0 76.2 68.4 61.7 89.8 99.3 110.7
150
(44)
DC 545.3 543.1 1206.5 647.7 118.0 101.0 148.0 173.0 81.6 73.0 65.8 96.2 107.0 118.8
