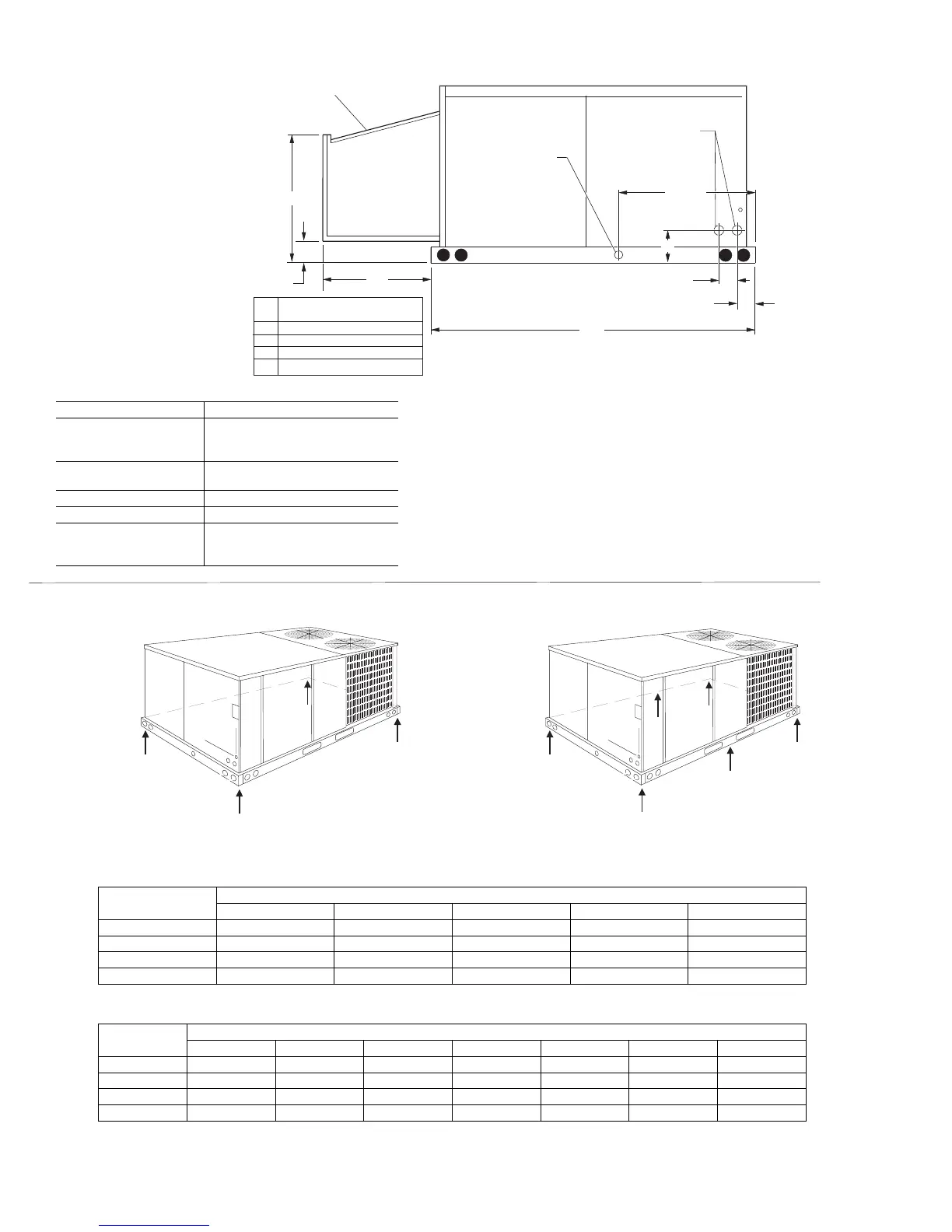

A
D
C
B
FRO N T
4 POINT LOADS
FIG. 10
- POINT LOADS
A
E
D
B
C
F
FRO NT
6 POINT LOADS
DCG
UNIT
4 - POINT LOADS (LBS)
TOTAL A B C D
090 1187 262 298 333 294
102 1202 239 292 369 302
120 1312 279 330 381 322
150 1582 323 383 475 401
DCG
UNIT
6 - POINT LOADS (LBS)
TOTAL A B C D E F
090 1187 175 198 210 222 196 186
102 1202 160 194 220 245 202 181
120 1312 186 220 237 254 215 201
150 1582 215 256 286 317 267 241
NOTE: These weights are with economizer, high heat and oversized motor.
TABLE 5
- POINT LOADS
L.H. END VIEW
3-3/4"
A
27"
3/4" CONDENSATE
DRAIN
(M UST BE TRAPPED)
7"
(B) POW ER W IRING
E N T R Y
29-5/8"
3-1/2"
4-1/2"
71"
E C O N O M IZ E R R A IN H O O D
DIM
"A "
28
31
31
24
ECONOMIZER
MOTORIZED DAM PER
M ANUAL DAM PER 0-100%
M ANUAL DAM PER 0-35%
POINT LOADS
Front 24"
Back
12" (Less Economizer)
36" (With Economizer
Outdoor Air Damper)
Left Side (Filter Access)
24" (Less Economizer)
54"
*
(With Economizer)
Right Side (Cond. Coil) 24"
Below Unit
1
20"
Above Unit
2
72" with 36" maximum
Horizontal Overhang
(For Condenser Air Discharge)
1
Locate unit so that the vent air outlet hood is at least:
•
Three (3) feet above any forced air inlet located within 10 horizontal feet (excluding those
integral to the unit).
•
Four (4) feet below, 4 horizontal feet from, or 1 foot above any door or gravity air inlet
into the building.
•
Four (4) feet from electric meters, gas meters, regulators and relief equipment.
2
Units (applicable in U.S.A. only) may be installed on combustible floors made from wood
or Class A, B or C roof covering material.
3
Units must be installed outdoors. Overhanging structures or shrubs should not obstruct
the condenser air discharge outlet.
NOTE: A 1" clearance must be provided between any combustible material and the
supply air ductwork for a distance of 3 feet from the unit.
The products of combustion must not be allowed to accumulate within a confined space
and recirculate.
*If economizer is factory installed, the assembled hood kit must be removed prior to final
installation. This hood is 54" long.
CLEARANCES
DETAIL "Y"
(Unit With Economizer
Rain Hood)
530.18-N10Y
10 Unitary Products Group
