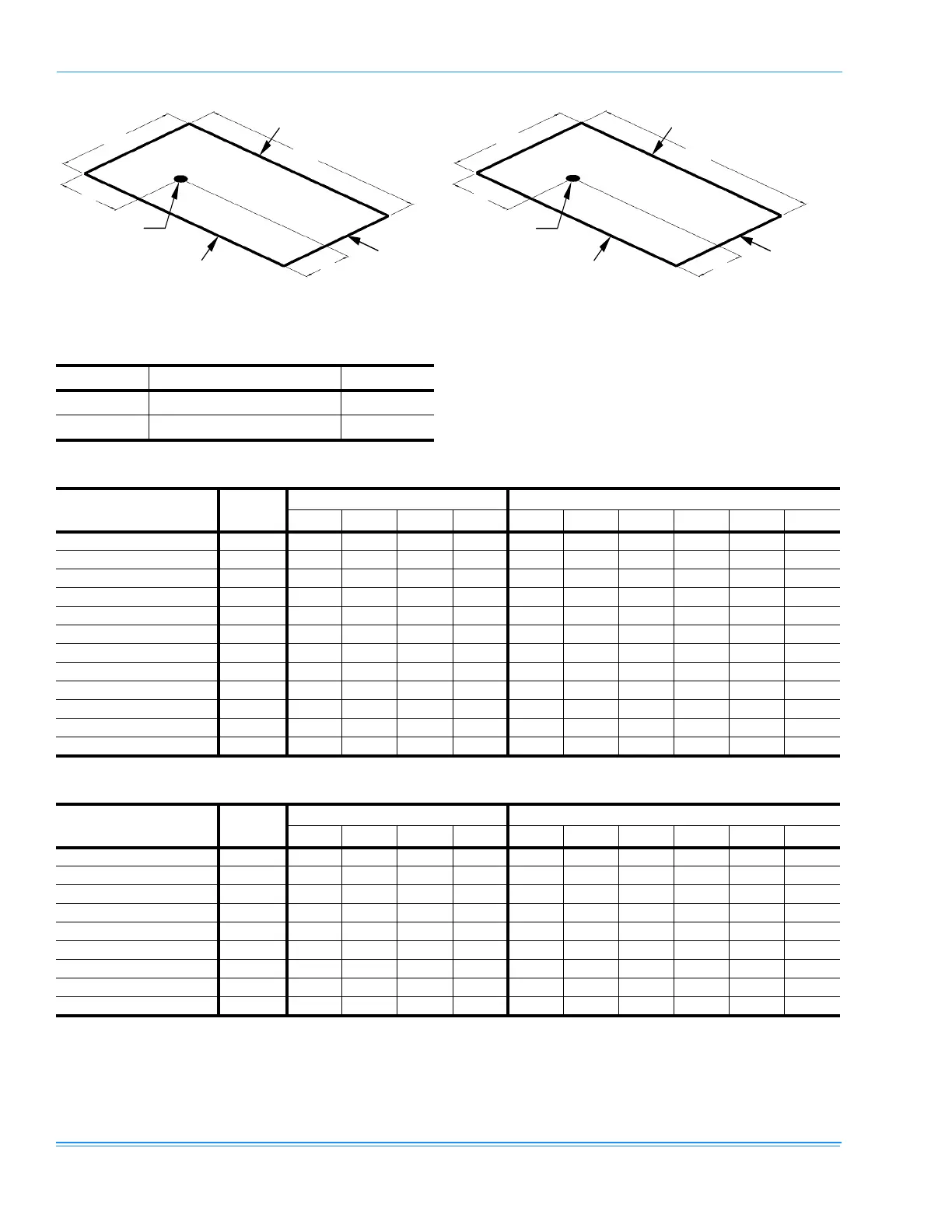

FIGURE 9 - FOUR AND SIX POINT LOADING
TABLE 6: CENTER OF GRAVITY (ALL MODELS)
DIMENSION 3 - 5 TON 6 TON
X 40-¾” 44”
Y 19-¾” 22”
44
7
/
8
82
1
/
4
Y
X
A
B
C
D
CONDENSER COIL
END OF UNIT
FRONT OF UNIT
APPROXIMATE
CENTER OF GRAVITY
BACK OF UNIT
44
7
/
8
82
1
/
4
Y
X
A
B
C
D
E
F
CONDENSER COIL
END OF UNIT
FRONT OF UNIT
APPROXIMATE
CENTER OF GRAVITY
BACK OF UNIT
TABLE 7: D(CE, CG) 4 AND 6 POINT LOADS WEIGHT DISTRIBUTION
UNIT TOTAL
4-Point Loading (lb) 6-Point Loading (lb)
ABCDABCDEF
DCE036 Cooling/ Electric 565
125 123 157 160 84 83 82 104 105 107
DCG036N040 605
134 132 168 171 90 89 88 112 113 114
DCG036N079 625
139 136 173 177 93 92 91 115 117 118
DCE048 Cooling/ Electric 615
137 134 171 174 91 90 89 113 115 116
DCG048N060 665
148 145 184 188 99 98 96 123 124 126
DCG048N099 685
152 149 190 194 102 100 99 126 128 129
DCE060 Cooling/ Electric 640
142 140 178 181 95 94 93 118 119 121
DCG060N079 700
155 153 194 198 104 103 101 129 131 132
DCG060N099 710
158 155 197 201 105 104 103 131 132 134
DCE072 Cooling/ Electric 720
160 157 200 203 107 106 104 133 134 136
DCG072N079 780
173 170 216 220 116 114 113 144 146 147
DCG072N099 790
175 172 219 223 117 116 114 146 147 149
TABLE 8: D(HE, HG) 4 AND 6 POINT LOADS WEIGHT DISTRIBUTION
UNIT TOTAL
4-Point Loading (lb) 6-Point Loading (lb)
ABCDABCDEF
DHE036 Cooling/ Electric 565
125 123 157 160 84 83 82 104 105 107
DHG036N040 605
134 132 168 171 90 89 88 112 113 114
DHG036N079 625
139 136 173 177 93 92 91 115 117 118
DHE048 Cooling/ Electric 610
135 133 169 172 91 89 88 112 114 115
DHG048N060 660
147 144 183 186 98 97 96 122 123 125
DHG048N099 680
151 148 189 192 101 100 99 125 127 128
DHE060 Cooling/ Electric 645
143 141 179 182 96 95 93 119 120 122
DHG060N079 705
157 154 196 199 105 103 102 130 132 133
DHG060N099 715
159 156 198 202 106 105 104 132 133 135
