SECTION 5 – TECHNICAL DATA
STANDARD ALUMINUM CONDENSER FINS OPTIONAL COPPER CONDENSER FINS
LOCATION L1 L2 R1 R2 L1 L2 R1 R2
YCAL0019
1”
Deection
CIP-B-450 CIP-B-750 CIP-B-450 CIP-B-750 CIP-B-450 CIP-B-750 CIP-B-450 CIP-B-750
Neoprene ND-C ND-C ND-C ND-C ND-C ND-C ND-C ND-C
Seismic
SLRS-
2-C2-420
SLRS-
2-C2-660
SLRS-
2-C2-420
SLRS-
2-C2-660
SLRS-
2-C2-420
SLRS-2-
C2-660
SLRS-2-
C2-420
SLRS-
2-C2-660
YCAL0022
1”
Deection
CIP-B-450 CIP-B-750 CIP-B-450 CIP-B-750 CIP-B-450 CIP-B-750 CIP-B-450 CIP-B-750
Neoprene ND-C ND-C ND-C ND-C ND-C ND-C ND-C ND-C
Seismic
SLRS-
2-C2-420
SLRS-
2-C2-660
SLRS-
2-C2-420
SLRS-
2-C2-660
SLRS-2
-C2-520
SLRS-2-
C2-660
SLRS-2-
C2-520
SLRS-2-
C2-660
YCAL0028
1”
Deection
CIP-B-450 CIP-B-1000 CIP-B-450 CIP-B-750 CIP-B-750 CIP-B-1000 CIP-B-750 CIP-B-1000
Neoprene ND-C ND-C ND-C ND-C ND-C ND-C ND-C ND-C
Seismic
SLRS-
2-C2-520
SLRS-
2-C2-920
SLRS-
2-C2-520
SLRS-
2-C2-920
SLRS-
2-C2-520
SLRS-2-
C2-920
SLRS-2-
C2-520
SLRS-2-
C2-920
YCAL0033
1”
Deection
CIP-B-450 CIP-B-1000 CIP-B-450 CIP-B-1000 CIP-B-750 CIP-B-1000 CIP-B-750 CIP-B-1000
Neoprene ND-C ND-C ND-C ND-C ND-C ND-C ND-C ND-C
Seismic
SLRS-
2-C2-520
SLRS-
2-C2-920
SLRS-
2-C2-520
SLRS-
2-C2-920
SLRS-
2-C2-520
SLRS-2-
C2-920
SLRS-2-
C2-520
SLRS-2-
C2-920

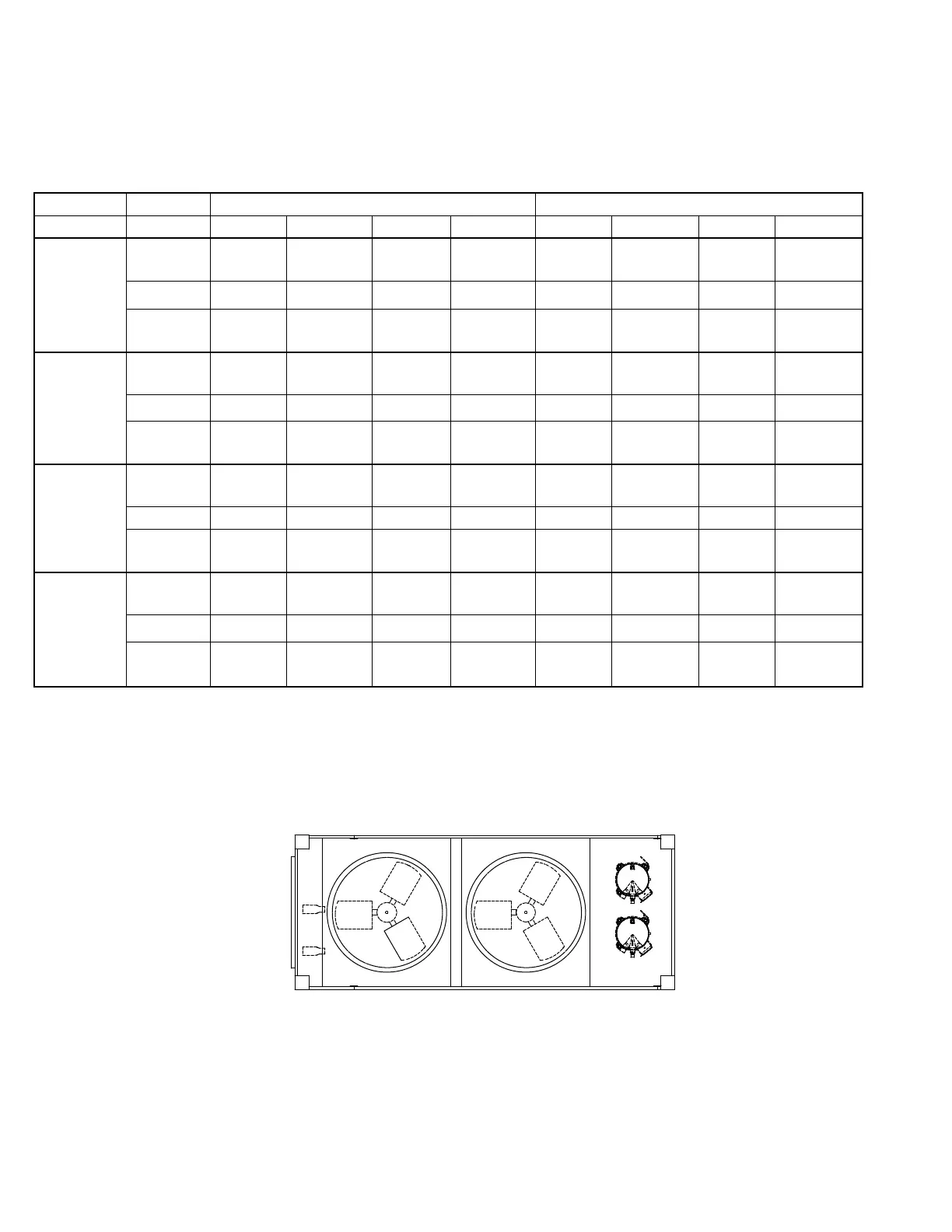

ISOLATOR SELECTION
YCAL0019 – 0033 (WITHOUT PUMP PACKAGE OPTION)
NOTE: Isolators are selected using a service factor.
CONTROL
PANEL
END
YCAL0019, 0022, 0033
L1 L2
R1 R2
SAMPLE
YCAL0019, 0022, 028, 0033
CONTROL
PANEL
END
