45
JOHNSON CONTROLS
SECTION 4 – INSTALLATION
FORM 150.67-NM1
ISSUE DATE: 4/28/2017
4
CTB1
21
13
LOAD LIMIT INPUT
14
13
FLOW SW
REMOTE START/STOP

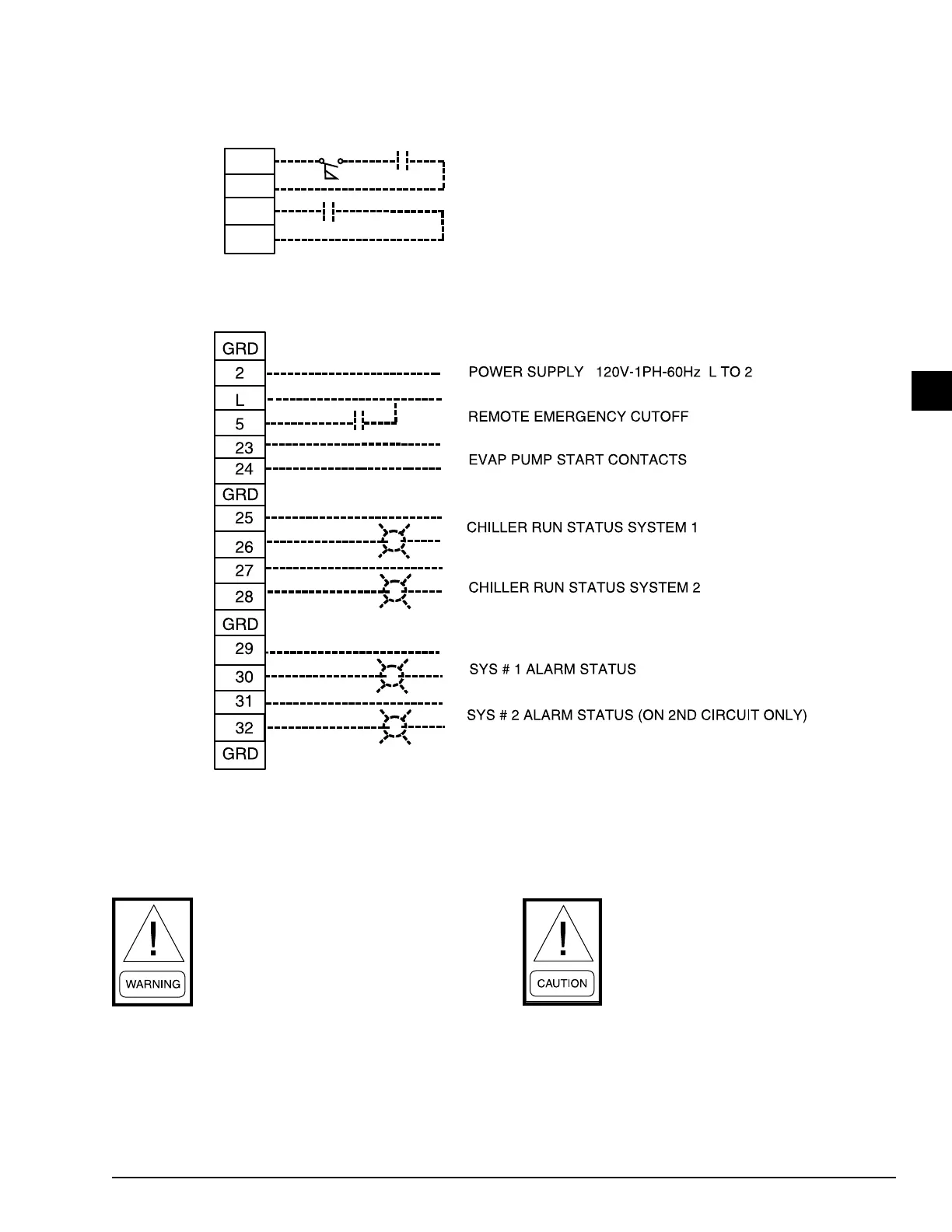

FIGURE 11 - CONTROL WIRING
CONTROL WIRING
*
* Factory wired with optional transformer.
LD07730
LD07725A
It is possible that multiple sources of
power can be supplying the unit power
panel. To prevent serious injury or
death, the technician should verify
that NO LETHAL VOLTAGES are
present inside the panel AFTER dis-
connecting power, PRIOR to working
on equipment.
The unit evaporator heater uses
120VAC. Disconnecting 120VAC pow-
er from the unit, at or below freezing
temperatures, can result in damage to
the evaporator and unit as a result of
the chilled liquid freezing.
CTB2
To Next Page
