JOHNSON CONTROLS
SECTION 2 – PRODUCT DESCRIPTION
FORM 150.67-NM1
ISSUE DATE: 4/28/2017
2

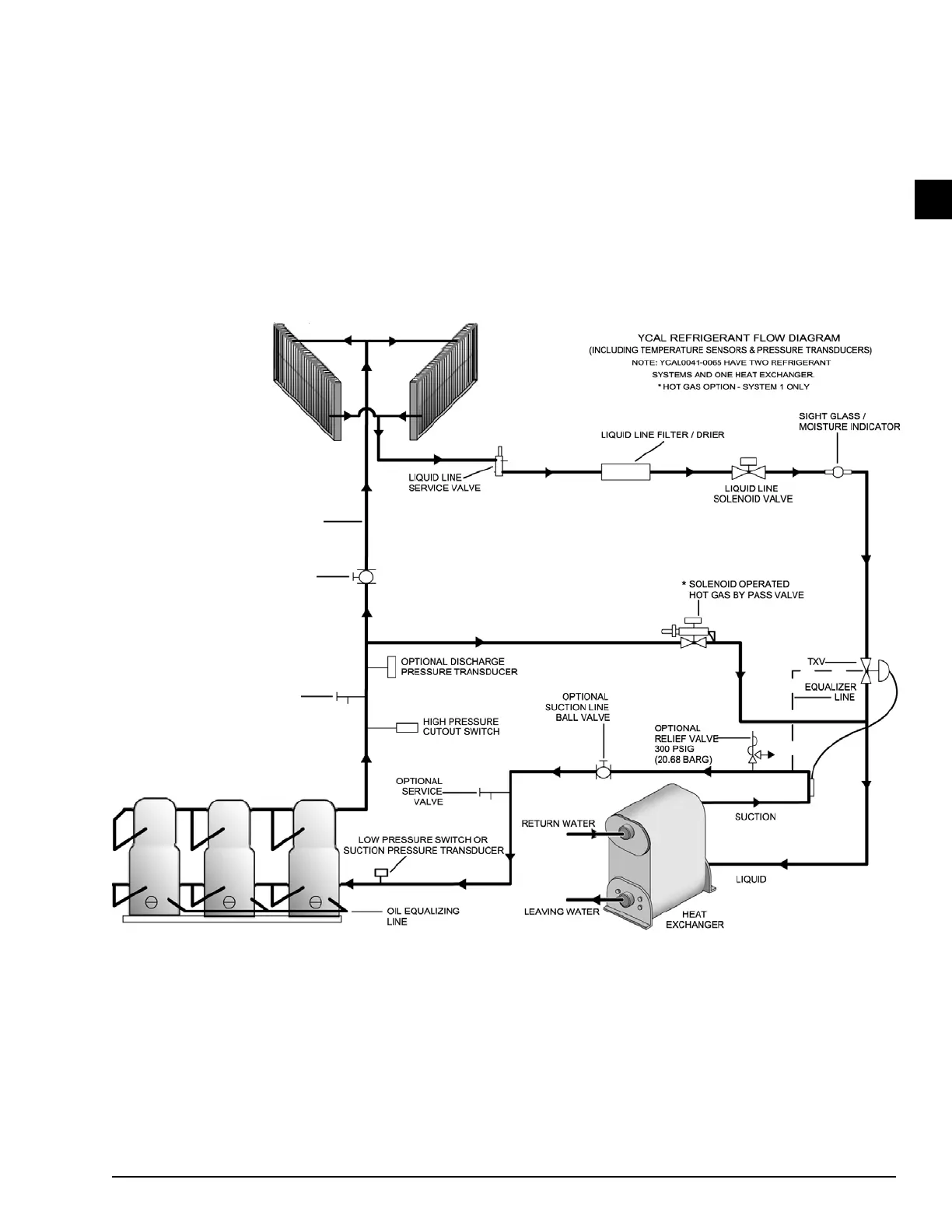

FIGURE 6 - REFRIGERANT FLOW DIAGRAM
LD11417
OPTIONAL
AIR COOLED CONDENSERS
OPTIONAL
DISCHARGE LINE
BALL VALVE
HOT DISCHARGE
GAS LINE
OPTIONAL
SERVICE VALVE
REFRIGERANT FLOW DIAGRAM
