York YCAV0157 User Manual

40
JOHNSON CONTROLS
FORM 201.21-NM1 (1223)

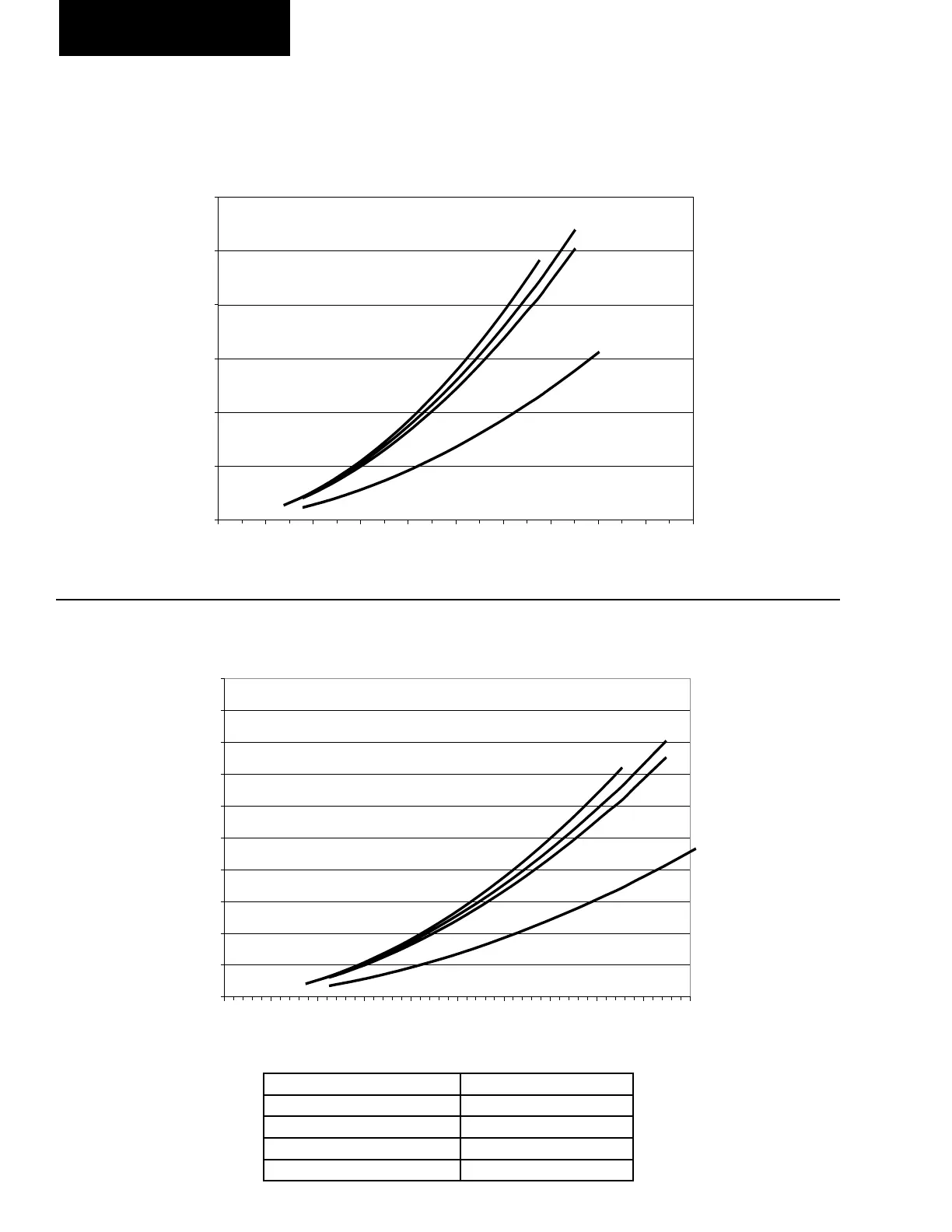

WATER PRESSURE DROP
Pressure Drop Through YCAV Evaporators
0
10
20
30
40
50
60
0100 200300 400 500 600700 800900 1000
Water Flow Rate (GPM)
Pressure Drop (ft H2O)
A
B
C
D
(English Units)
Pressure Drop Through YCAV Evaporators
0
20
40
60
80
100
120
140
160
180
200
0510 15 20 25 30 35 40 45 50
Water Flow Rate (l/s)
Pressure Drop (kPa)
A
B
C
D
(SI Units)
LD10497
LD10498
MODEL NUMBER YCAV COOLER
0157(S/P) A
0157(E/V), 0177, 0187 B
0207, 0227 C
0247, 0267 D
TECHNICAL DATA
SECTION 6 - TECHNICAL DATA

York YCAV0157 Specifications

General

Brand	York
Model	YCAV0157
Category	Chiller
Language	English
