SECTION 2 - OPTIVIEW CONTROL CENTER INTRODUCTION
OVERVIEW
This screen allows definition of the necessary commu-
nications parameters for the printer. Refer to SECTION
4 - PRINTING of this manual for details of the printer
connections and setup.
DISPLAY ONLY
Time Remaining Until Next Print
Displays the time until the next print log will occur, if
the function is enabled.
PROGRAMMABLE
Log Start Time
Access Level Required: OPERATOR
Sets the time at which the scheduled print logs auto-
matically print.
Output Interval
Access Level Required: OPERATOR
Define the interval at which log printing will occur.
(1 minute to 1440 minutes, Default = 60 minutes)
Automatic Printer Logging (Enabled /
Disabled)
Access Level Required: OPERATOR
Enable the printer to begin printing status reports be-
ginning at the programmed start time and recurring at
the interval defined above.
Printer Type
Access Level Required: SERVICE
Define the printer type connected to the chiller system.
(Okidata, WeighTronix, Epson, Seiko, PC, Default =
PC)
ACC Auto Map Print (Enabled / Disabled)
Access Level Required: SERVICE
Only available if the chiller system utilizes a Variable
Speed Drive motor controller. The chiller monitors
the ACC communications and when a surge point is
mapped, a short report of system parameters is printed.
When this function is active, all other printing capabil-
ity is disabled.

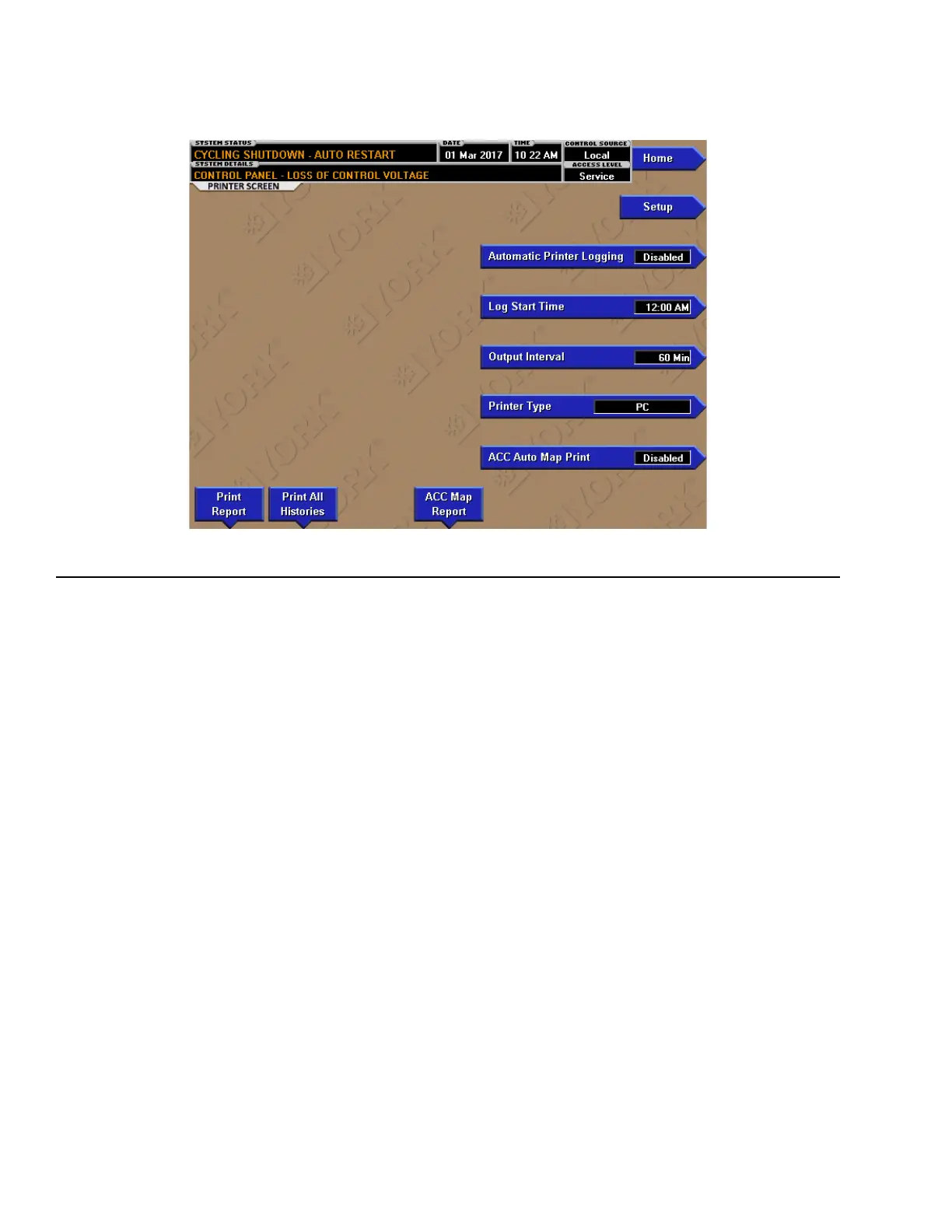

PRINTER SCREEN
LD22051
FIGURE 54 - PRINTER SCREEN
To Next Page
