SECTION 2 - OPTIVIEW CONTROL CENTER INTRODUCTION
JOHNSON CONTROLS
87
FORM 160.87-OM1
ISSUE DATE: 8/24/2018
2
OVERVIEW
This screen displays all information pertinent to the
Medium Voltage Solid State Starter (MVSSS).
DISPLAY ONLY
Motor Run (LED)
Indicates when the OptiView Control Center is com-
manding the motor to run.
Motor Heater (LED)
Indicates whether the optional Motor Heater is ON or
OFF.
Motor Current % Full Load Amps
Displays the motor current as a percentage of Job Full
Load Amps Setpoint.
Current Limit Setpoint
Displays the current limit in use. This value could
come from a 0 to 20mA, 4 to 20mA, 0 to 10VDC or 2
to 10VDC input in Analog Remote mode, PWM signal
in Digital Remote mode, E-Link or SC-EQ commu-
nications interface in ISN Remote mode or a locally
programmed value in Local mode.
Input Power
Displays the kilowatts measured by and transmitted
from the starter.
KW Hours
Displays the cumulative kilowatt hours. The mi-
croboard calculates this value from the Input Power
transmitted from the starter. When the number exceeds
999999 KWH, the value will rollover to zero.
Starter Model
Displays the starter model number as transmitted from
the starter.
Voltage – Phase A, B, C
Displays the 3-phase input line voltage as measured by
and transmitted from the starter.
Current – Phase A, B, C
Displays the 3-phase motor current as measured by and
transmitted from the starter.

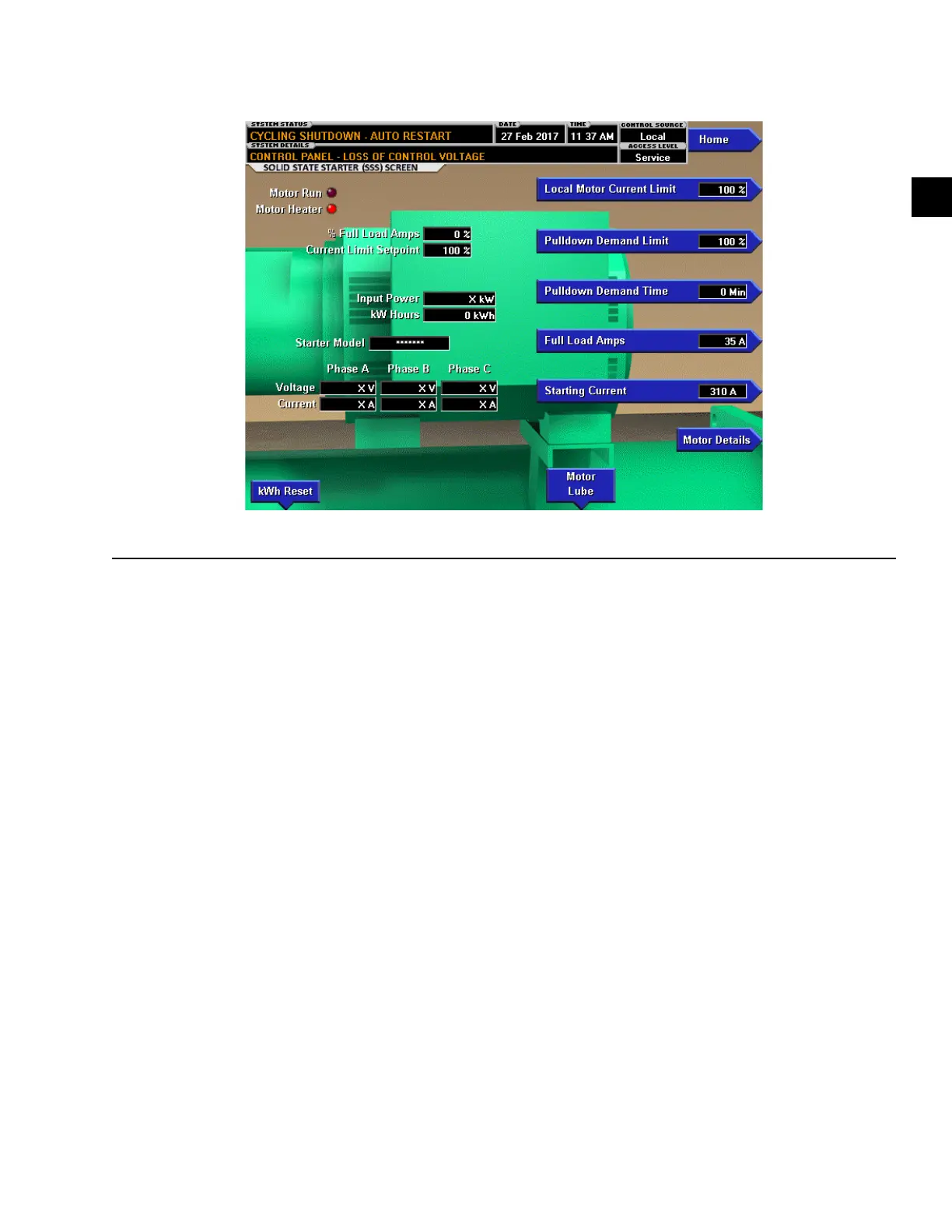

MEDIUM VOLTAGE SOLID STATE STARTER SCREEN
LD22049
FIGURE 36 - MEDIUM VOLTAGE SOLID STATE STARTER SCREEN
