10
mm
WARNING
□ Install the air conditioner in a location which can withstand a load at least ve times the weight of air conditioner
and which will not amplify sound or vibration. If the installation location is not strong enough, the indoor unit may
fall and cause injuries.
□ If the job is done with the panel frame only, there is risk that the unit will come loose. Please take care.

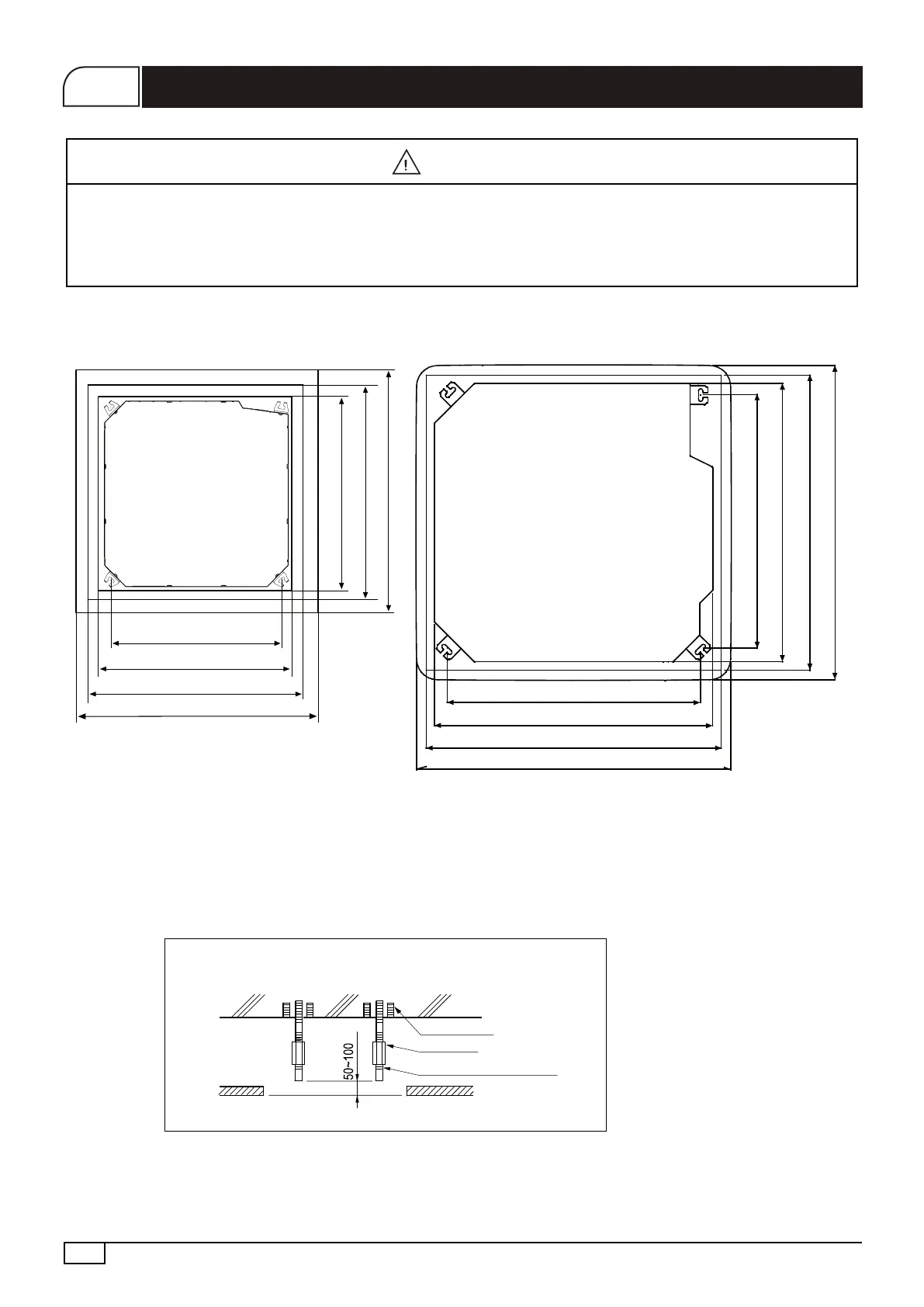

1. Position the ceiling hole and hanging bolts
(unit: mm)
535 (Spacing of hanging screw)
570 (Indoor unit)
570 (Indoor unit)
650 (Ceiling opening)
650 (Ceiling opening)
700 (Trim panel)
700 (Trim panel)
YCK3F (10-18) AAS-W
765 (Spacing of hanging screw)
765 (Spacing of hanging screw)
850 (Indoor unit)
850 (Indoor unit)
890 (Ceiling opening)
890 (Ceiling opening)
950 (Trim panel)
950 (Trim panel)
YCK3F (20-60)AAS-W
2. Hanging preparations
□ Firmly fasten the hanging bolts (Refer to Fig. 3)
□ Install the hanging bolts at a place where they would be capable of holding a weight of at least 50kgf per bolt.
Roof
Installation example
Anchor bolt
Long nut
Suspending bolt (M10)
Ceiling
Installation Procedure
Fig. 3
