SECTION 7 – UNIT CONTROLS

035-02550-xxx I/O Board

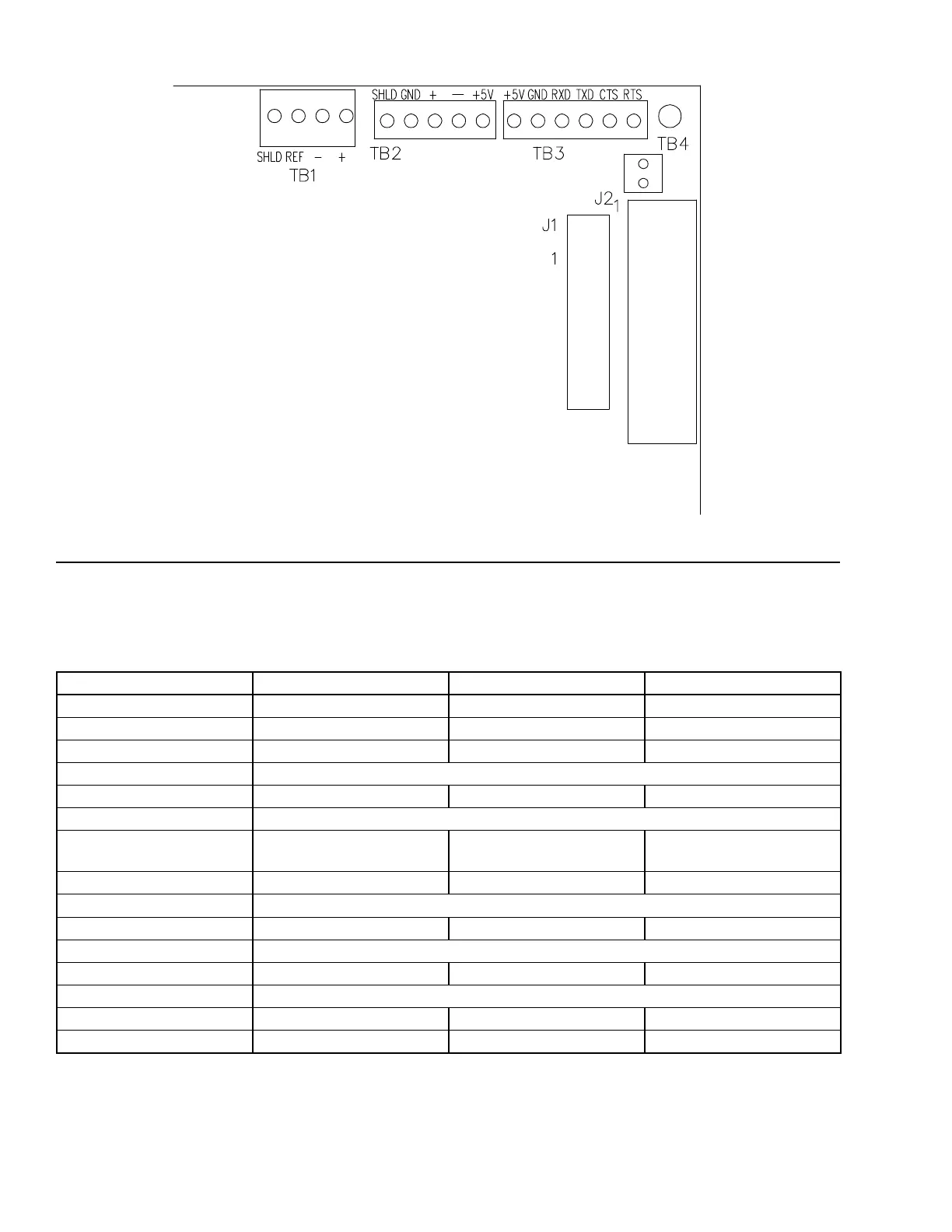

FIGURE 45 - MICRO PANEL CONNECTIONS

LD14318

The table below shows the minimum, maximum, and

default values.

TABLE 19 - MINIMUM, MAXIMUM AND DEFAULT VALUES

DESCRIPTION MINIMUM MAXIMUM DEFAULT

DE MODIFIER ADDRESS -1 41943 -1

DE MODIFIER OFFSET -1 99 -1

P1 BAUD RATE 1200 76800 4800

1200, 4800, 9600, 19200, 38400, 76800, AUTO SELECTABLE

P2 BAUD RATE 1200 57600 1200

1200, 4800, 9600, 19200, 38400, 57600 SELECTABLE

P1, P2 MANUAL Mac

ADDRESS

-1 127 -1

P1, P2 PARITY NONE IGNORE NONE

NONE, EVEN, ODD, IGNORE SELECTABLE

P1 PROTOCOL BACNET API BACNET

BACNET, API SELECTABLE

P2 PROTOCOL TERMINAL MODBUS CLIENT API

TERMINAL, MODBUS IO, MODBUS SERVER, API, MODBUS CLIENT SELECTABLE

P1, P2 STOP BITS 1 2 1

RESET REAL TIME ERROR NO YES NO
