York YLPA User Manual

FORM 150.68-EG1 (0212)
7JOHNSON CONTROLS

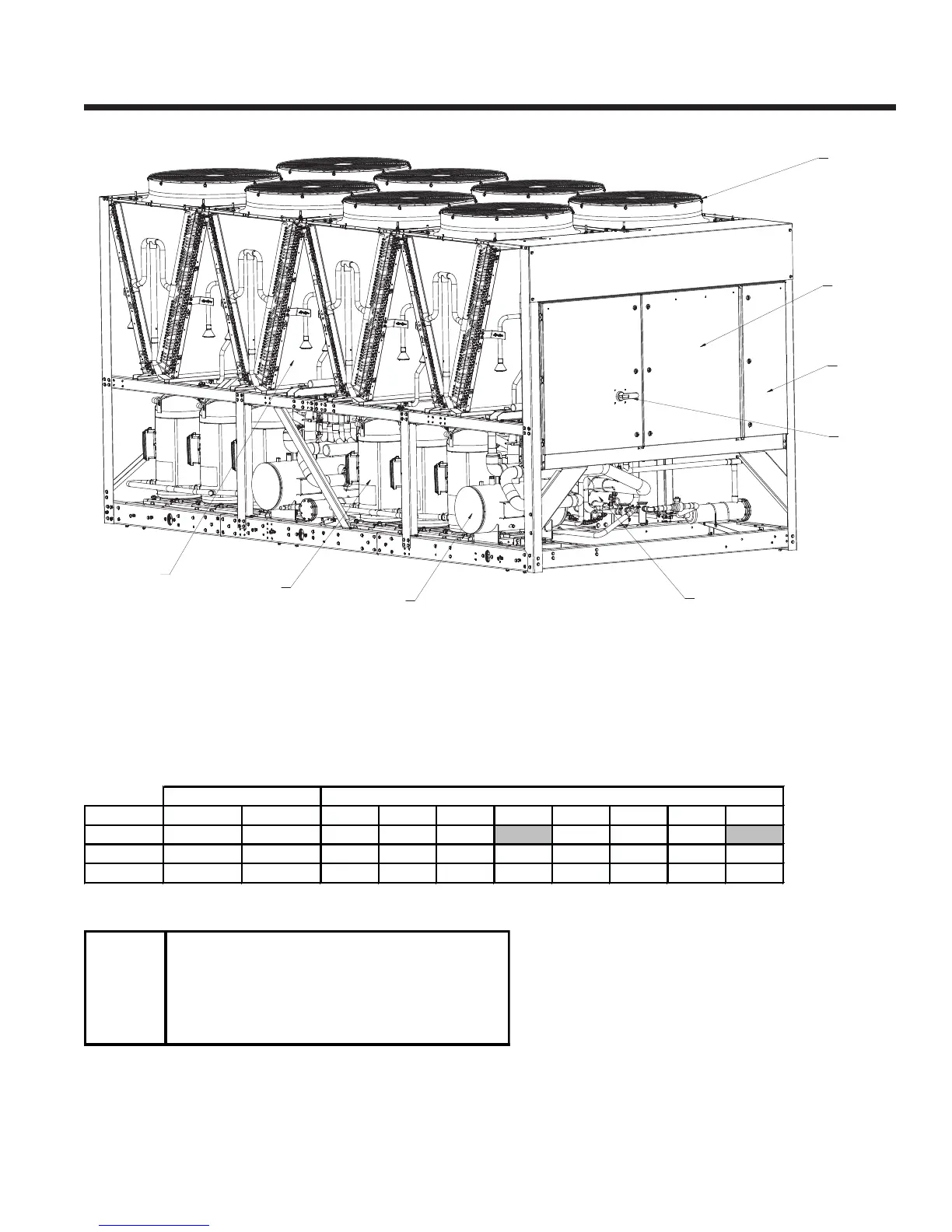

Component Location
1
2
3
8
5
4
6
7
1 Power Panel 5 Heat Exchanger
2 Non-Fused Disconnect Switch 6 Suction Accumulator
3 Control Panel 7 Ambient Coils
4 Compressors 8 Fans
WEIGHTS AND WEIGHT DISTRIBUTION
The weights and weight distribution are given below:
Model Shipping Operating R1 R2 R3 R4 L1 L2 L3 L4
0115SE 9811 10472 1864 1026 1414 2178 1822 2168
0145SE 11243 11904 1021 1471 1024 1356 1595 2191 1541 1705
0170SE 12124 13447 1068 1545 1642 1279 1595 2257 2479 1582
Weight (lbs)
Point Weight (lbs)
R1
R2
R3
R4
L1
L2
L3
L4
Control Panel

York YLPA Specifications

General

Brand	York
Model	YLPA
Category	Heat Pump
Language	English
