75JOHNSON CONTROLS
FORM NO.: 6U6K-B01E-NB-EN
SECTION 5 – TECHNICAL DATA

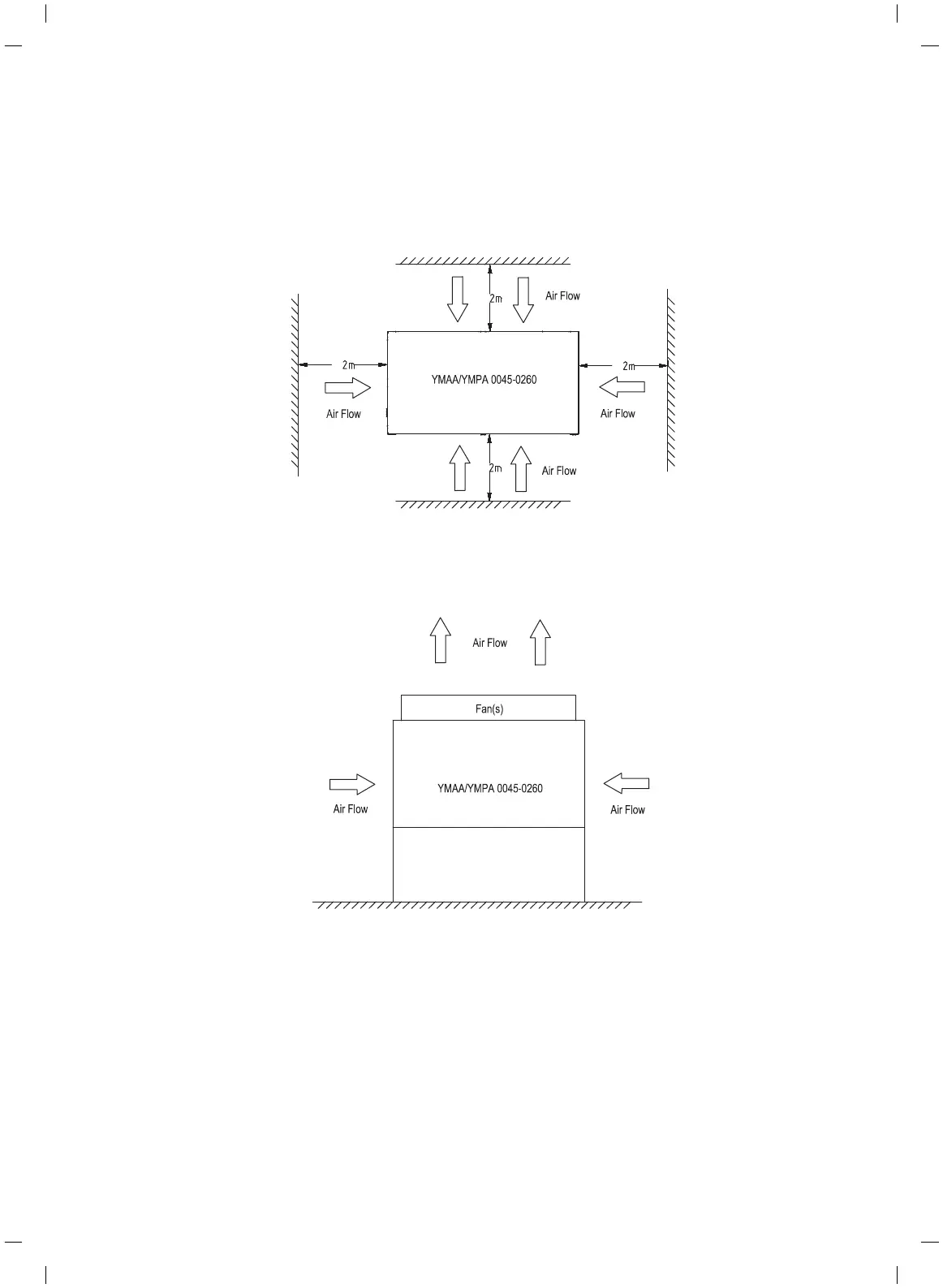

FIGURE 40 – INSTALLATION CLEARANCES
TECHNICAL DATA – CLEARANCES
YMAA/YMPA0080-0130 (WITHOUT HYDRO KIT)
Notes
1.The gure above uses 130 kW unit as an example but also applies to all models;
2.No obstructions allowed above the unit;
3.Only one adjacent wall may be higher than the unit.
The condenser fans are propeller-type and are not recommended for use with ductwork, lters or other impediments to airow in the
condenser air stream. If the unit is restrained for indoor application, induced fans must be installed except for ductwork to prevent air
ow decrease.
≥
≥
≥
≥
