ONE INCH DEFLECTION – SPRING ISOLATORS
INSTALLATION INSTRUCTIONS
Installation Instructions
1.Read instructions in their entirety before beginning
installation.
2.Isolators are shipped fully assembled. Make sure the AVM
types are correct (print codes and adhesive labels) and match
each load point with corresponding isolators.
3.Twist off the xing bolt and washer anticlockwise.
4.Set isolators on oor. Ensure that all isolator centerlines match
the equipment mounting holes. The isolator base be installed on
a level surface. Leveling all isolator bases to the same elevation
(1/4-inch maximum difference can be tolerated).
5.Place equipment on top of isolators making sure that mounting
holes of the equipment line up with isolator installation holes.
6.Place the xing bolt and washer but do not tighten them.
7.Ensure the verticality of the isolators and use bolts to x the
bases of the isolators to the level oor. Use the same torque to
fasten the bolts.
8.The adjustment process can only begin after the equipment or
machine is at its full operating weight.
9.Measure the height of the housing. Adjust each isolator in
sequence by turning adjusting bolt. Repeat this procedure on all
isolators, one at a time.
10.Fine adjust isolators to level equipment. Fasten the M20 thin
nut and xing bolt.
11.Installation is complete.

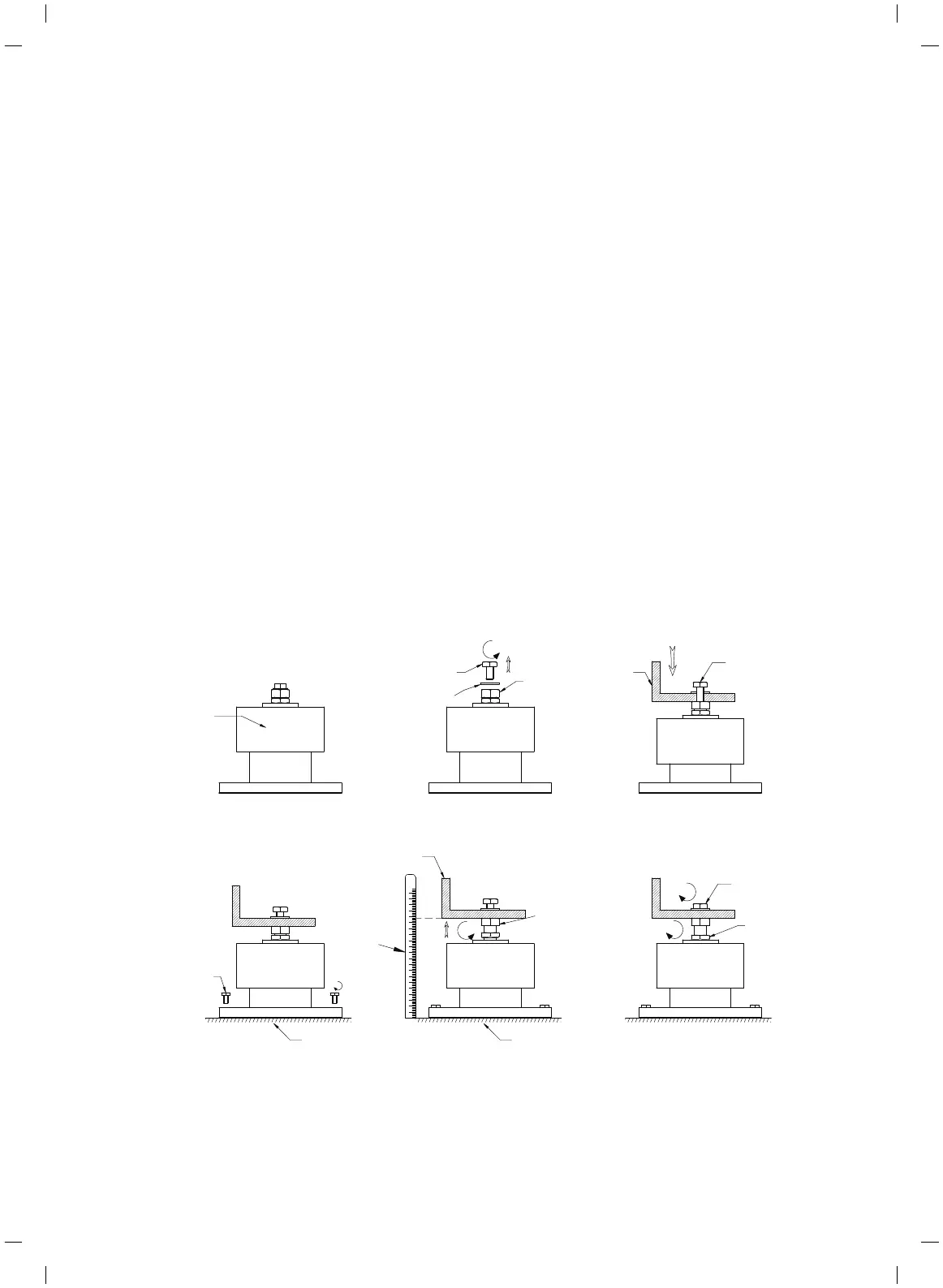

Load labe1
550KG
Adjusting
bolt
Fixing nut
Washer
550KG
Unit
Fixing
bolt
550KG
Bolt
Level basement
550KG
Ruler
Adjusting
bolt
Unit
Level basement
550KG
Fixing
bolt
M20
thin nut
550KG
Lock
Step 1
Step 2
Step 4
Step 5
Step 3
Step 6
