91JOHNSON CONTROLS
FORM NO.: 6U6K-B01E-NB-EN
NEOPRENE ISOLATOR INSTALLATION AND ADJUSTMENT
Installation Instructions
1.Read instructions in their entirety before beginning
installation.
2.Isolators are shipped fully assembled. Make sure the AVM
types are correct (print codes and adhesive labels) and match
each load point with corresponding isolators.
3.Use spanner to twist off the xing bolt and washer.
4.Set isolators on oor. Ensure that all isolator centerlines match
the equipment mounting holes. The isolator base be installed on
a level surface. Leveling all isolator bases to the same elevation.
5.Place equipment on top of isolators making sure that
mounting holes of the equipment line up with isolator
installation holes.
6.Tighten the fixing bolt and ensure the verticality of the
isolators.
7.Tighten the bolts at the base of the isolator.
8.Installation is complete.

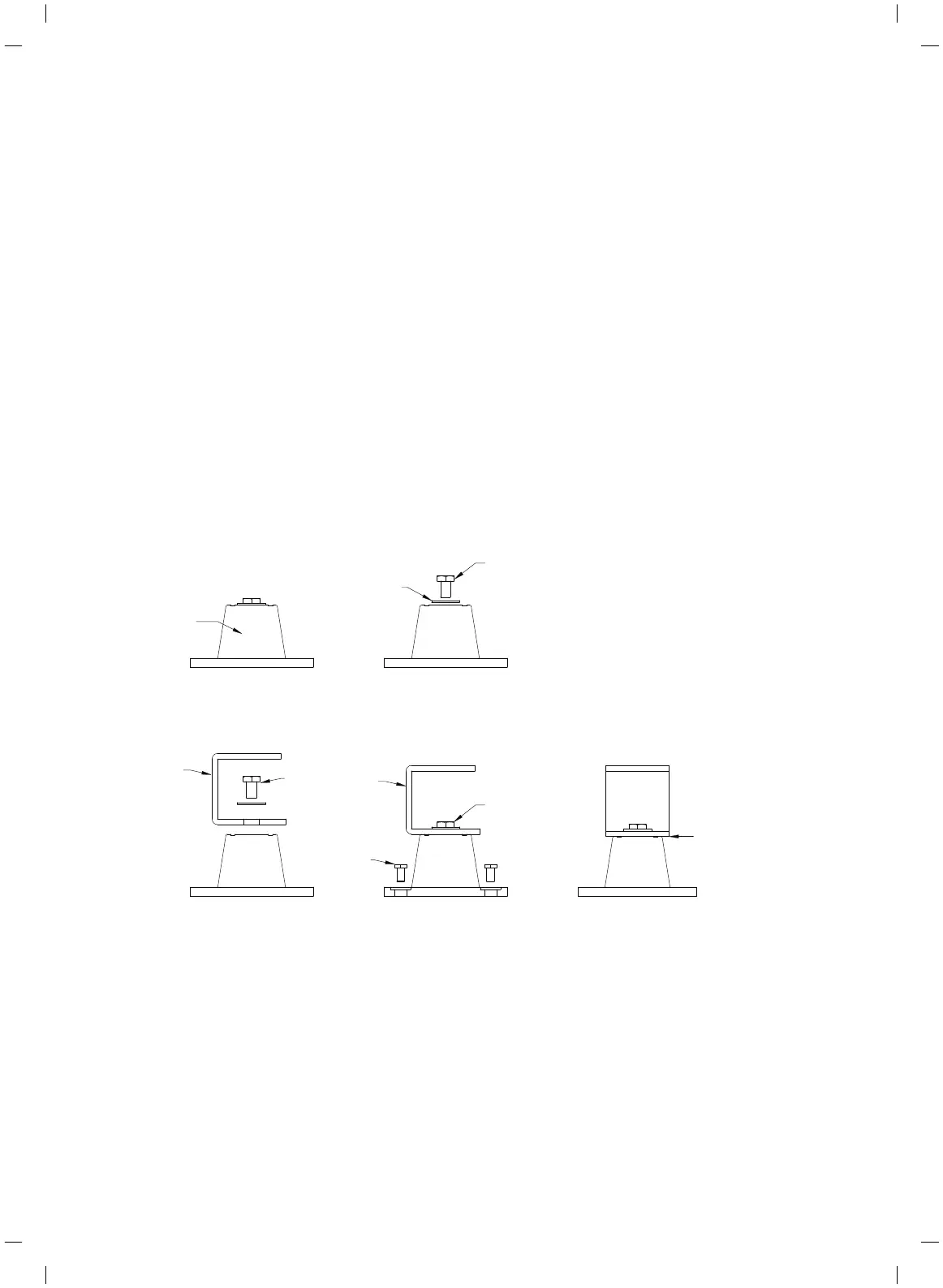

The base of the unit
fully cover the surface
of AVM
40
Print code
40
Washer
40 40
Fixing bolt
①
Fixing
bolt
②
Unit
Fixing
bolt
①
Fixing bolt
①
Unit
Step 1
Step 2
Step 3
Step 4
Step 5
SECTION 5 – TECHNICAL DATA
