1183875-YIM-A-1014
8 Johnson Controls Unitary Products
Units may be moved or lifted with a forklift. Slotted openings in
the base rails are provided for this purpose.
LENGTH OF FORKS MUST BE A MINIMUM OF 60 INCHES.

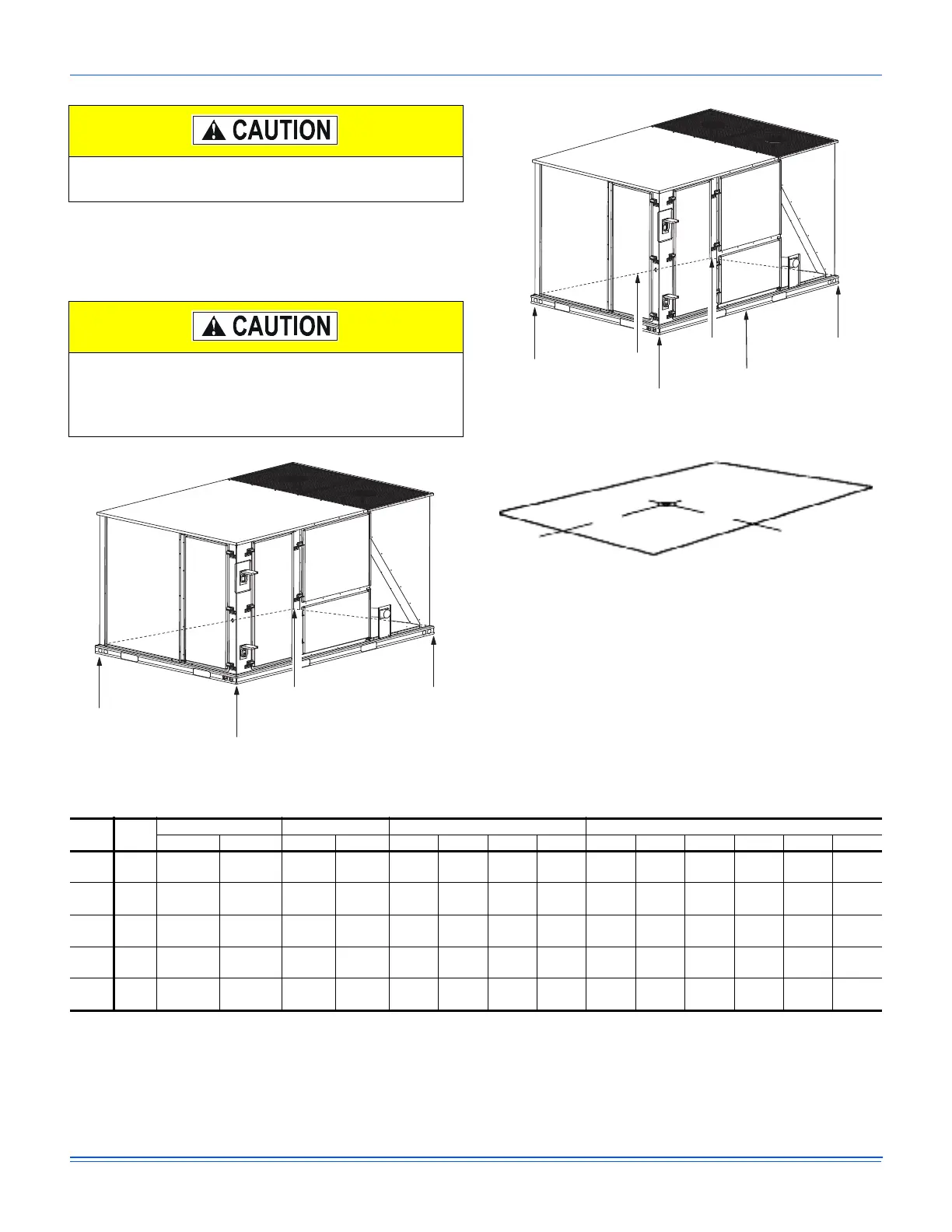

Figure 5: Unit 4 Point Load Weight
Figure 6: Unit 6 Point Load Weight
Figure 7: Center of Gravity
Before lifting, make sure the unit weight is distributed
equally on the rigging cables so it will lift evenly.
All panels must be secured in place when the unit is
lifted.
The condenser coils should be protected from rigging
cable damage with plywood or other suitable material.
Table 2: Weights and Dimensions
Size
(Tons)
Model
Weight (lbs.) Center of Gravity 4 Point Load Location (lbs.) 6 Point Load Location (lbs.)
ShippingOperatingX Y ABCDABCDEF
078
(6.5)
ZJ 1035 1030 39 25 245 191 260 333 170 144 122 167 195 232
090
(7.5)
ZJ 1055 1050 39 25 250 195 265 340 174 146 125 170 199 236
102
(8.5)
ZJ 1065 1060 38 24 247 184 268 360 173 141 117 171 206 253
120
(10)
ZJ 1075 1070 39 24 245 191 278 357 170 143 122 178 209 248
150
(12.5)
ZJ 1285 1280 48 24 240 281 410 350 156 173 192 280 252 227
