Zapi COMBI AC1 User Manual

Press ENTER for YES, or OUT for No
' % '
' ' '
' ' '
' % '
You can see the items that are being stored in the
chopper memory whilst the RESTORE routine is
happening
STORING
ACCELER. DELAY
When finished, the Console shows :
MAIN MENU
RESTORE PARAM.
Press OUT to return to the Opening Zapi Display
' ' '
' % '
NOTE: in reality the SAVE and RESTORE function requires the Windows PC-
Console.
10.3 Description of console “PROGRAM VACC” function
This enables adjustment of the minimum and maximum useful signal level, in
either direction. This function is unique when it is necessary to compensate for
asymmetry with the mechanical elements associated with the potentiometer,
especially relating to the minimum level.

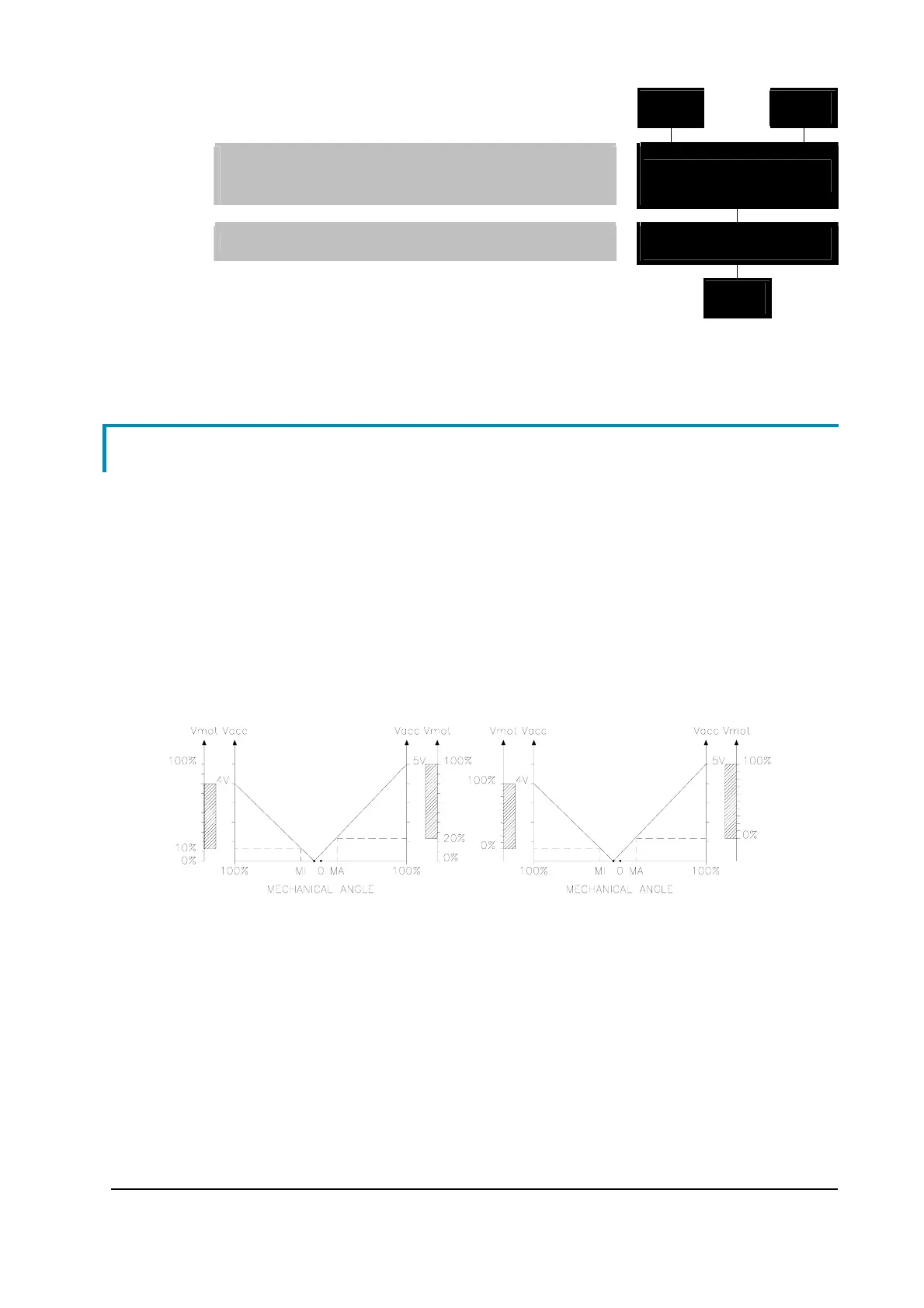

The two graphs show the output voltage from a non-calibrated potentiometer with
respect to the mechanical “zero” of the control lever. MI and MA indicate the
point where the direction switches close. 0 represents the mechanical zero of the
rotation.
The Left Hand graph shows the relationship of the motor voltage without signal
acquisition being made. The Right Hand Graph shows the same relationship after
signal acquisition of the potentiometer.
This function looks for and remembers the minimum and maximum potentiometer
wiper voltage over the full mechanical range of the
pedal. It enables compensation for non symmetry of the mechanical system
between directions.
The operation is performed by operating the pedal after entering the PROGRAM
VACC function.
AEQZP0BA – COMBI AC1 - User Manual Page - 59/86
