AF9ZP0BA - EPS-ACW REACH TRUCK - User Manual Page - 29/90

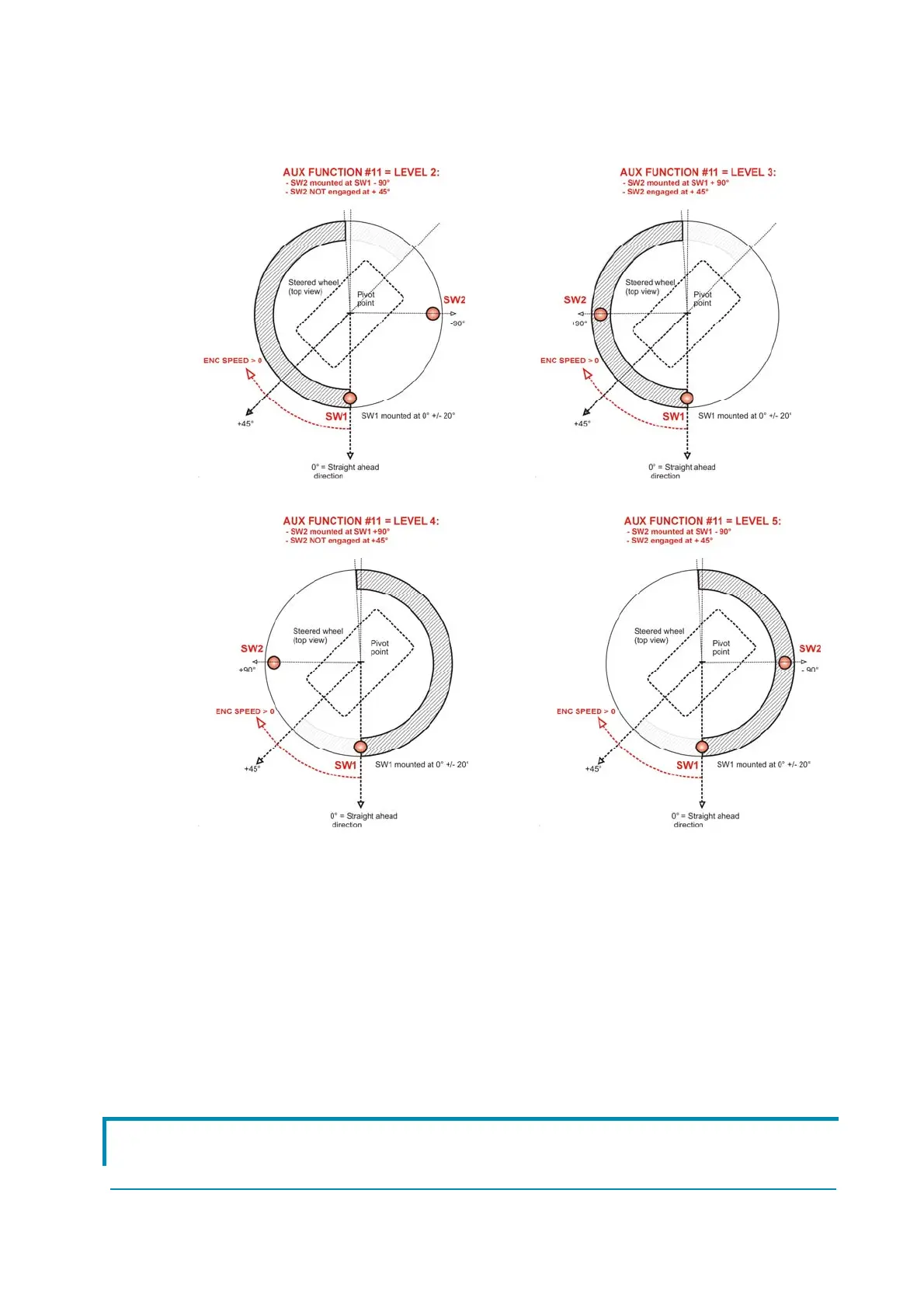

12.3.2 Sectors when ENC SPEED is positive in ClockWise (CW) direction
Figure 12.3.2-1: ENC SPEED > 0 in CW direction
Above figures 12.3.1-1 and 12.3.2-1 show the correct setting for AUX FUNCTION
11. Pay attention the correct setting depends by the POSITIVE turning direction of
the motor (i.e. turning direction with ENC SPEED > 0 in the TESTER menu): if the
motor turns positive speed in CounterClockwise Side, refer to Figure 12.3.1-1; if
the motor turns positive speed in ClockWise Side, refer to Figure 12.3.2-1.
If any doubt remains (or in case you are using only one switch (SW1) in the
straight ahead direction), refer to the AUX FUNCTION 11 manual setting below.
12.4 AUX FUNCTION 11 manual setting
AUX FUNCTION 11 specifies the toggle switches arrangement (number of toggle
