Notice that only directories are shown, not single files.
While exploring the content, the navigation buttons work in the following way:
Up/down keys are used to control scrolling.
Right key enters the highlighted directory: its content (directories only) will
be shown immediately.
Left key returns up to one level in the directory structure: it does not work
while being in /
Esc returns to HOME SCREEN
OK starts download.
When saving files, the console creates a subdirectory whose name has eight
digits:
First four digits are controller type
Fifth and sixth digits are the customer identification code
Seventh and eight digits are the code of the software installed inside the
controller.

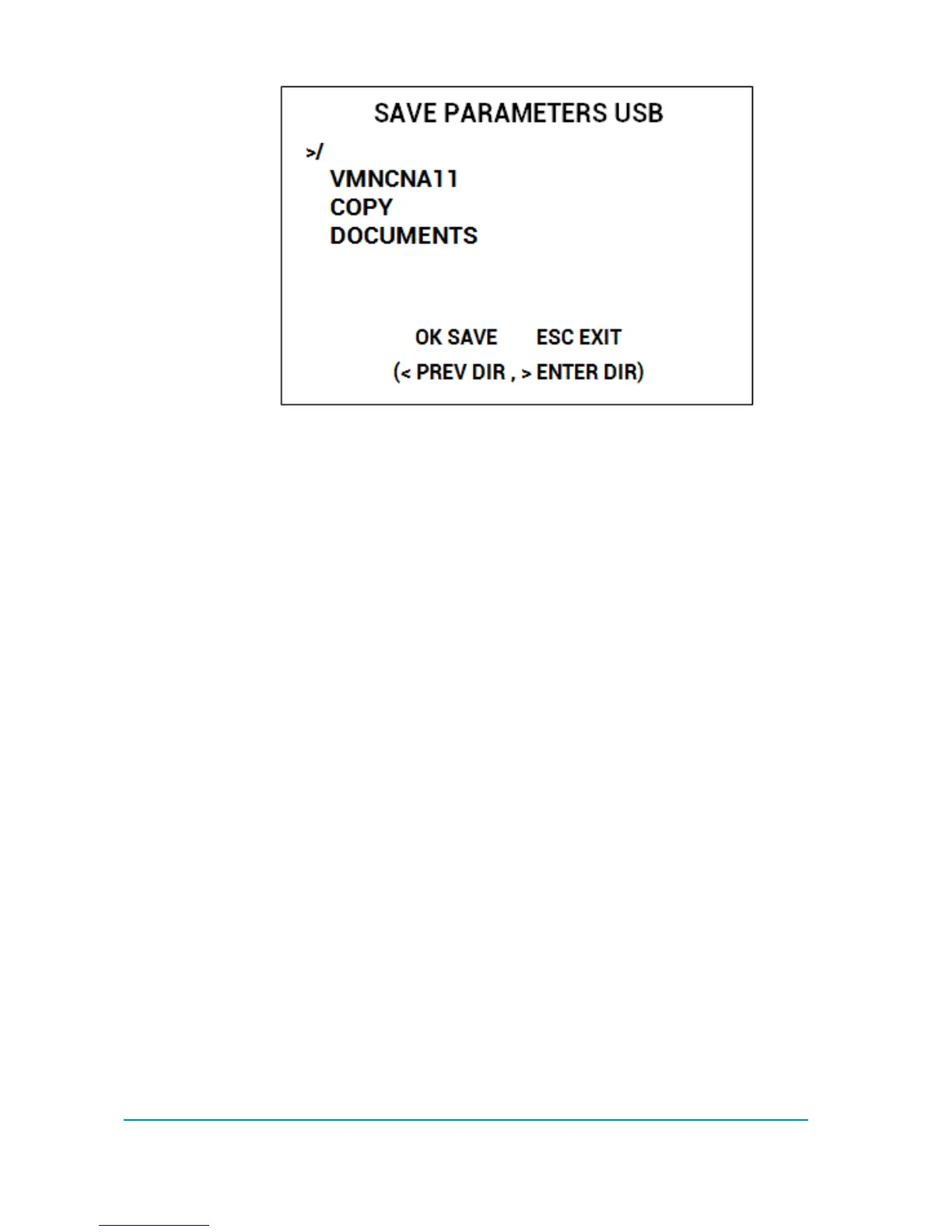

An example of this code is the first directory name (VMNCNA11) shown in the
previous figure.
If parameters are downloaded multiple times from the same controller, or from
another controller whose eight digit code is the same, all parameter files are
saved in the same location.
If the directory does not exist, it is created when download is carried out for the
first time.
To download parameters, use following procedure:
1. Navigate the directory list and enter the directory where you want to save
the parameters
2. If this directory already contains the subdirectory with the correct 8 digits
go to step 3. If it is not present, a new subdirectory will be created
automatically. Don’t enter the subdirectory
3. Press OK to start parameter download. A progression bar shows the
process.
4. When finished, press ESC and display will return to MAIN MENU. USB
stick can be removed safely
Connect the USB stick to a PC and enter the directory of point 1). There will be a
subdirectory with the correct name and, inside this one, a csv file will be present.
