Zebra 105SL Quick Reference Guide

Control Panel
2
14023L-002 Rev. A 105SL Quick Reference Guide 6/20/07
Control Panel
The control panel (Figure 2) contains the lights that reflect basic operation and the buttons that
you may need to press during basic operation.

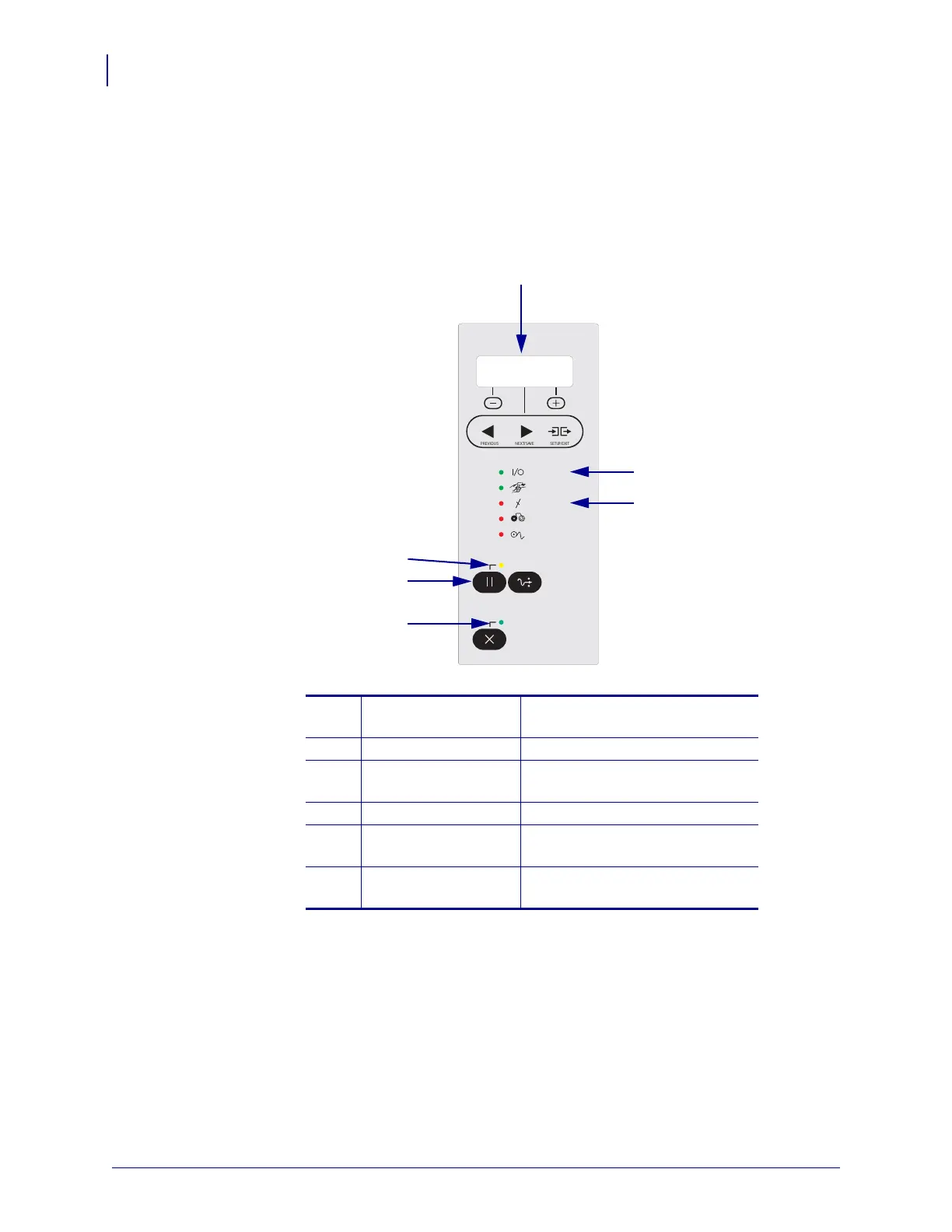

Figure 2 • Control Panel
1
LCD Shows the printer’s operating
status.
2
Power light Indicates that the printer is on.
3
Error light Blinks when the printer needs
attention.
4
PAUSE light On when the printer is paused.
5
PAUSE button Starts or stops printer operation
when pressed.
6
Data light Blinks quickly when the printer is
receiving data.
POWER
TAKE LABEL
ERROR
CHECK RIBBON
CANCEL
FEED
PAPER O UT
PAUSE
DATA
PREVIOUS
NEXT/SAVE
SETUP/EXIT
1
5
2
3
6
4

Zebra 105SL Specifications

General

Print technology	Direct thermal
Display	LCD
Product color	Gray
Network ready	Yes
Dimensions (WxDxH)	283 x 495 x 394 mm
Standard interfaces	Parallel, Serial
Internal memory	6 MB
Maximum label width	115 mm
Maximum label length	0.991 m
Power requirements	90-264 VAC, 48-63 Hz

Weight and Dimensions

Depth	495 mm
Width	283 mm
Height	394 mm
Weight	29000 g
