Printer Components
6/20/07 105SL Quick Reference Guide 14023L-002 Rev. A
Printer Components
Figure 3 shows the components inside the media compartment of your printer. Depending on
installed options, your printer may look slightly different.

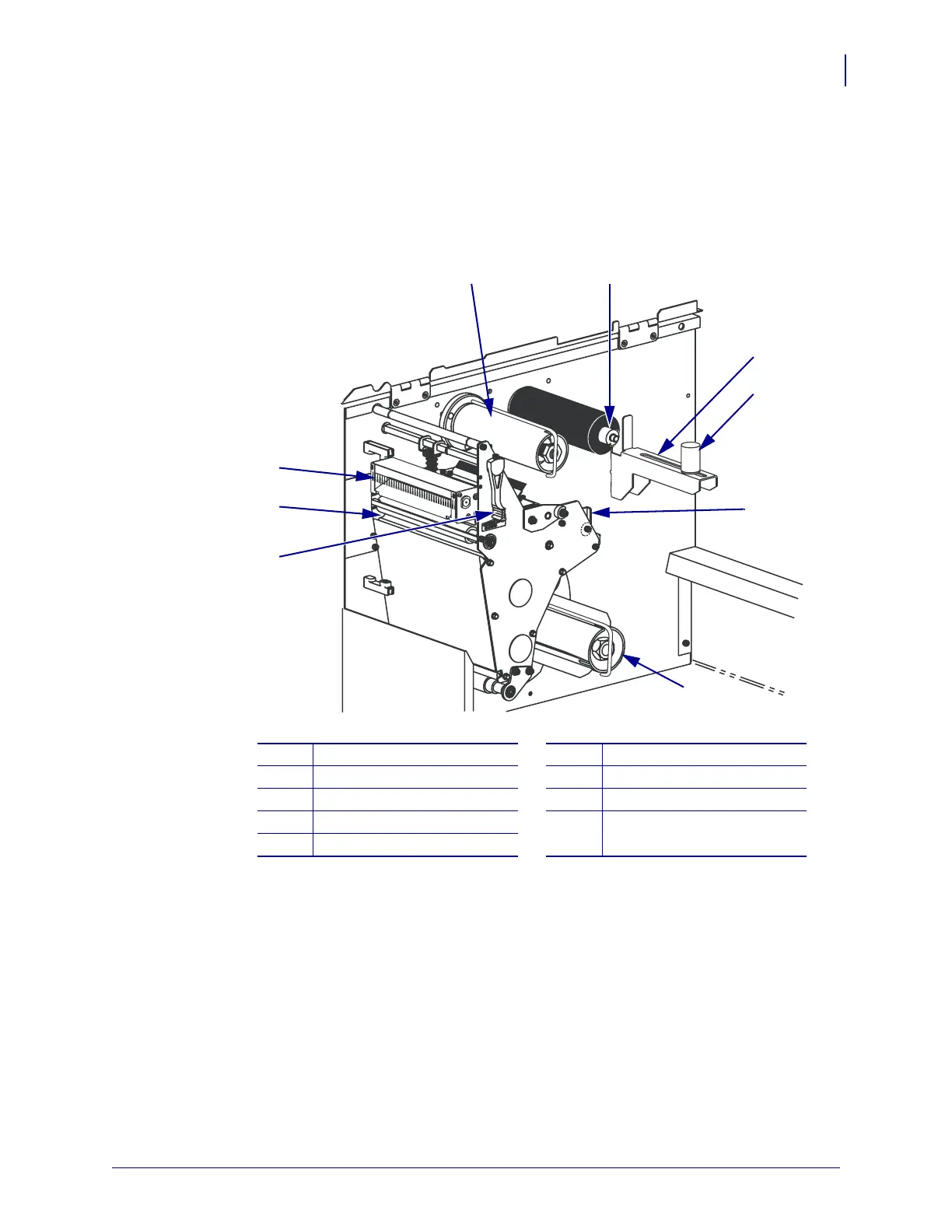

Figure 3 • Printer Components
1
Printhead-open lever
6
Media supply hanger
2
Platen roller
7
Media supply guide
3
Cutter (optional)
8
Outer media guide
4
Ribbon take-up spindle
9
Rewind spindle (optional)
5
Ribbon supply spindle
4 5
6
7
3
1
8
9
2

Zebra 105SL Specifications

General

Print technology	Direct thermal
Display	LCD
Product color	Gray
Network ready	Yes
Dimensions (WxDxH)	283 x 495 x 394 mm
Standard interfaces	Parallel, Serial
Internal memory	6 MB
Maximum label width	115 mm
Maximum label length	0.991 m
Power requirements	90-264 VAC, 48-63 Hz

Weight and Dimensions

Depth	495 mm
Width	283 mm
Height	394 mm
Weight	29000 g
