Zephyr Typhoon AK2136CS User Manual

11
Typhoon, Hurricane, & Cyclone Use, Care, and Installation Guide
ZEPHYRONLINE.COM

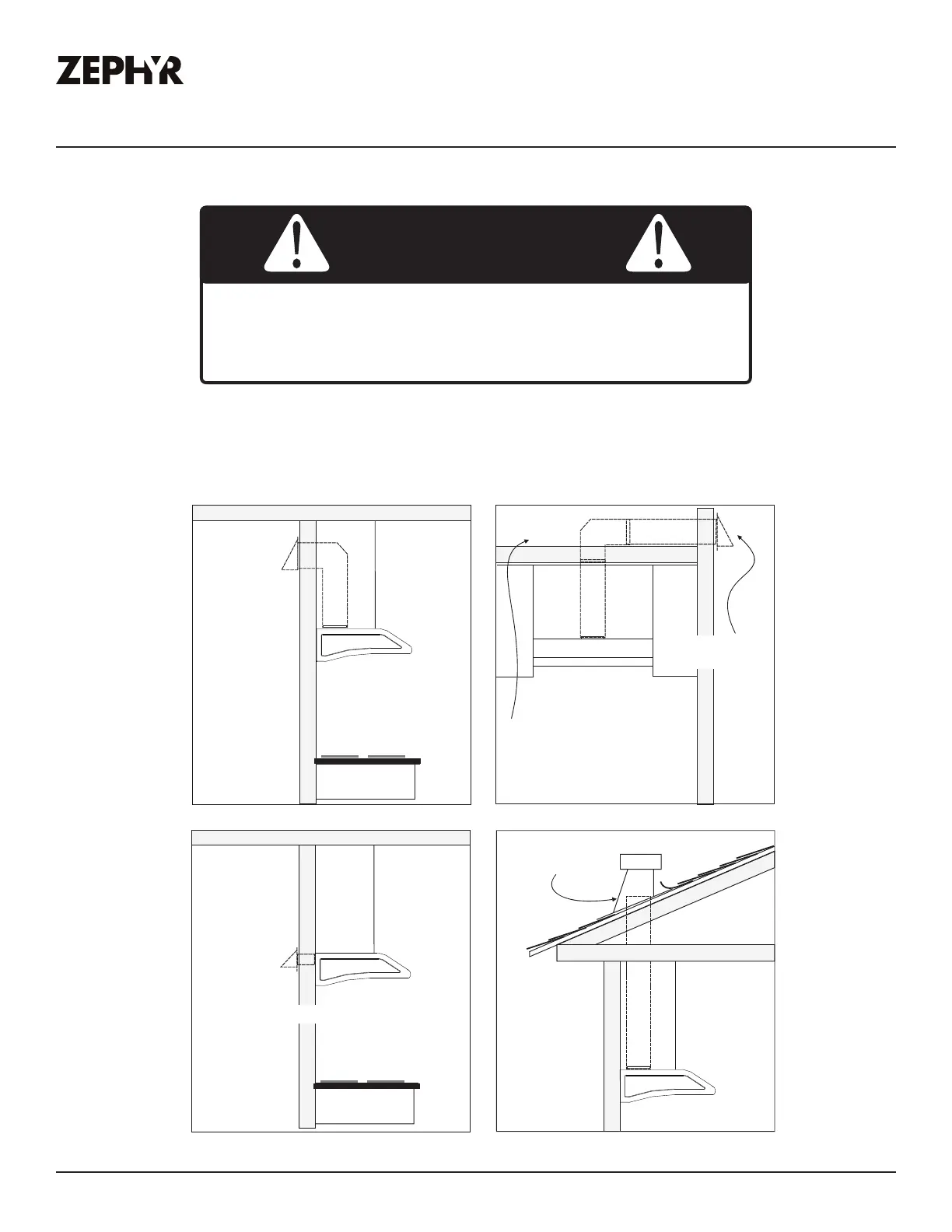

Installation Instructions
Ducting Options
Ź Use single wall rigid metal ductwork only.
Ź Fasten all connections with sheet metal screws and tape all joints w/ certified Silver Tape or Duct
Tape.
Fire Hazard: NEVER exhaust air or terminate ductwork into
spaces between walls, crawl spaces, ceilings, attics, or garages.
All exhaust must be ducted to the outside, unless using the
recirculating option.
WARNING
side wall cap
w/gravity damper
cabinet
cabinet
sot or crawl space
side wall cap
w/gravity damper
3-1/4”x10” rear
ducting w/side
wall gravity damper
roof pitch w/
flashing & cap

Zephyr Typhoon AK2136CS Specifications

General

Color	stainless steel
Hood Type	under cabinet
Venting Type	ducted, external
Temperature Sensor	no
Number of Fan Speeds	6
CFM	850 cubic feet per minute
Sones	5 sones
Control Type	touch pad
Delay Start	yes
Interior Light	yes
Remote Control	no
Voltage	120 volts

Weight and Dimensions

Depth	20 3/4 inches
Height	7 7/8 inches
Width	35 3/4 inches
Net Weight	40.5 pounds
