Typhoon, Hurricane, & Cyclone Use, Care, and Installation Guide
ZEPHYRONLINE.COM
Installation Instructions
Rectangular Horizontal Ducting Preparation
Ź By default the Typhoon and Hurricane are pre-configured for 7” round vertical ducting.
Ź By default the Cyclone is pre-configured for 6” round vertical ducting.

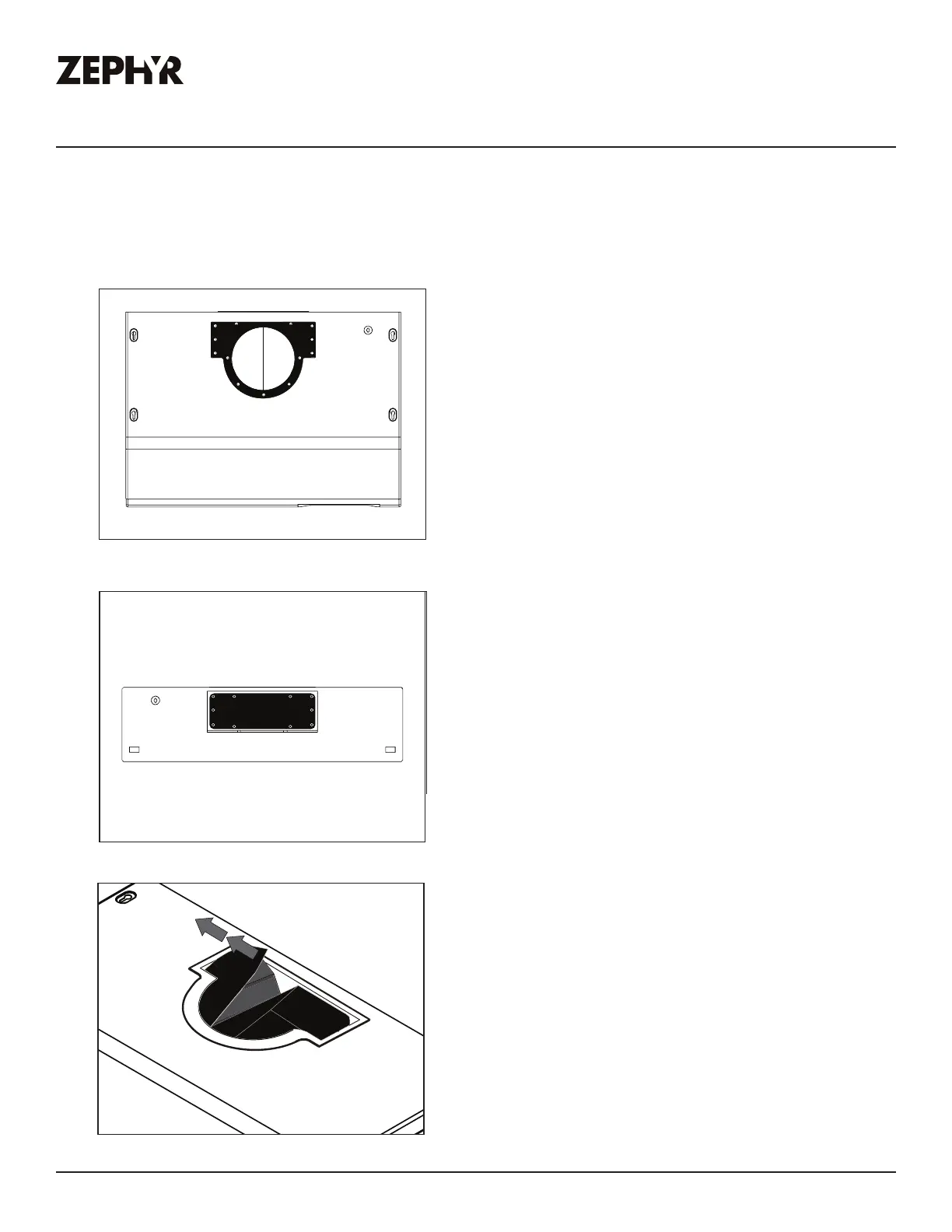

1. Using a Philips-head screwdriver
remove the screws and round vertical
transition adapter from the top of the
hood.
3. Typhoon ONLY. Remove the two
plastic air diverter blocks. The blocks
are located in the hood and can be
accessed from the top when the round
transition adapter is removed.
2. Using a Philips-head screwdriver,
remove the screws and 3-1/4"x10"
rectangular cover plate from back of
hood.

Zephyr Typhoon AK2136CS Specifications

General

Color	stainless steel
Hood Type	under cabinet
Venting Type	ducted, external
Temperature Sensor	no
Number of Fan Speeds	6
CFM	850 cubic feet per minute
Sones	5 sones
Control Type	touch pad
Delay Start	yes
Interior Light	yes
Remote Control	no
Voltage	120 volts

Weight and Dimensions

Depth	20 3/4 inches
Height	7 7/8 inches
Width	35 3/4 inches
Net Weight	40.5 pounds
