Zephyr Typhoon AK2136CS User Manual

7
Typhoon, Hurricane, & Cyclone Use, Care, and Installation Guide
ZEPHYRONLINE.COM

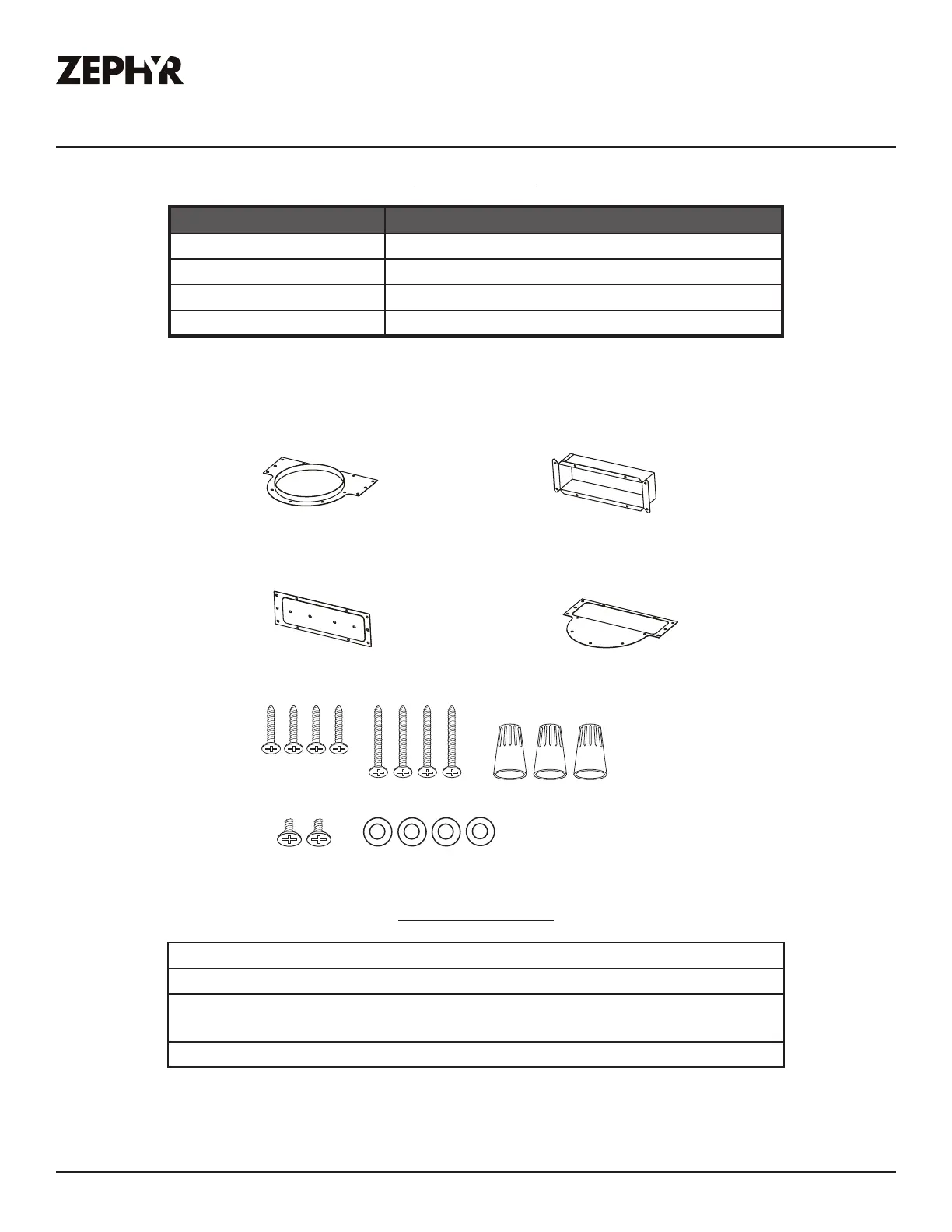

List of Materials
Parts Supplied
Quantity Part
1Hood
2 Safety grilles
2 LumiLight LED
1 Hardware package
#6 x 1” (4)
Safety Grille
Screws (2)
#6 x 1-1/2” (4)
Wire Caps (3)
7” Round transition adapter (AK21, AK25)
6” Round transition adapter (AK65)
(pre-installed on top of hood)
3-1/4”x10” rectangular cover plate
(pre-installed on back of hood)
3-1/4”x10” rectangular vertical
transition adapter
3-1/4”x10” rectangular
starting collar
Washer (4)
Parts Not Supplied
Ducting, conduit and all installation tools
Backdraft damper
Philips head screwdriver with minimum 8” long shaft (required to install
AK2100)
Cable locking connector (if required by local codes)

Zephyr Typhoon AK2136CS Specifications

General

Color	stainless steel
Hood Type	under cabinet
Venting Type	ducted, external
Temperature Sensor	no
Number of Fan Speeds	6
CFM	850 cubic feet per minute
Sones	5 sones
Control Type	touch pad
Delay Start	yes
Interior Light	yes
Remote Control	no
Voltage	120 volts

Weight and Dimensions

Depth	20 3/4 inches
Height	7 7/8 inches
Width	35 3/4 inches
Net Weight	40.5 pounds
