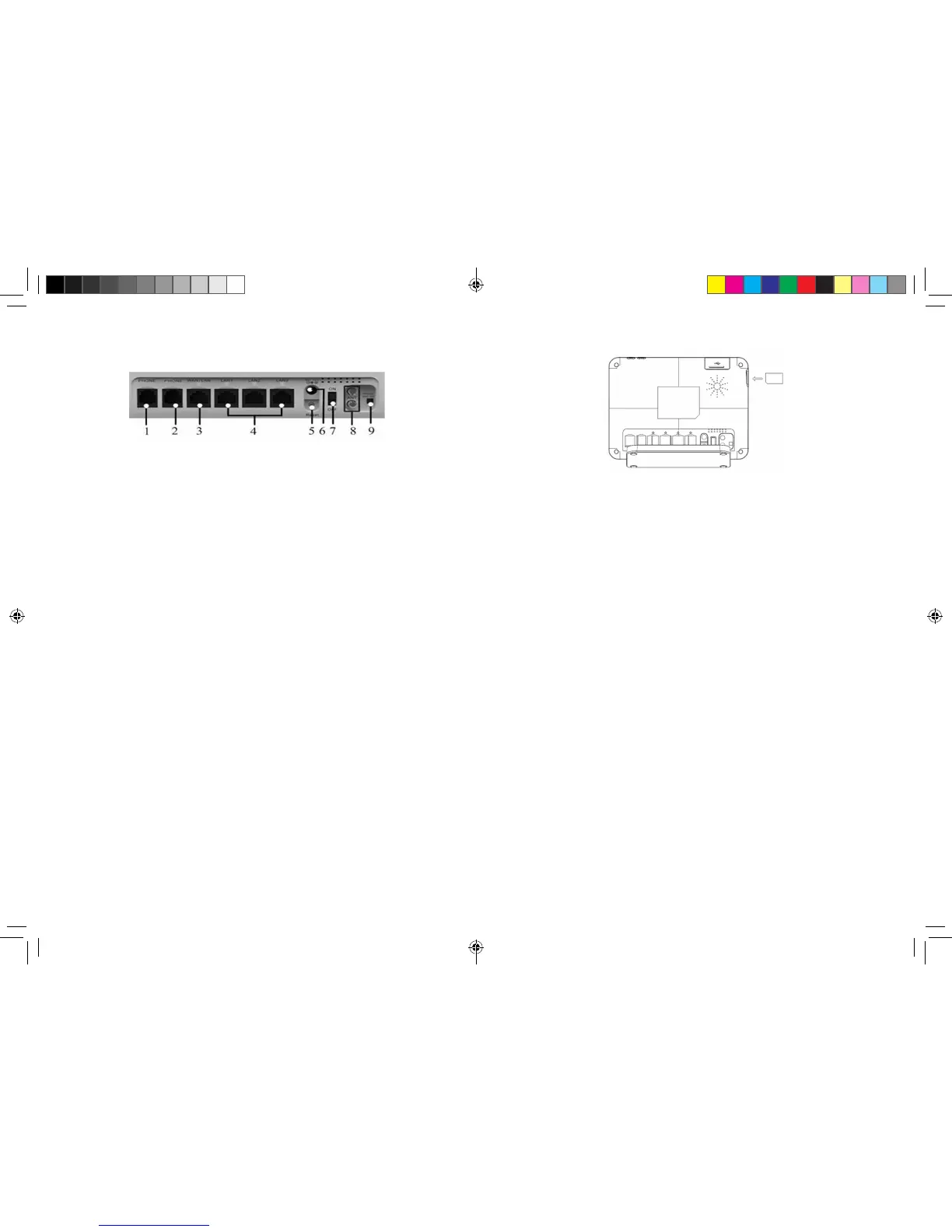

Interface Description
1. PHONE: Standard RJ11 connector for telephone.
2. PHONE: Standard RJ11 connector for telephone.
3. WAN/LAN: Ethernet connections to the Internet or computer.
4. LAN1~LAN3: Ethernet connections to computer.
5. Reset: To restore factory default congurations after pressing for
more than 7 seconds.
6. POWER Socket: To power on the device or shut down the
power.
7. ON/OFF: Turn the router on or off.
8. ANT: Connect with the external antenna.
9. PRESS ANT ON: To switch between internal antenna and
external antenna modes
Press-down means use CPE’s internal antenna for LTE
signal, prompt-up means use external antenna. It’s in press-
down mode as default, only prompt up this button when you
connect to an external antenna.
Installation
Inserting (U)SIM Card
Open the protect cover of (U)SIM port Insert the (U)SIM card into
the (U)SIM port.
Note:
Please power off the router and remove the external power adapter
before removing or inserting the (U)SIM card. If not, the router or
(U)SIM card may be damaged.
About (U)SIM Card
Avoid handling the (U)SIM card unnecessarily. Hold the card by the
edges to prevent static damage. Keep the (U)SIM card away from
electrical and magnetic appliances.
If you cannot get service, make sure that:
• You are in an area which has network coverage.
• You are using the correct (U)SIM card.
Connecting to Phone
Connect the telephone to the PHONE interface with a phone
cable(RJ11).
Connecting to Computer
Connect your computer to the LAN interface with an Ethernet cable
(RJ45).
Notes:
The router will adapt the Ethernet cable style (crossover or straight)
automatically.
