ZXR10 2600 Product Description
8 © 2009 ZTE Corporation. All rights reserved. ZTE Confidential Proprietary

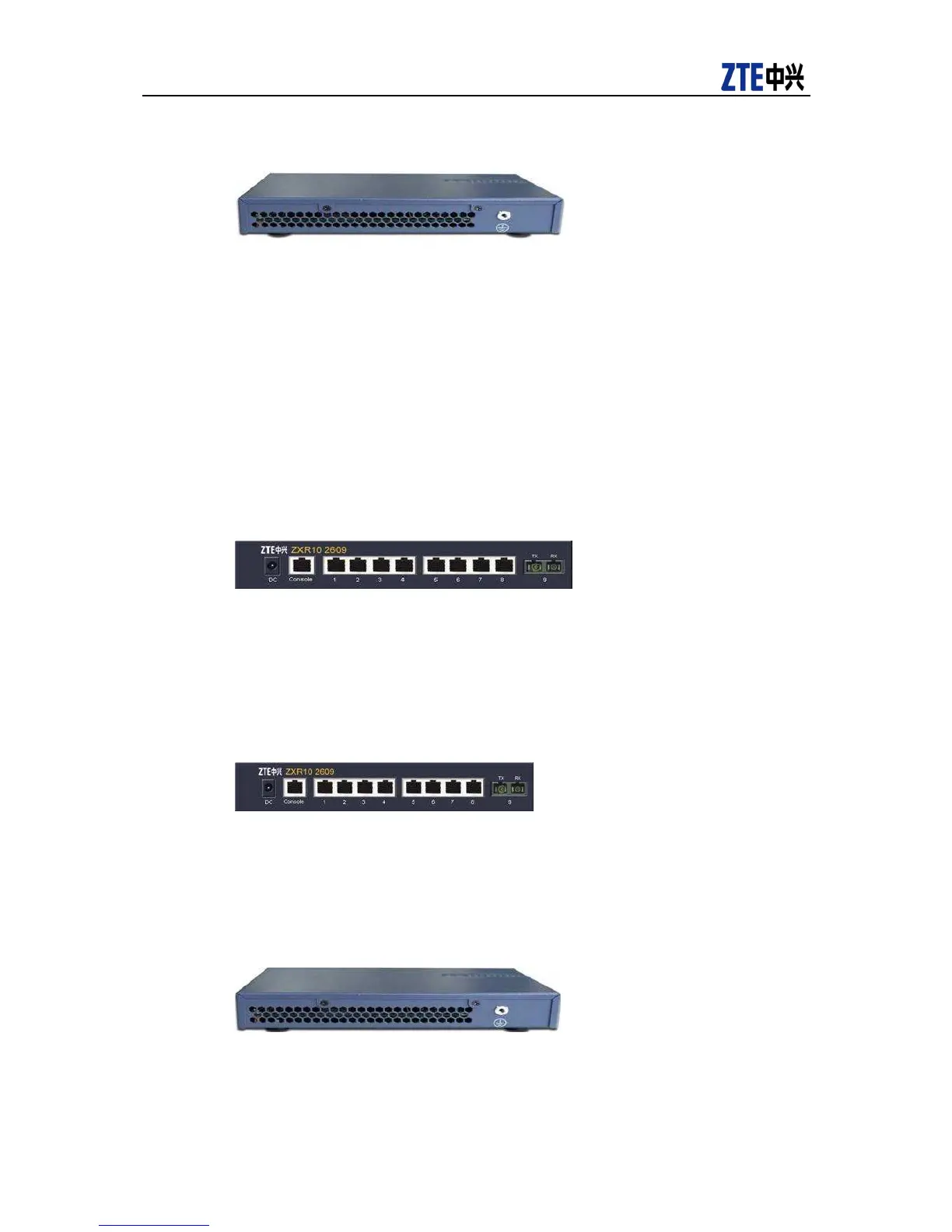

Figure 4 Back Panel of the ZXR10 2609
l
4.1.1.2 2609-FU
• Subrack
A subrack is the supporting body of boards and the equipment. Indicators are
installed on the top cover to indicate the power supply status of the switch and the
working state of interfaces. Each fast Ethernet port has one indicator. The PWR
indicator indicates the power supply status, the RUN indicator indicates the working
state of the switch, and the other indicators (LNK/ACT) indicate the link status of the
corresponding port. Ошибка! Источник ссылки не найден. shows the outer
view of a subrack.
Figure 5 Outer View of Sub-rack of the ZXR10 2609-FU
• Front panel
Ошибка! Источник ссылки не найден. shows the structure of a front panel,
which consists of one Console port, eight 10/100M electrical ports, one FE optical
ports and one power socket.
Figure 6 Front Panel of the ZXR10 2609-FU
• Back panel
The back panel only provides ports for system grounding, as shown in Ошибка!
Источник ссылки не найден..
Figure 7 Back Panel of the ZXR10 2609-FU

Zte ZXR10 2600 Specifications

General

Model	ZXR10 2600
Category	Network Router
Operating Humidity	10% to 90% non-condensing
Storage Humidity	5% to 95% non-condensing
Operating Temperature	0°C to 45°C
Storage Temperature	-40°C to 70°C
