11.11 Fitting the insulation

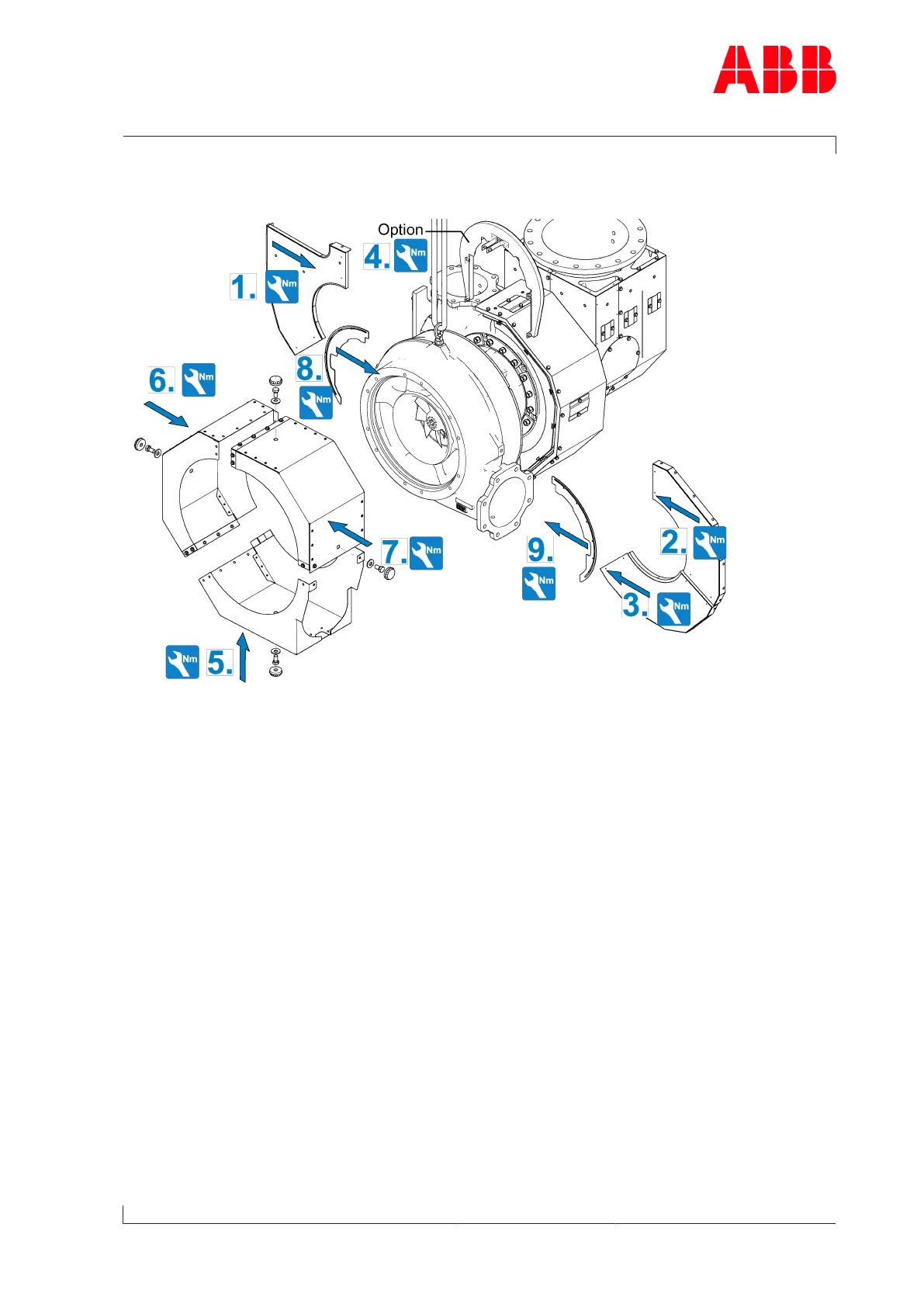

Fig.102: Fitting the insulation
u Fit the insulation according to the illustration. Observe tightening torques (see Table of
tightening torques →93).
