Operation Manual / A150-M56/66/57/67 - A155-M..
18 Spare parts / 18.3 Spare part – Illustrations
© Copyright 2021 ABB. All rights reserved.
HZTL4032_EN
Rev.Q
January 2021

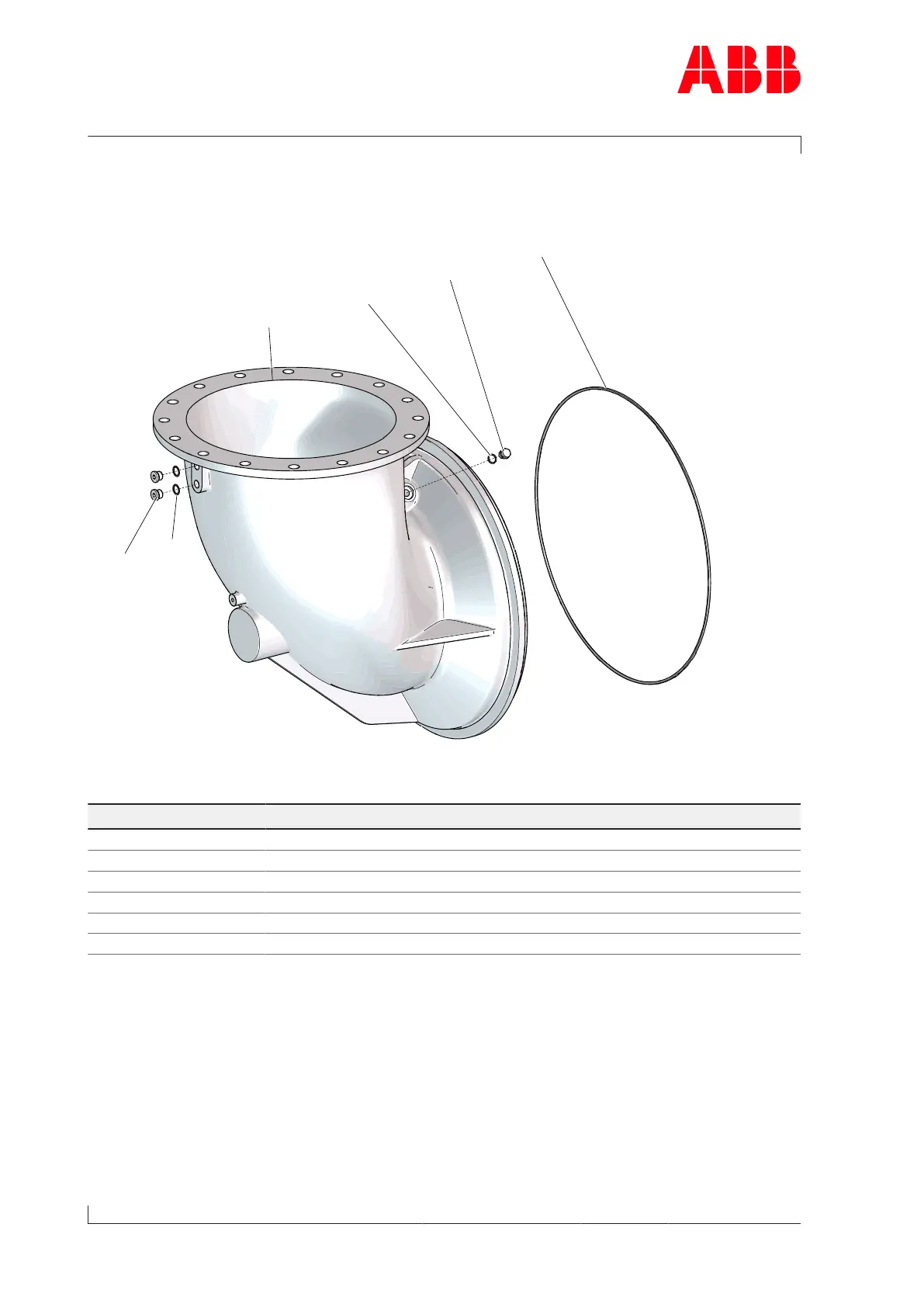

Air suction branch radial
82010*
82000
82006
82008
82007
82005
* = Av
ailable within the spare part set
HZTL443315 Mod. B
Part no.
Designation
82000
Air suction branch
82005
Screw plug
82006
Gasket
82007
Screw plug
82008
Gasket
82010*
O-ring
Table89: Spare parts - Air suction branch radial
Page 186 / 194
187
189
Table of Contents
