Physical Layer Section 1 Introduction
14 9ARD000015-600
impedance driven) levels are 1.5 volts for CAN_L and 3.5 volts for CAN_H (2 volts
differential). Figure 3 shows the CAN_H and CAN_L signal levels.
Physical Layer
The Physical Layer consists of the transceiver, connector, mis-wiring protection
circuitry, regulator, and optional optical isolation. Figure 4 shows the block diagram
of the Physical Layer. In this section, the transceiver, mis-wiring protection (MWP),
and optional isolation are explained. For more information on connectors, refer to
Connectors on page 46. For more information on regulators, refer to Power Supply
on page 54.

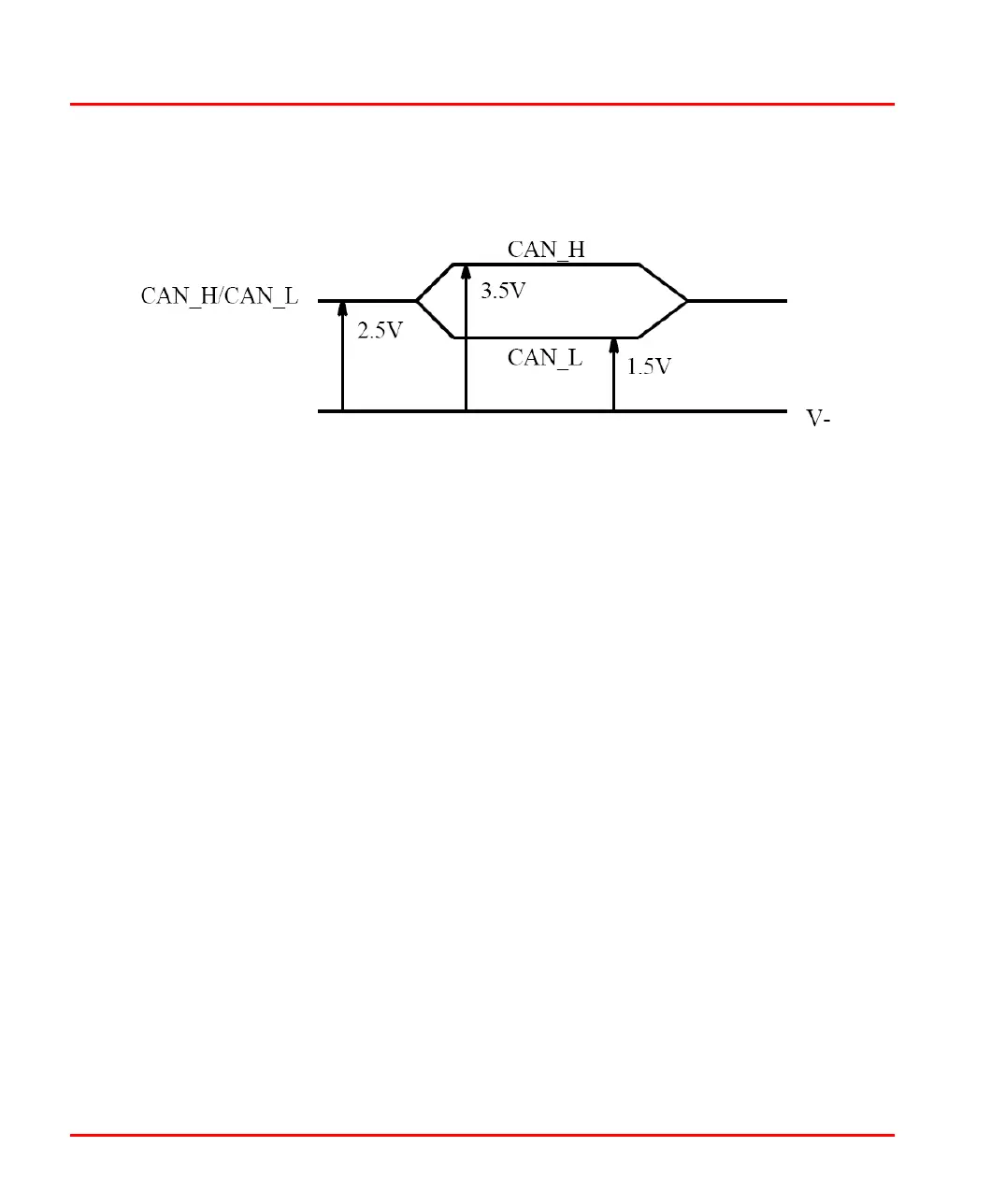

Figure 3. CAN_H and CAN_L Signal Levels
