ABB ACS800-01-0120-3 User Manual

Maintenance
101
Fan replacement (R6)
Note: In -0205-3 and 0255-5 units, access the fan through the opening in the
support frame of the cable connection box.

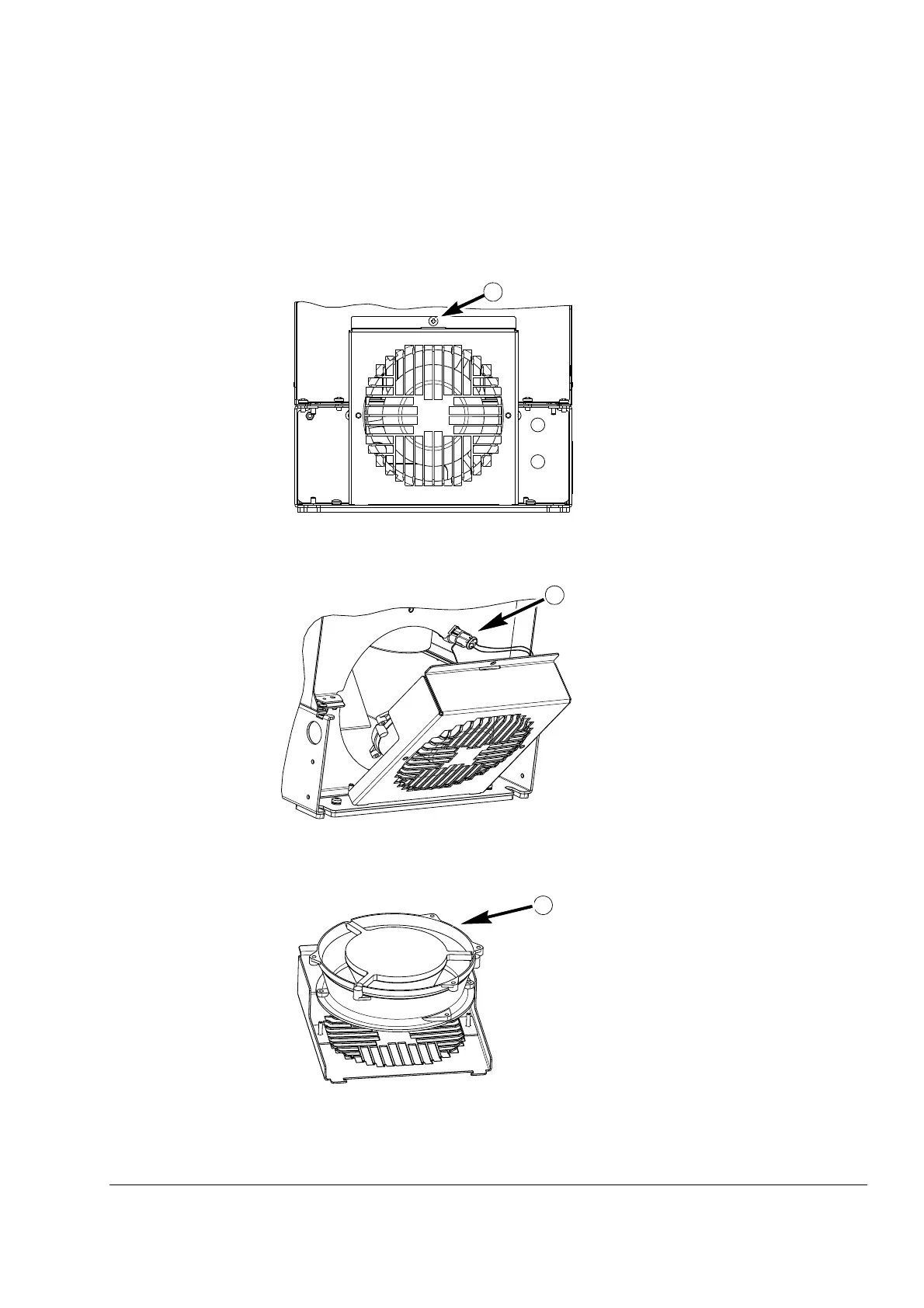

1. Remove the screw attaching the fan casing and let the casing lean down against
the limiters.
2. Slide out the cable connector and disconnect it.
3. Take off the casing and replace the fan onto the casing’s pins.
4. Reinstall the casing in reverse order.
1
2
3
