Mechanical installation
34

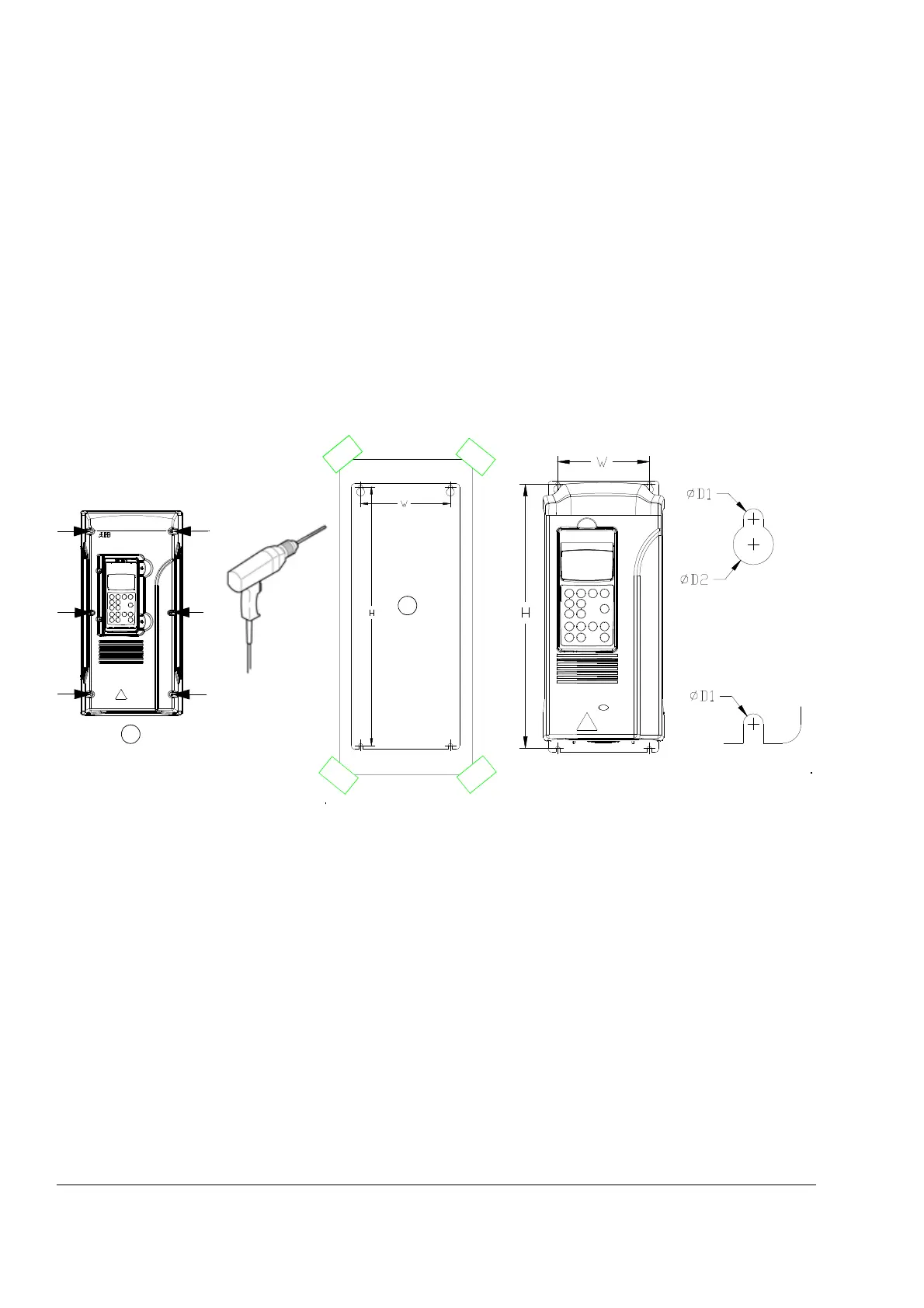

Mounting the drive on the wall
Units without vibration dampers
1. Mark the locations for the four holes. The mounting points are shown in
Dimensional drawings. In frame sizes R2 to R5 (IP21, UL type 1), use the
mounting template cut from the package.
2. Fix the screws or bolts to the marked locations.
3. IP55 (UL type 12) units: Remove the front cover by undoing the fixing screws.
4. Position the drive onto the screws on the wall. Note: Lift the drive by its chassis
(R6: by its lifting holes), not by its cover.
5. Tighten the screws in the wall securely.
IP55 (UL type 12) marine applications (+C132) of frame sizes R4 to R6
See ACS800-01/U1 Marine Supplement [3AFE68291275 (English)].
Units with vibration dampers (+C131)
See ACS800-01/U1 Vibration Damper Installation Guide [3AFE68295351 (English)].
UL 12 units
Install the hood delivered with the drive 50 mm (2.0 in.) above the top of unit.
