AquaMaster 3 FET200
Electromagnetic flowmeter Transmitter 2 Mechanical Installation
8 OI/FET200–EN Rev. I
2.3 Dimensions
2.3.1 Remote- and Close-Coupled Transmitter
Dimensions in mm (in.)

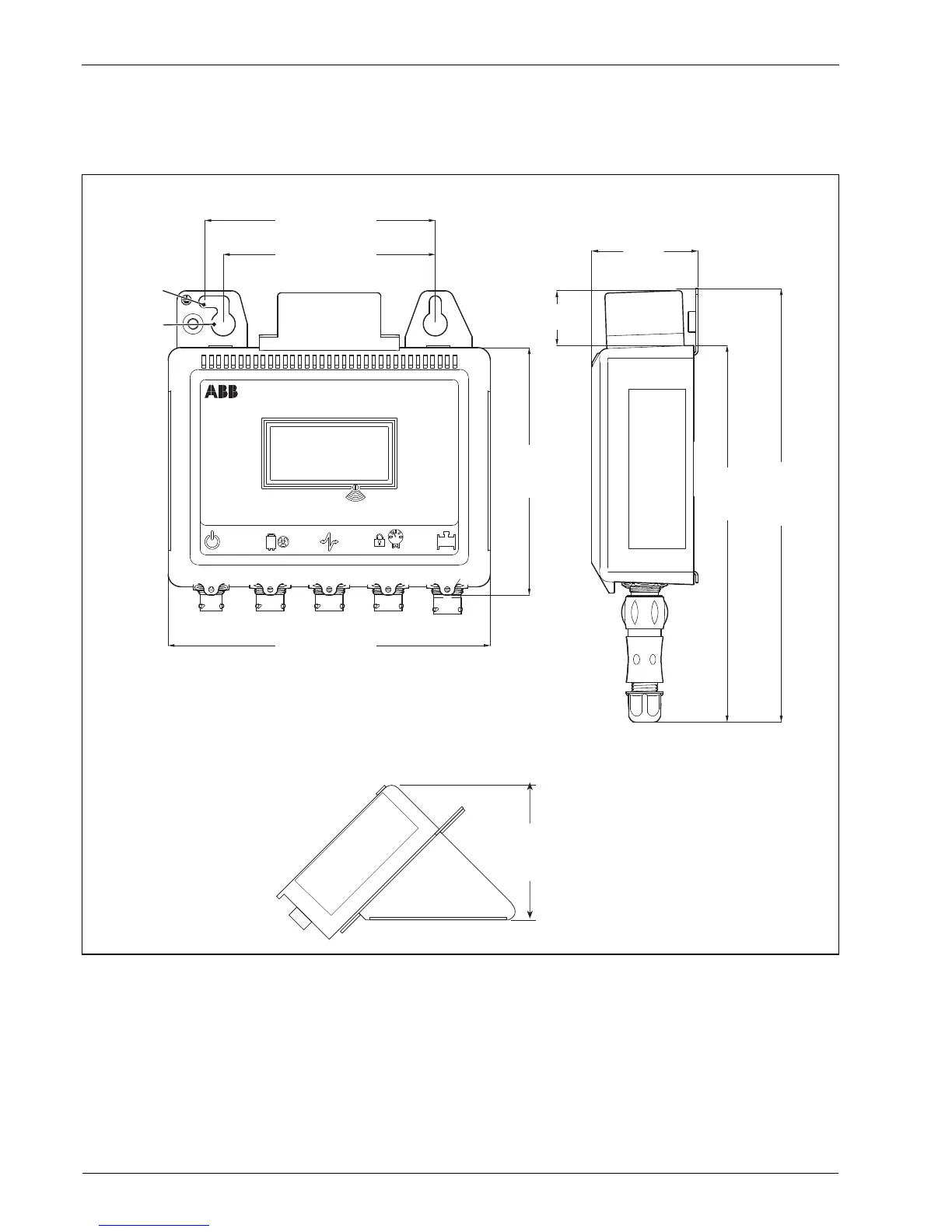

Fig. 2.10 AquaMaster3 Dimensions
AquaMaster 3
Ø 6.5
(0.25)
Ø13
(0.50)
115 (4.50)
177 (7.0)
50
(2.0)
185
(7.3)
28 (1.1)
136
(5.4)
Remote-mounted
Transmitter
Close-coupled
Transmi tter
105
(4.1)
280 (11.0)
with
Connectors
125 (5.0)
