AquaMaster 3 FET200
Electromagnetic flowmeter Transmitter 2 Mechanical Installation
12 OI/FET200–EN Rev. I
2.4.2 Connecting a Remote Antenna
Referring to Fig. 2.16:
1. Remove the cover
A from the socket on top of the transmitter.
2. Gently push the antenna plug
B into the socket, then twist the screw ring clockwise until locked.
2.4.3 Installing a SIM Card
Referring to Fig. 2.17:
1. Remove the transmitter from its mounting point.
2. Remove 4 x 4 mm Hex fixing screws
A and remove the transmitter.
3. Use water to wash off any loose dirt from the case and dry the area around the SIM card cover.
4. On the back of the transmitter, unscrew and remove cover
B protecting SIM card holder C.
5. If the SIM card is being changed, ensure the GSM Engine is off before removing the card by reading
>368 (see COI/FET2XX–EN) and ensuring the status reported is Off.
6. Carefully lift the right-hand edge of holder
C outwards.

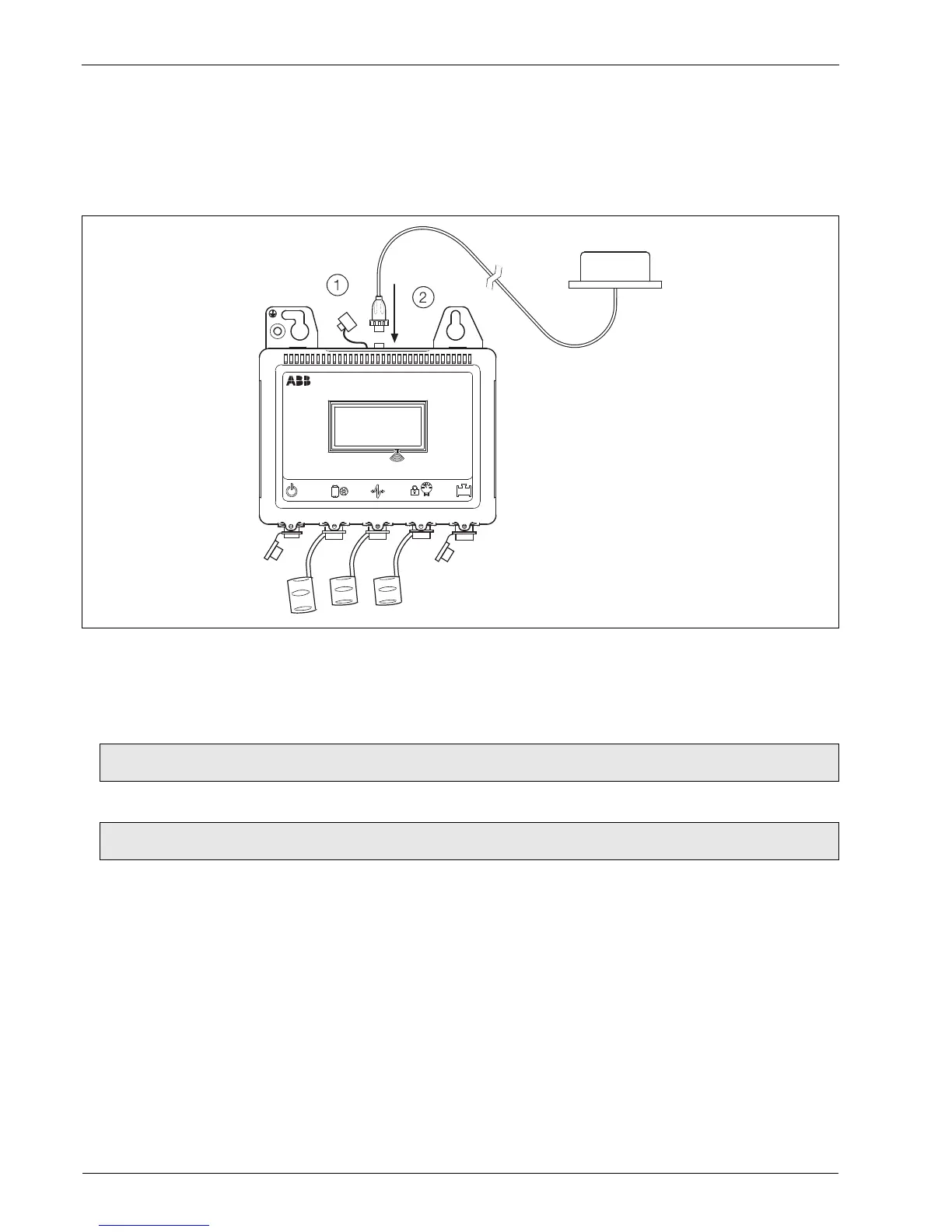

Fig. 2.16 Connecting a Remote Antenna
Note. Step 1 is applicable only to remote- and close-coupled transmitters.
Note. Step 2 is applicable only to integral transmitters.
