ABB AquaMaster 3 FET200 User Manual

AquaMaster 3 FET200
Electromagnetic flowmeter Transmitter 3 Electrical Installation
18 OI/FET200–EN Rev. I
3.3.3 Input / Output Connections

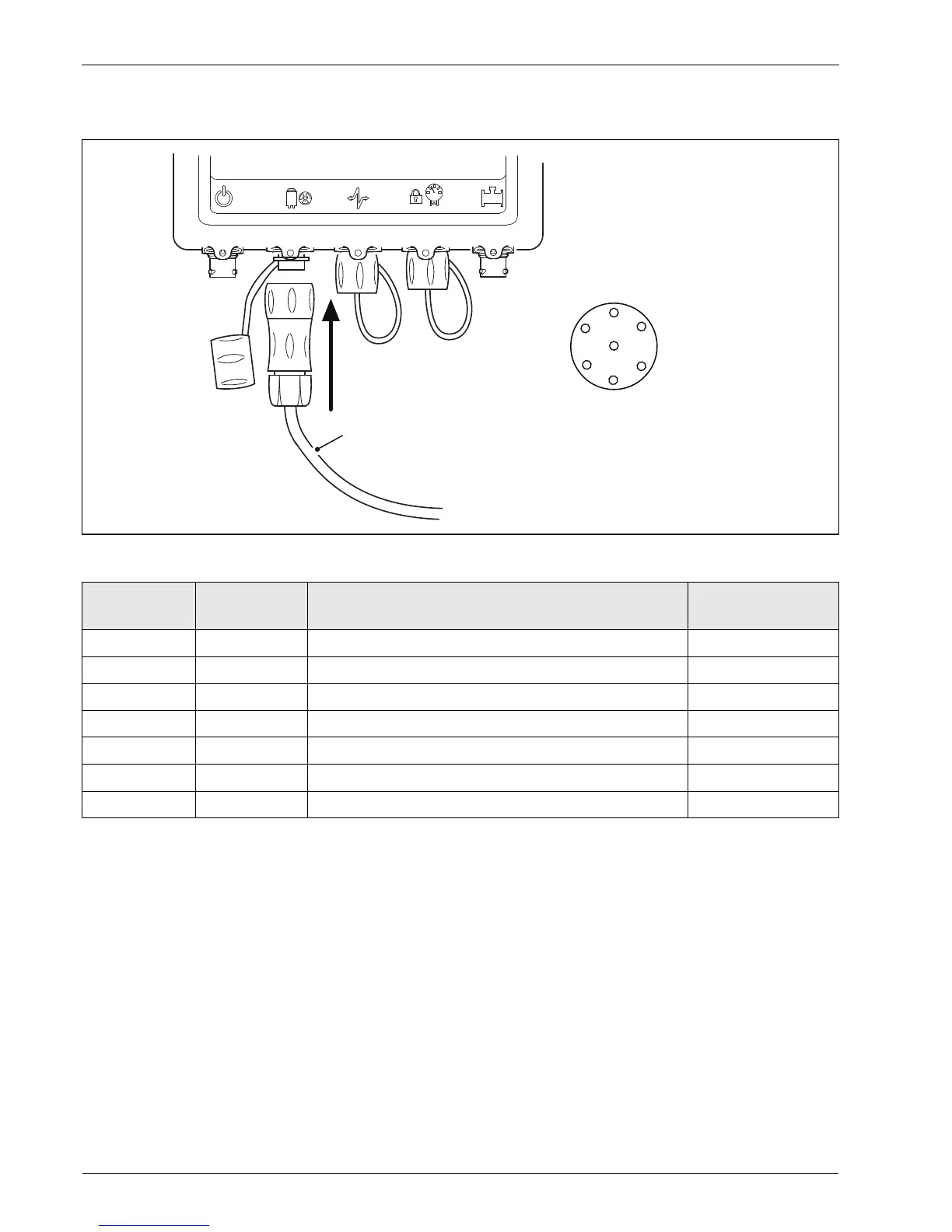

Fig. 3.8 Input / Output Connectons
Pin Signal Function
Color
(Output Cable)
A Not used Not used Violet
B DATA ScanReader Data Blue
C O/P COM Output Common Yellow
D O/P2 Reverse Pulses or Direction Indicator Red
EO/P3Alarm Output Brown
F O/P1 Forward Pulses or Forward & Reverse Pulses Orange
G 0V Scanreader 0V Screen
Table 3.1 Connector Input / Output Connections
WABC 2010
A
B
C
D
E
F
G
Pin View
I/O
Socket
only
