3.5.2 External Battery Power Supply
AquaMaster3 can be supplied with an optional battery pack.
3.5.3 Mains Power Supply
Mains power requirements:
 110 to 240 V AC, 50 / 60 Hz @ <3 VA
 Cable length 3 m (9.8 ft.)
 Protected by a fused isolator, rating – mains, anti-surge 3 A.
Make connections as shown in Fig. 3.19.
Note. Before making connections, check the Data label to confirm power supply requirements.
AquaMaster3 can be powered from Explorer-style battery packs fitted with the MIL plastic style plug.
The Explorer battery capacity is
6
/7 of published life.

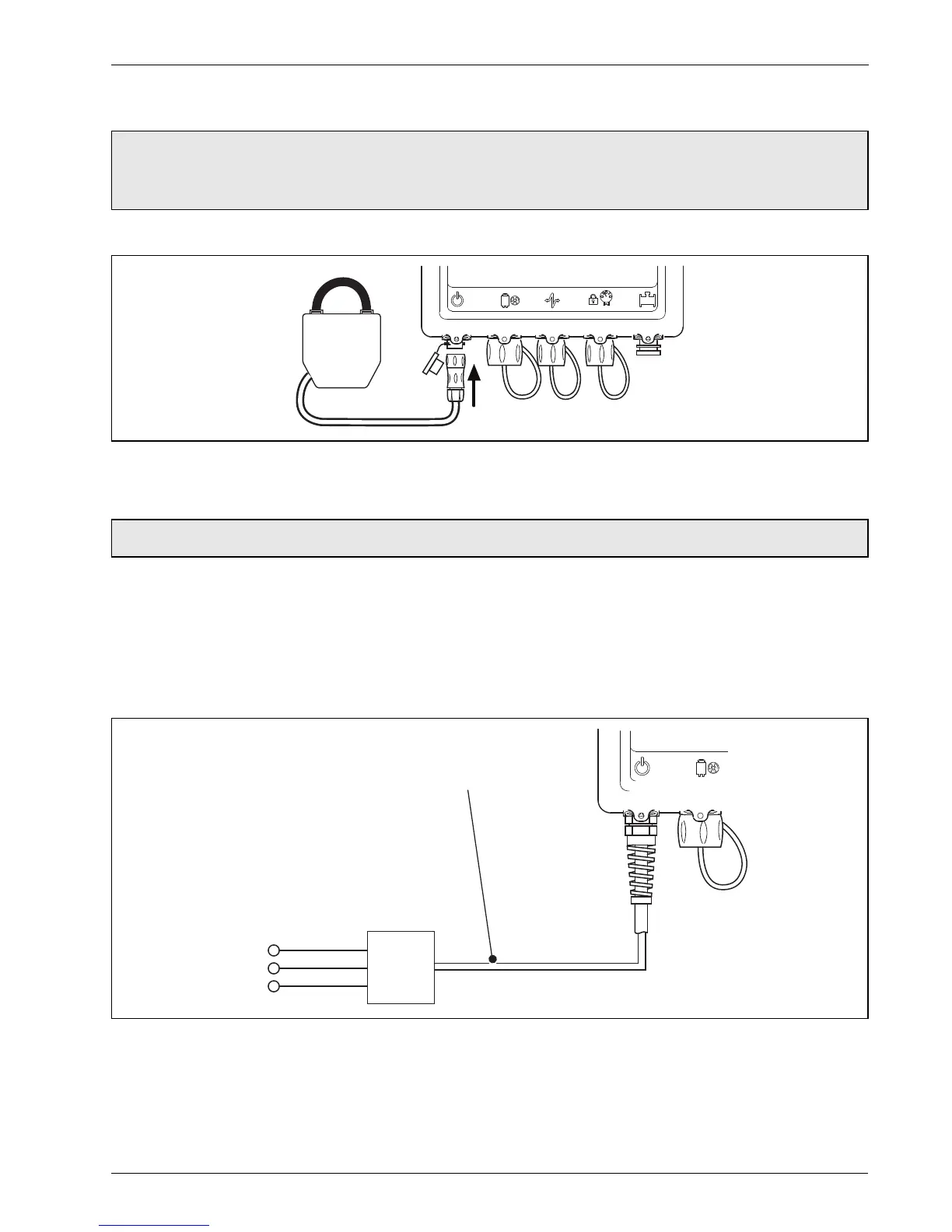

Fig. 3.18 Connecting a Battery Supply
Note. Before making connections, check the Data label to confirm power supply requirements.
Fig. 3.19 Connecting a Mains Power Supply
Isolator /
Fuse
110 to 240 V AC
50 / 60 Hz
Rating – mains, anti-surge, 3 A
Color Connection
Green / Yellow Earth
Brown L1 / L
Blue L2 / N
