5.5 Access to Configuration Levels
A security system is used to prevent tampering with the program parameters by utilizing a Tune password and a configuration
password. A Tune password can be assigned to controller faceplates giving access to that faceplates controller settings.
A Configuration password gives access to all controller settings and programming pages – refer to the
Programming Manual.

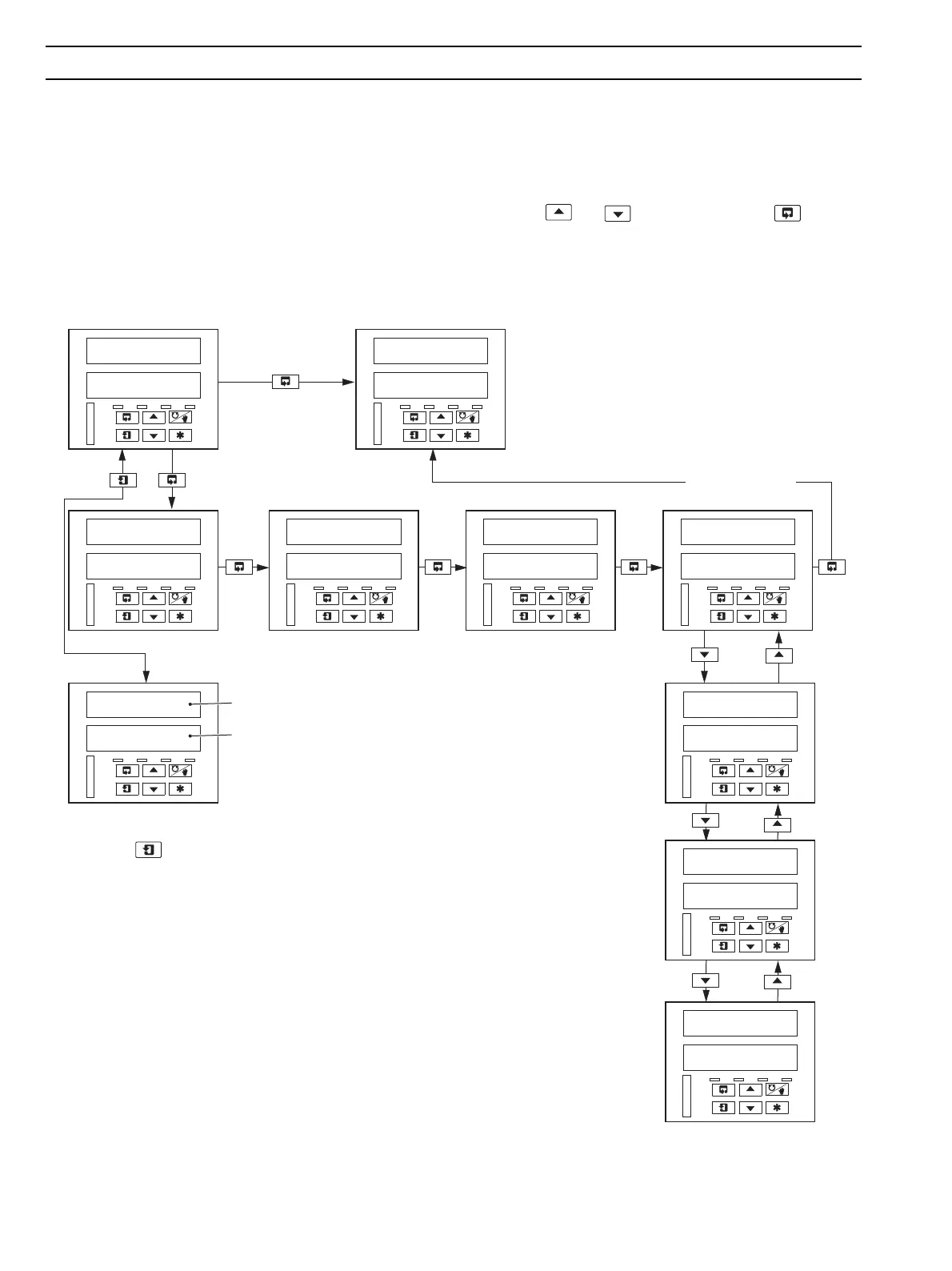

5.5.1 Security Code Page
Set the security code to the correct Tune or Configuration password using the and switches and use the switch to
advance to the controller settings or other programming levels (
OPERATOR, BASIC CONFIGURATION, CONTROL CONFIGURATION
and ADVANCED CONFIGURATION).
The passwords are programmed in the Access Page in the BASIC CONFIGURATION LEVEL.
Incorrect Password
Correct Tune or
Configuration
Password
AL
RMT
AT
MAN
AL
RMT
AT
MAN
AL
RMT
AT
MAN
AL
RMT
AT
MAN
AL
RMT
AT
MAN
AL
RMT
AT
MAN
BASIC
AL
RMT
AT
MAN
AUtO
tUNE
AL
RMT
AT
MAN
AL
RMT
AT
MAN
OPrtOr
LEVEL
Configuration
Password
used
Tune Password
used
CONFIG
CONFIG
CONtrL
CONFIG
AdUNCd
PAGE
CONtrL
StAtES
PrOFLE
100
SECOdE
75.5
100.0
First frame of
Operating Page
AL
RMT
AT
MAN
ISS _
2001
EPROM Version
EPROM Issue Number
…5 CONTROL OPERATION
EPROM Identification
Use the switch to advance to the EPROM
Identification Frame. The upper display shows the
EPROM version, e.g. 2001 and the lower display
shows the EPROM issue number.
