ABB COMMANDER 1900 Series User Manual

19

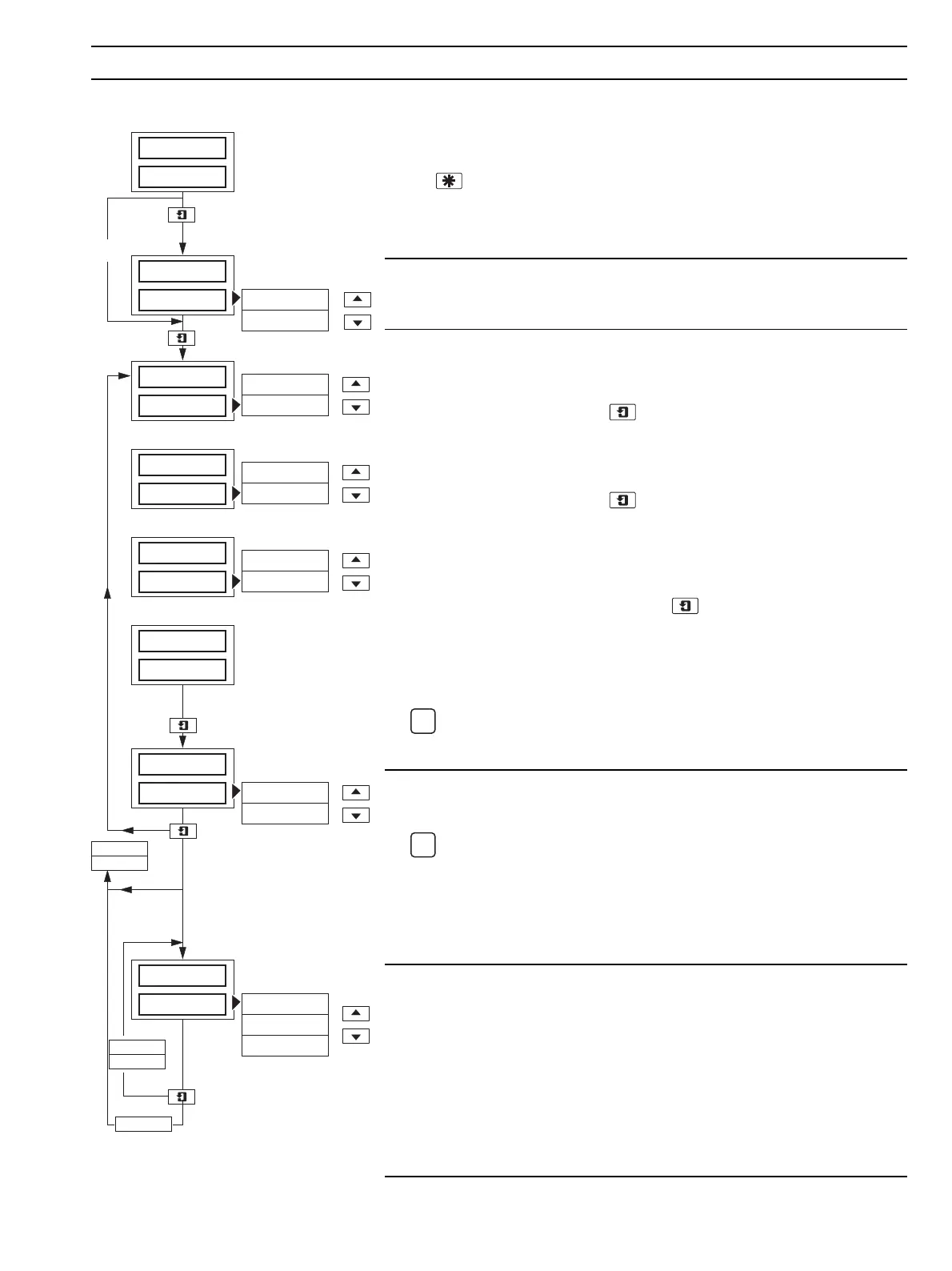

5.6 Profile States Page
SKIP–b
PrOFLE
ProGrM
SEG xx
SKIP–F
rESEt
SKIP–F
OFF
SKIP–N
10
1
StAtES
1
YES
NO
YES
rS–End
rS–Hld
rS–run
rS–OFF
StAtES
ProFLE
rUN
or
or
or
YES
NO (if program running)
SKIP–N
ON
HOLd
rUN
NO (if
program not
running)
SKIP–b
SKIP–F
Page Header – Profile States
The
switch can be programmed to jump to this frame (Set Up Function Keys
Page, ADVANCED CONFIGURATION LEVEL). If the switch is used, the display
reverts automatically to the first frame of the
Operating Page when leaving this
page.
Program Select
Select the program to be run (1 to 10).
Profile Status (Ramp Soak)
rS–OFF/ON – (Ramp Soak Run/Off) select rUN to start selected
program.
Press the switch to activate.
rS–rUN/HOLd – (Ramp Soak Run/Hold) select HOLd to stop selected
program at current level.
Press the switch to activate.
rS–Hld – (Ramp Soak Hold) program is in the hold state, either as
a result of an operator hold, the controller is in manual or
the holdback facility (guaranteed ramp/soak). Select run
to continue running the profile if operator has stopped
program. Press the switch to activate.
rS–HLd/ENd – (Run/Hold End) the profile is completed, and the digital
input assigned to the profile function is still in the 'Run'
state. This frame is only displayed if a digital input is used
to run and hold the profile.
✶
Note. If a digital input is assigned to the run/hold function, the user is
prevented from overriding the digital signal
Profile Reset
If the profile is running and
YES is selected, the profile returns to the beginning
of the program and continues to run.
✶
Note. To end a program, select HOLd at the Profile Status frame (see
above) and then select
YES at this frame. The local set point value takes the
value of the first level of the selected program.
Skip Segment
The segment number (or
End) is shown in the upper display.
SKIP–F (skip forward) – abandon current segment and start next segment.
SKIP–N (do not skip) – maintain control using current segment.
SKIP–b (skip back) – return to beginning of current segment.
For multiple skip operations, the last selection (For b) is displayed for 3
seconds before reverting to
SKIP–N..
5 CONTROL OPERATION…
