10 OI/DHH805-EN Rev. D | Handheld communicator Model DHH805-A
4 First steps
10. Continue to follow instructions on the computer screen
until the activation screen appears.
11. To activate the DHH805 select “Via PC-Tool” or
“Manually” in the activation menu on the display.
The selection of “Printed activation request form” allows user to
fill in a dedicated information form. After accepting “ABB
License Agreement” and “Remote Data Acquisition and
Personal Data Collection” agreements (see paragraph 4.5
“Authorizations”), the PC-Tool generates a printable file which
should be signed and returned via fax or e-mail (fax numbers
and e-mail addresses available in Help > PC-Tool Help >
Contact us).
By clicking on “Phone assisted activation instructions” a
pop-up window will show four dedicated telephone numbers: a
specialist will help users in activating the DHH805-A.
On-line activation
If the internet connection is in place, the activation panel (see
figure 6) is displayed.

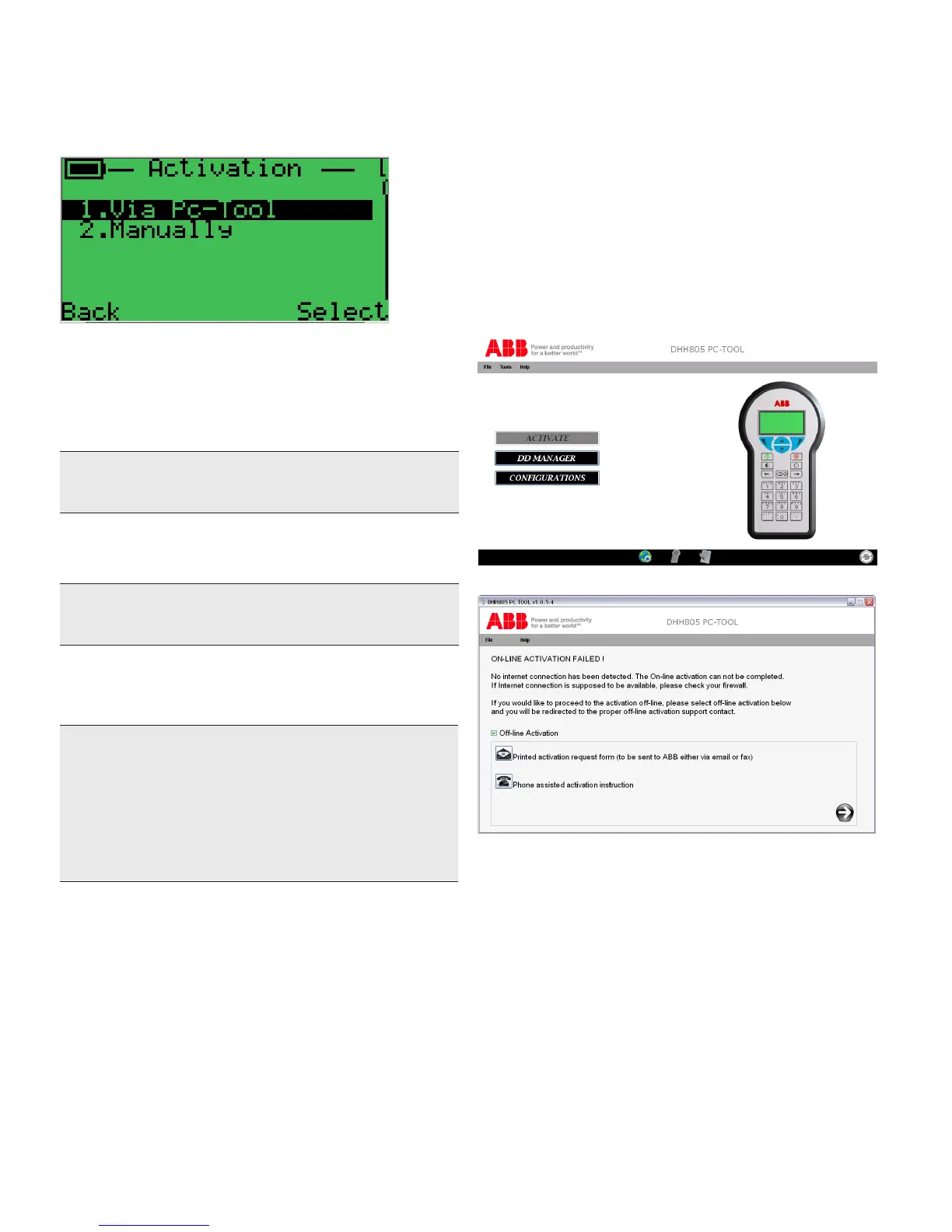

Figure 5: Off-line activation warning message
Figure 4: DHH805-A PC-Tool - Activation button
Figure 3: Activation selection possibilities
If you choose “Via PC-Tool” Click on File > Home on the PC-Tool
top bar on your computer software. This should “enable” the
activation button. If not, Click File>Home>Re-Start in the top bar
menu. Once the activation button appears, follow the instructions
on the computer screen.
Note. When the DHH805 is synchronizing, it will display the
message “synchronizing.” DHH805 will indicate “Connected”
when it complete synchronizing.
If you choose “Manually” yyou must contact your designated ABB
product manager listed in the gray box below. They will need the
DHH805 tag.
Note. DHH805 tag can be found printed on the white cardboard
packing box or on the DHH805 screen under Activation >
Manually > DHH805 tag.
After you receive the activation code, enter it by the following:
Activation > Manually> Activation Code> Edit.
“Device activated succesfully!” will appear when it is complete.
Note. To perform the activation “Via PC-Tool” an internet
connection may be required. To activate DHH805 “Manually”
obtain an activation code by contacting ABB using the following
contact information
DHH805.Support@it.abb.com
You will require DHH805 tag (printed on the white cardboard
packing box or visible on the DHH805 under Activation > Manually
> DHH805 tag)
11. After activation, the DHH805 is ready to communicate
with your HART
®
devices.
In order to connect the Hand-Held Terminal to the PC to manage
DD files or configuration, it is necessary to synchronize them. To
do this operation, select “Settings” on DHH805 main menu and
confirm with the right navigation key “Select”. Scroll down to
“Listening”, confirm with the right navigation key “Select” and
refresh PC-Tool homepage clicking File > Home.
4.4 Activation procedure
4.4.1 Activation via PC-Tool
ABB DHH805-A can be easily activated via PC-Tool in two
different ways: off-line and on-line. Please proceed to your
preferred section.
Off-line activation
After connecting the DHH805-A to the PC-Tool as explained in the
previous paragraph, the PC-Tool installer will check for internet
connection availability. If no internet connections are available, you
can click the “Activation” button that appears on PC-Tool
homepage. The user will see a warning message (see figure 5) for
starting the offline activation procedure. By flagging the “Off-line
Activation” box, the user can click on “Printed activation request
form” or follow the “Phone assisted activation instructions”.
