3 DHH805-A overview
Banana plug for
transmitter connection
USB 2.0
Battery charger connection
3 DHH805-A overview
3.1 DHH805-A components overview
DHH805-A is a full function HART
®
Communicator supporting Universal, Common Practice and Device Specific commands for
commissioning, configuration and maintenance operations. HART
®
field devices can be configured, polled, and trimmed using the
DHH805-A with HART
®
communications.

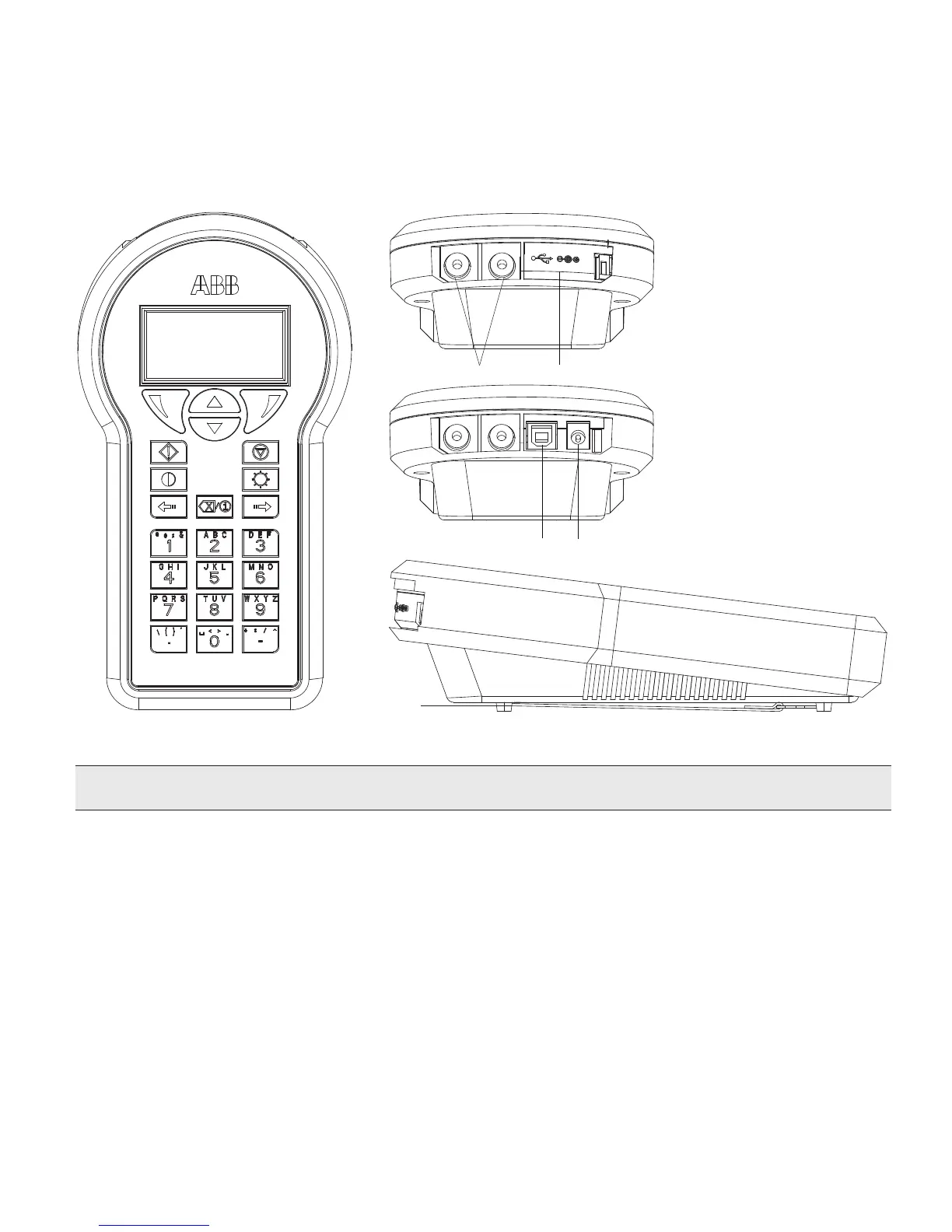

Figure 1: DHH805-A overview
1
Important. For Intrinsically Safe applications, refer to the Hazardous Area Use section of this manual. For specific details on use of approved
DHH805-A and applicable restrictions refer to Intrinsic Safety Control Drawings in Section 9 of this manual.
1 HART
®
connectors | 2 Protective plastic cover | 3 USB port | 4 Power supply unit connection | 5 Hand strap
Top view: connection ports with
protective plastic cover
Top view: connection ports without
protective plastic cover
2
3
4
5
