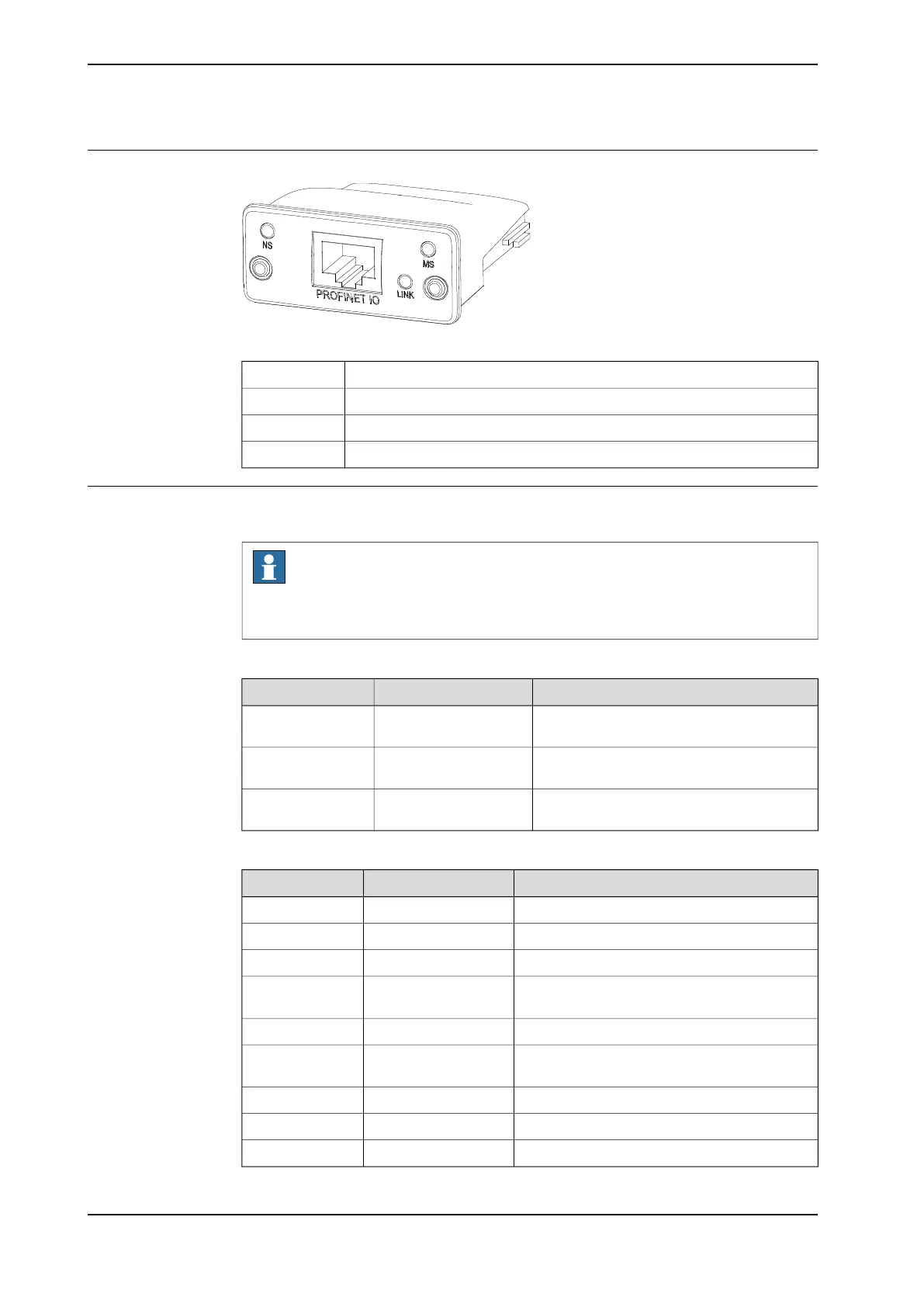

Illustration, PROFINET anybus device DSQC 688
xx0800000136
Network status LEDNS
Module status LEDMS
Link/ActivityLINK
RJ-45 connectorPROFINET IO
LEDs
This section describes the LEDs of the PROFINET anybus device.
Note
A test sequence is performed on the network status LED and on the module
status LED during start of the PROFINET anybus device.
Network status LED
CommentsDescriptionLED status
• No power
• No connection with a master
OfflineOFF
• Connection with master established
• Master in RUN state
Online (RUN)Green
• Connection with master established
• Master in STOP state
Online (STOP)Green, flashing
Module status LED
CommentDescriptionLED status
Module not configured or no power.Not initializedOFF
Module is initialized.Normal operationGREEN
Diagnostic event(s) present.Diagnostic event(s)GREEN, 1 flash
Used by external configuration tools to identify
the node on the network.
BlinkGREEN, 2 flashes
Module in exception state.Exception errorRED
Expected Identification differs from real identi-
fication.
Configuration errorRED, 1 flash
IP address not set.IP address errorRED, 2 flashes
Device (Station) name not set.Device name errorRED, 3 flashes
Module has encountered a major internal error.Internal errorRED, 4 flashes
Continues on next page
20 Application manual - PROFINET Anybus Device
3HAC050968-001 Revision: C
© Copyright 2008-2016 ABB. All rights reserved.
2 Hardware overview
2.1 Main computer DSQC1000
Continued
