ABB FDIO-01 User Manual

32 Technical data

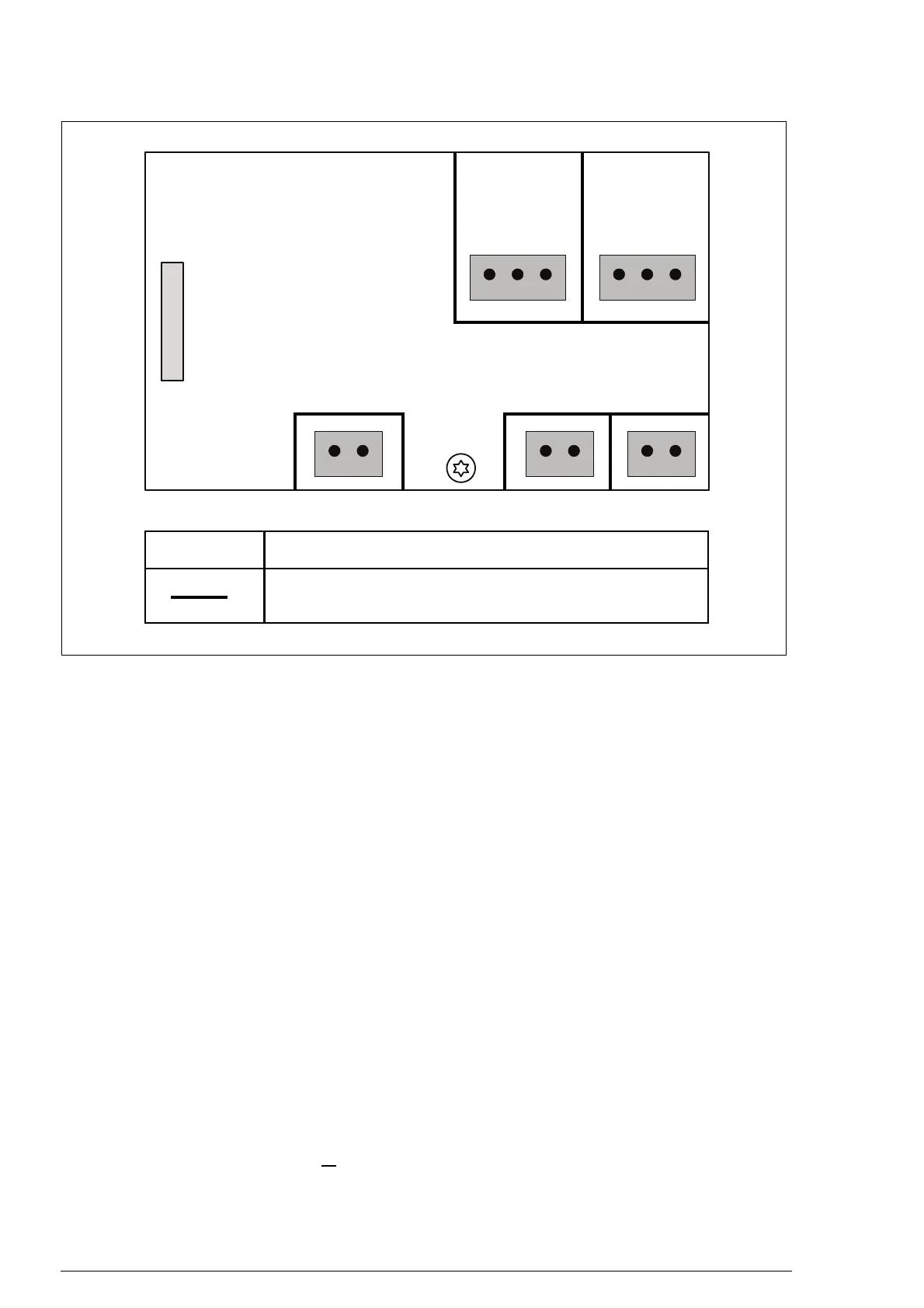

 Isolation areas
 Digital inputs (XDI1:1…2, XDI2:3…4, XDI3:5…6)
•
Connector pitch 5 mm, wire size max. 2.5 mm
2
• Torque: 0.5 N·m
• Input voltages: 24…250 V DC or 110…230 V AC
• Logic levels (DC): “0” < 5 V, “1” > 15 V
• Logic levels (AC) 110…230 V ±10%: “0” < 5 V
rms
, “1” > 20 V
rms
• Input currents: 10 mA at 24 V DC, 3 mA at 230 V AC
• Filtering times, selectable for all channels:
10 ms (default),1 ms
• Inputs isolated from each other, the relay outputs, power
supply and ground (earth)
• Varistor protected (250 V)
• Insulation strength: > 4kV
Symbol Description
Basic insulation (IEC 61800-5-1:2007)
