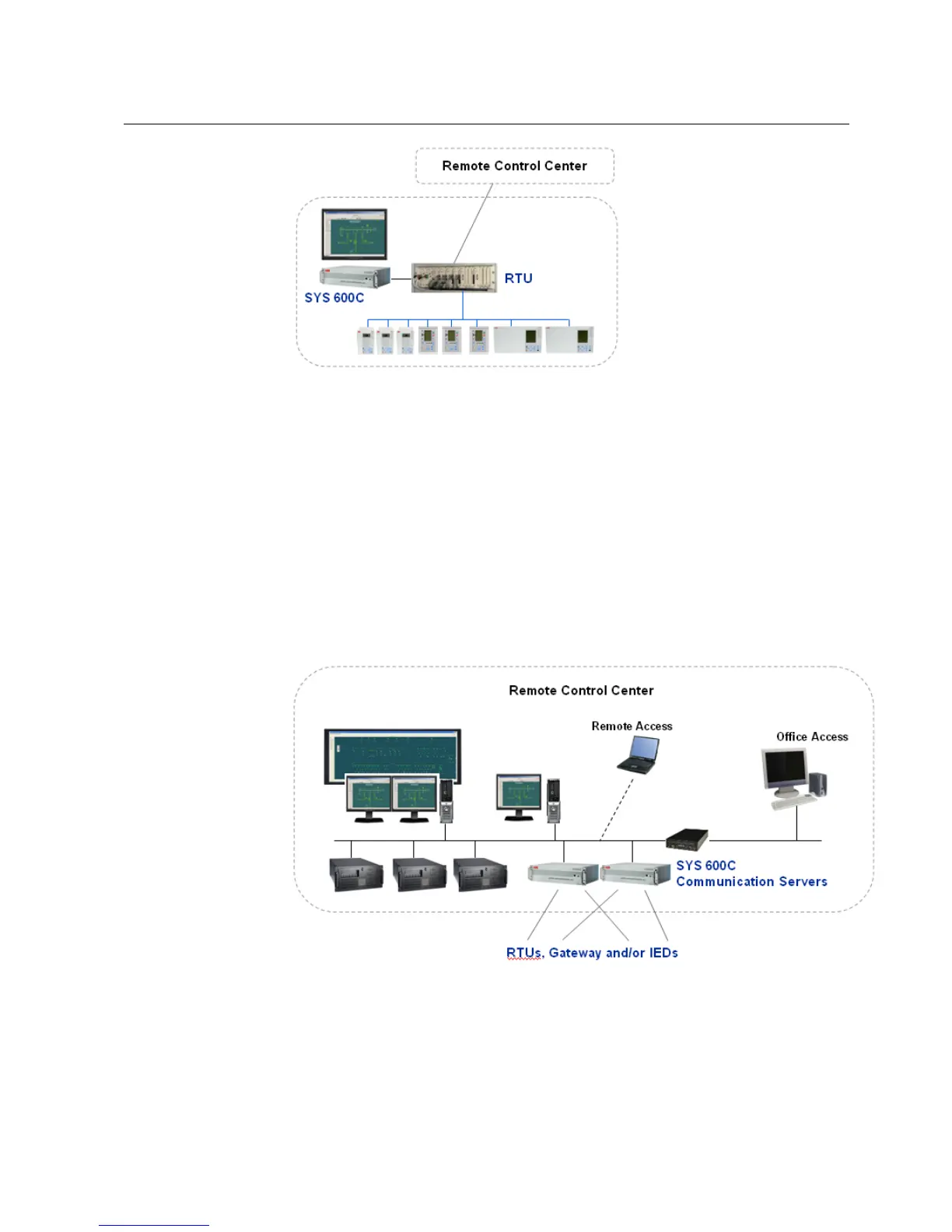

Figure 4.3-4 SYS 600C as Control System HSI for RTU
SYS 600C as Communication Server4.4.
SYS 600C can function as a powerful Communication Server in medium and large
Remote Control Center configurations as well as in large Substation Automation
applications.
SYS 600C with its large number of serial communication ports and LAN ports in com-
bination with the solid-state technology offers an excellent Communication Server
solution. The Communication Server solution is offered and available as a part of larger
SYS 600 or SYS 600C configurations as shown in Figure 4.4-1 and Figure 4.4-2.
Figure 4.4-1 SYS 600C as Communication Server in a Remote Control Center system
23
SYS 600C 1.92
MicroSCADA Pro
1MRS756804
Product Guide
